FS852STIDP | Faucet for Restrooms — Fontana Touchless

FS852 Series · Touchless · AC/DC · Restroom-Ready

FS852STIDP — Faucet for Restrooms (Touchless)

A contractor-friendly, infrared-activated faucet for public restrooms. Built for high traffic with AC/DC power, durable metal construction, and spec/BIM resources to speed up submittals.

Activation

Infrared (IR), adjustable range

Power

AC 110–240V / DC battery

Body

Brass or Stainless (by model)

Use

Commercial restrooms / ADA-ready

Why contractors & engineers pick FS852 for restrooms

Hands-free hygiene

IR sensor minimizes cross-contamination; auto shut-off helps prevent overflow events.

Flexible power

Hardwire AC for new builds or deploy DC batteries for retrofit schedules.

Spec-ready

Download spec sheets, BIM, and installation guides straight from official pages.

Finish options

Rose Gold & other finishes; match with touchless soap dispensers & sets.

Related restroom-focused options

Touchless Faucet + Soap Set (FS10225) · High-Traffic Faucet & Dispenser (FS18128) · FS852SRG-DP (Rose Gold)

Technical Specifications (representative FS852 series)

Type	Automatic / Touchless IR sensor faucet
Mount	Deck-mount single hole
Materials	Brass or Stainless (model dependent)
Power	AC 110–240V or DC 6V (4×AA)
Activation	IR sensor; adjustable range; auto shut-off
Typical Flow	0.5–1.5 GPM aerators (by model)
Docs	Spec sheet, BIM (where available), installation guide, warranty

Representative spec (FS852SRS): Detection 16–32 cm, AC/DC power, G1/2″ connections, see PDF.

BIM & Documents

Use these official pages & PDFs in your submittal package:

FS852SRG — Product FS852SRG-DP — Docs FS852SRS — Specs (PDF) Restroom Set — FS10225 High-Traffic Set — FS18128

Confirm transformer locations, power availability, and GPM with your MEP set.

Installation & Commissioning

Confirm single-hole deck cutout and thickness per template.
Install body; connect supplies; wire transformer or batteries.
Adjust IR range/time-out; set aerator flow as specified.
Leak/activation test; record model/serial for O&M.

IR Sensor

AC/DC

Commercial

Product Gallery

FS852SRG — Rose Gold

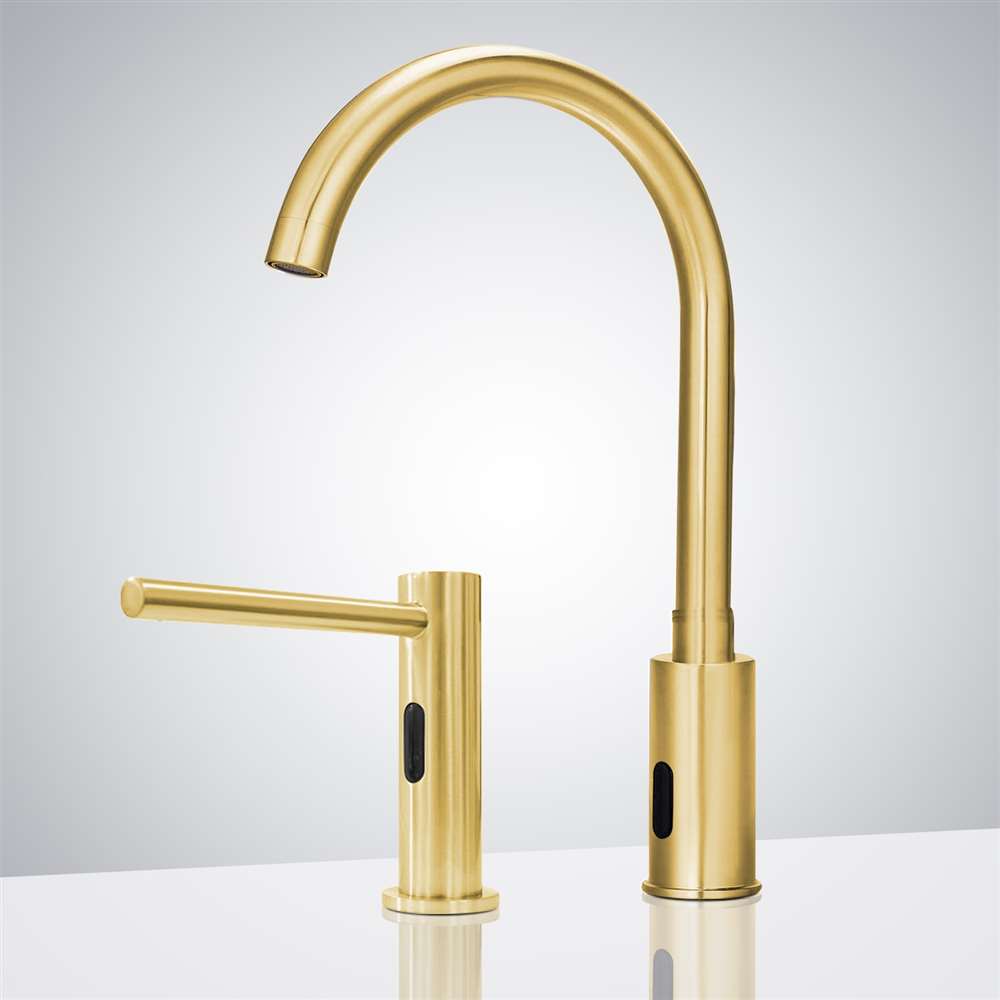

FB510-9070 — Brushed Gold Set

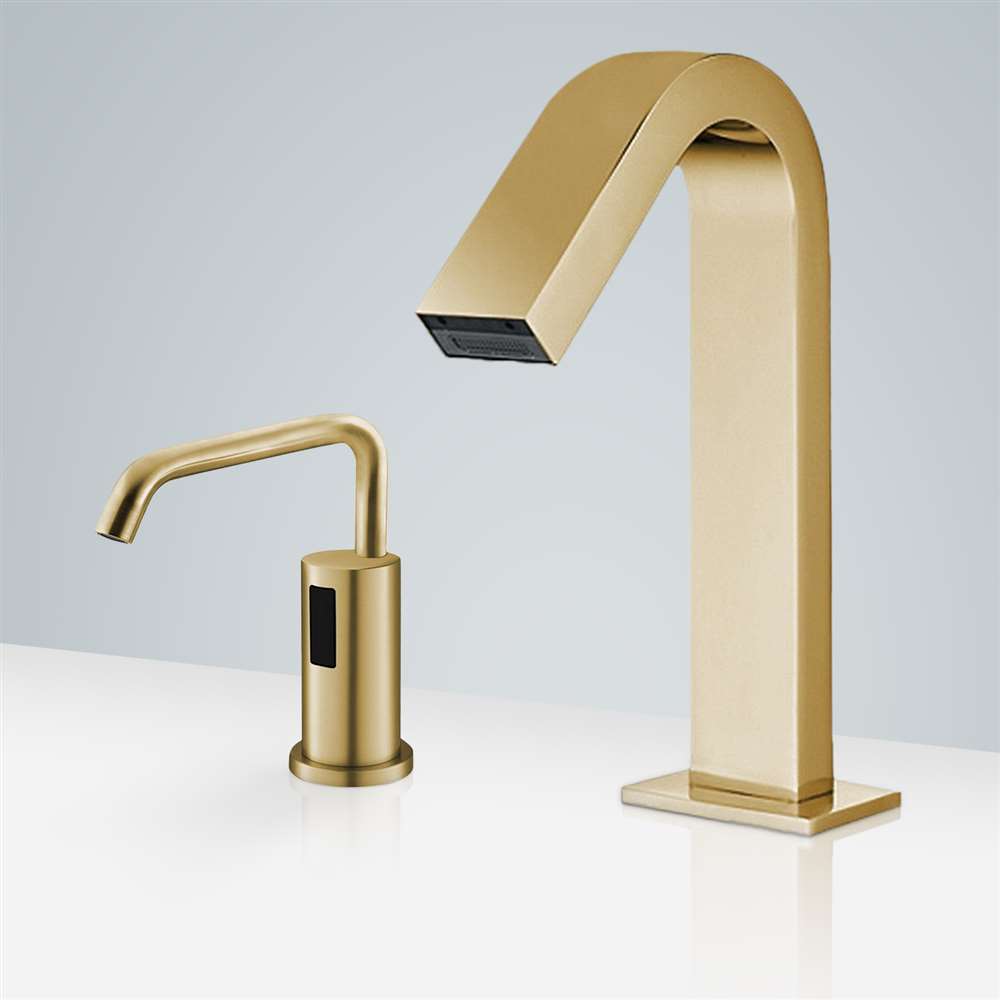

FS18260 — Alternate Set

Specify with confidence

End the hunt. FS852STIDP brings IR precision, AC/DC flexibility, and spec-ready docs built for restrooms with heavy foot traffic—so installs are faster and maintenance is simpler.

FS852 — Product Page FS852 — Spec PDF
