Fontana Automatic Light Oil Rubbed Bronze Liquid/Foam Soap Dispenser (FS1025LORB) | Contractors & Engineers
Fontana® · Commercial · Deck-Mount

Automatic Light Oil Rubbed Bronze
Liquid/Foam Soap Dispenser

Built for heavy-traffic restrooms and healthcare environments, the Fontana Sora automatic dispenser (Model FS1025LORB) delivers consistent, touch-free dosing with a refined Light Oil Rubbed Bronze finish. Spec-ready documentation and BIM assets are available for submittals. View product page.

See Pricing & Availability Specs BIM & Docs Install

Finish

Light Oil Rubbed Bronze

Capacity

1000 mL (commercial)

Power

AC 110–240V or 4×AA

Mount

Deck-mount, single-hole

Why contractors and engineers choose this model

Reliable IR Sensor

Consistent, hands-free activation to reduce cross-contamination and keep counters clean. Factory-tuned for commercial traffic.

Flexible Power

Hardwire to 110–240V AC, or deploy with 4×AA batteries during phased renovations—no downtime for the washroom core. See specs.

Spec-Ready Docs

Specification sheet, installation instructions, warranty, and BIM links are provided on the product page to streamline submittals.

Finish-Matched Programs

Coordinate with matching oil-rubbed bronze faucets or combined faucet+soap sets when a unified look is required. Explore sets.

Dose Range

Metered, touch-free

Volume

1000 mL reservoir

Finish

L-Oil Rubbed Bronze

Warranty

5-Year (see sheet)

Technical Specifications (FS1025LORB)

ModelFontana Sora — FS1025LORB
TypeAutomatic / Touchless deck-mounted liquid soap dispenser
FinishLight Oil Rubbed Bronze
Capacity1000 mL internal reservoir (commercial)
PowerAC 110–240V or 4×AA batteries
MaterialsBrass body, polished surface treatment
ActivationInfrared (IR) sensor, metered dose
DimensionsApprox. H 125 mm × W 40 mm × D 170 mm (see spec sheet)
PlumbingUS standard compatibility
UseHigh-traffic commercial restrooms, hospitality, healthcare, offices

Source: FS1025LORB product page details and downloadable documentation. Verify on Fontana.

BIM & Documents

Access BIM family, specification sheet, installation guide, warranty, and product video from Fontana:

BIM File Specification Sheet (PDF) Installation Instructions Warranty

If your project mandates foam soap, see bronze integrated options: HydraStream™, CleanMist™, or WaveSync™.

Installation & Commissioning

  1. Drill/verify single hole per bay per template; ensure bottle clearance below deck.
  2. Mount body and sensor per manual; connect power (AC or battery pack).
  3. Prime with specified soap; test activation distance and dosing.
  4. Seal deck interface; log serial/model for O&M closeout.

For hospitals and schools, specify restricted dose and service interval notes on the drawings to standardize facility routines.

Deck-Mount IR Sensor 1000 mL AC/DC L-Oil Rubbed Bronze

Product Gallery

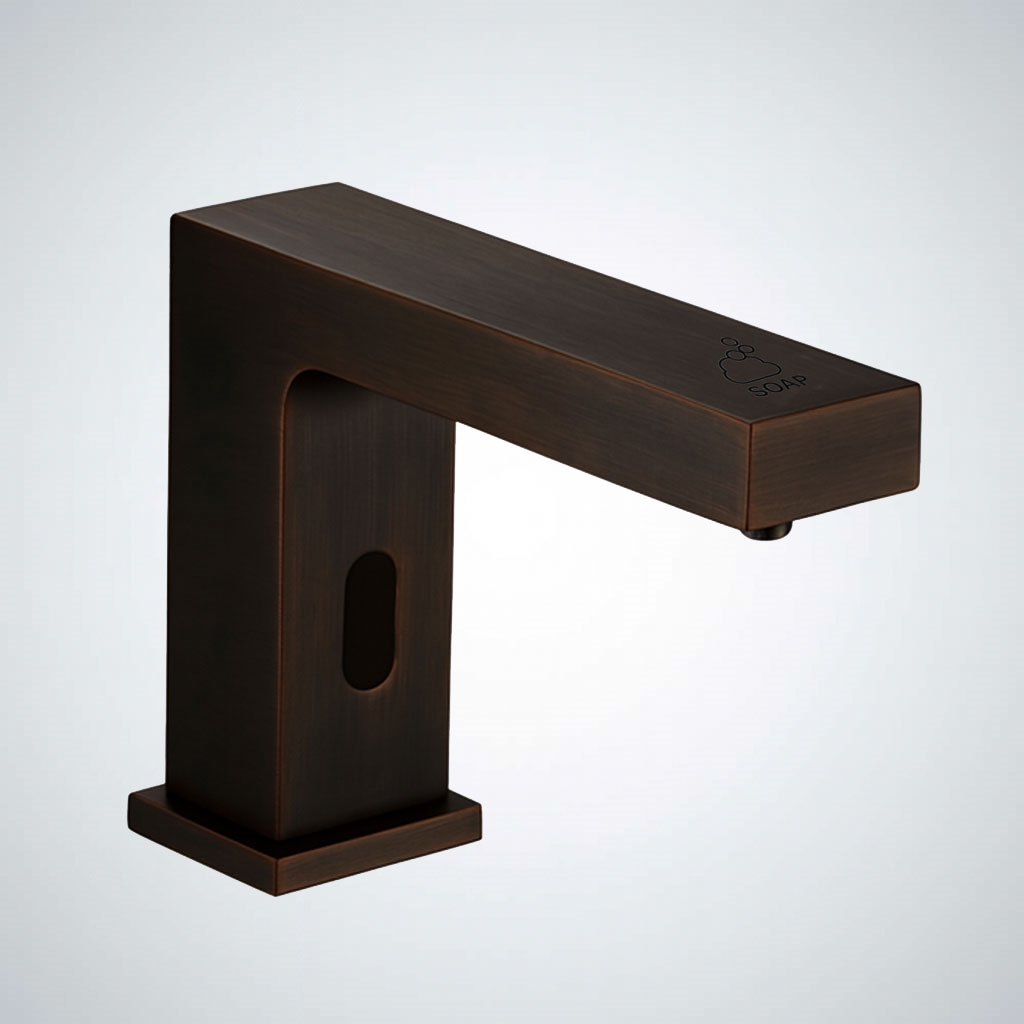

FS1025LORB — Hero
FS1025LORB — Sora Light Oil Rubbed Bronze (deck-mount)

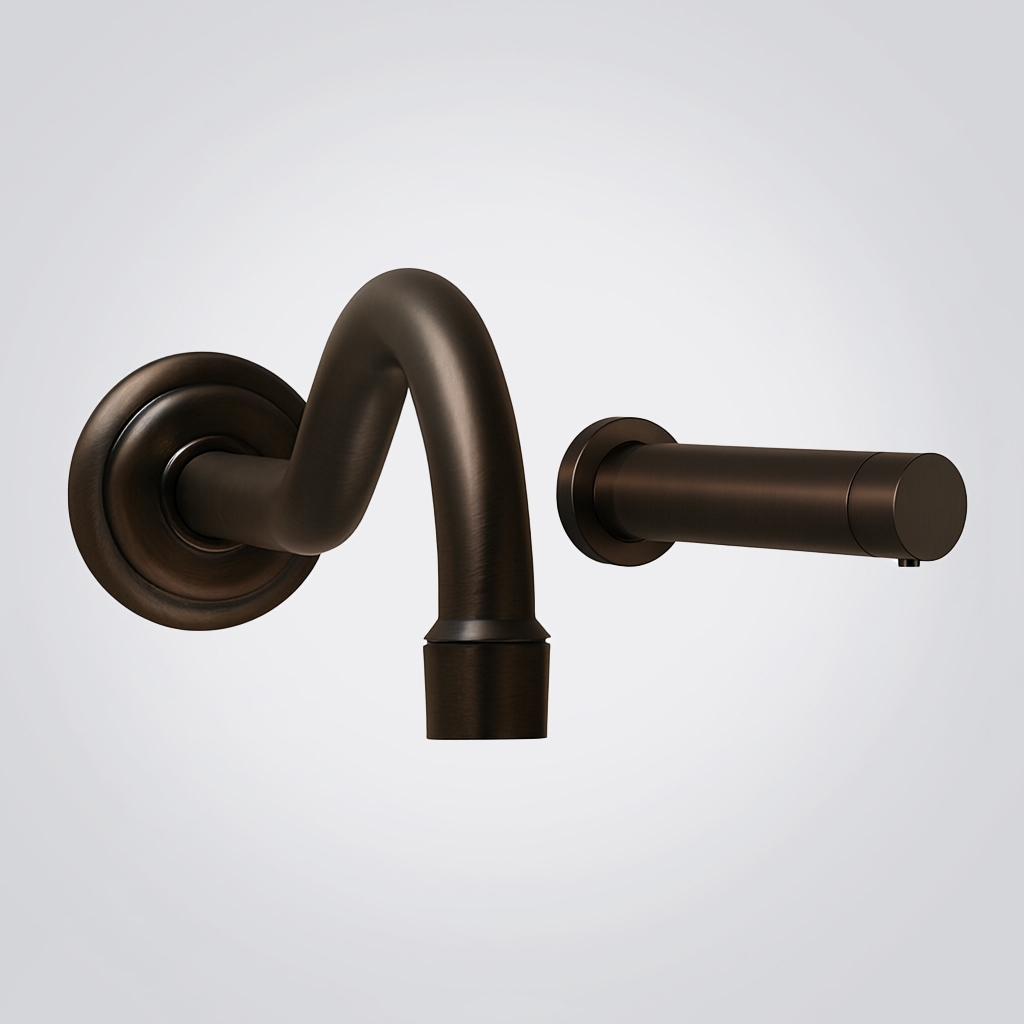

FS10511ORB — HydraStream bronze set
FS10511ORB — HydraStream™ 2-in-1 faucet + soap (bronze)
FS2307ORB — CleanMist bronze set
FS2307ORB — CleanMist™ 2-in-1 with LED display (bronze)

Images and linked pages are from Fontana’s official storefront for verification and submittals.

Ready to specify?

Attach the spec sheet and BIM link to your drawing set, and reference model FS1025LORB on the plumbing fixture schedule.
