Fontana Automatic Matte Black Motion Sensor Faucet & Automatic Soap Dispenser — Contractor/Engineer Spec

Matte Black · Motion Sensor Faucet + Soap Dispenser · Commercial/ADA

Fontana Automatic Matte Black Motion Sensor Faucet & Automatic Soap Dispenser

Hands‑free faucet + soap, one coordinated spec. IR activation, AC/DC power, and solid‑metal construction. Verified Fontana models below with BIM/Revit, spec sheets, and installation guidance for contractor‑friendly submittals.

Activation

Infrared (IR); ToF on select models

Power

AC 110–240V or DC battery

Construction

Solid brass / 304 SS; matte black

Compliance

Commercial / ADA‑ready

Hygienic, durable, and submittal‑ready

Hands‑free hygiene

IR dosing + IR faucet minimize cross‑contamination; consistent metering per activation.

Commercial durability

Solid brass/SS with vandal‑resistant design for high‑traffic facilities.

Flexible power

Hardwire to AC or use battery packs for fast retrofits.

BIM & submittals

Spec sheets, install guides, and BIM families available from official Fontana pages.

Technical Specifications — Coordinated Set

Type	Automatic / Touchless infrared faucet + automatic soap dispenser (foam/liquid by model)
Mount	Deck or wall (model dependent); integrated stations available
Power	AC 110–240V or DC battery; select models support AC+DC
Materials	Solid brass / 304 SS with matte black architectural finish
Activation	Adjustable sensor range; auto shut‑off; metered soap dosing
Typical Flow	0.5–1.5 GPM aerators (by faucet model)
Docs	BIM/Revit, Specification Sheet, Installation Guide, Warranty

Use the model links below for exact dimensions, power diagrams, and soap cartridge specs.

Recommended Matte Black Sets & Models

Set A — FS1096 Faucet + FS7847MB Soap

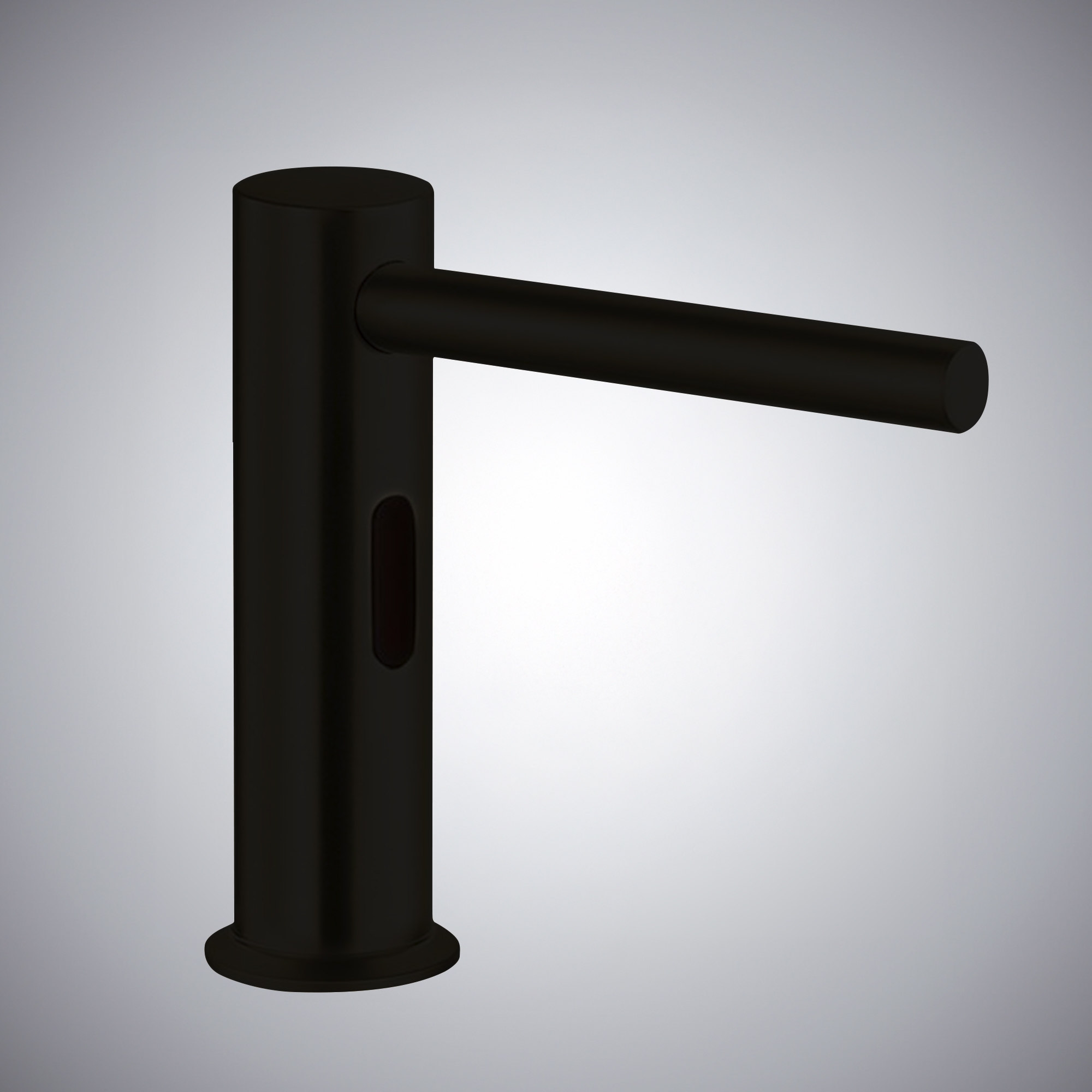

Deck‑mount IR faucet paired with Sabi matte black IR soap dispenser.

FS1096 — Faucet · FS7847MB — Soap

FS15069MB Matte Black Deck-Mount Touchless Faucet

Set B — FS15069MB Faucet + FS15068 Soap

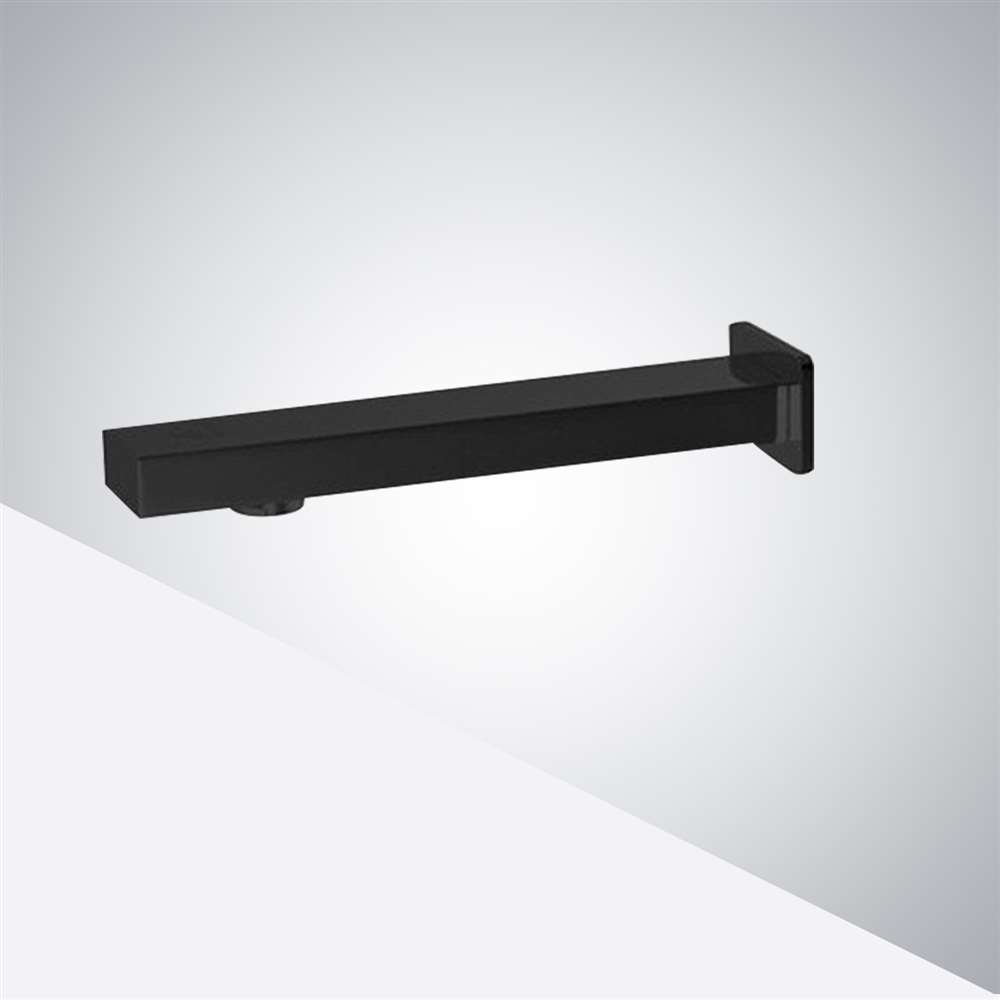

Deck‑mount matte black faucet with matching wall‑mounted foam soap dispenser.

FS15069MB — Faucet · FS15068 — Soap

FS3004 Matte Black Touchless Faucet + Soap + Hand Dryer Station

Set C — FS3004 Integrated Station

Wall‑mounted station combining faucet, soap, and hand dryer in matte black.

FS3004 — Station

BIM & Documents

Access BIM/Revit families, spec sheets, installation guides, and warranty from verified product pages:

FS1096 — BIM / Specs / Install FS7847MB — Product FS15069MB — Product FS15068 — Soap Dispenser FS3004 — Station (BIM/Specs)

Include BIM and spec sheets in your submittal package. Verify transformer location, mixing valve requirements, GPM, and ADA clearances with your MEP set.

Installation & Commissioning

Confirm deck or wall mount and follow drilling/template patterns for faucet and dispenser.
Install bodies; route soap tube/reservoir; wire transformer(s) or insert batteries.
Set aerator/flow; adjust faucet IR range/time‑out; set soap dosing; prime lines.
Run leak/activation tests; record model/serials in O&M closeout.

For schools and hospitals, standardize sensor ranges, dosing, and PM intervals across floors to reduce service variance.

Matte Black IR / ToF AC/DC ADA‑Ready

Gallery

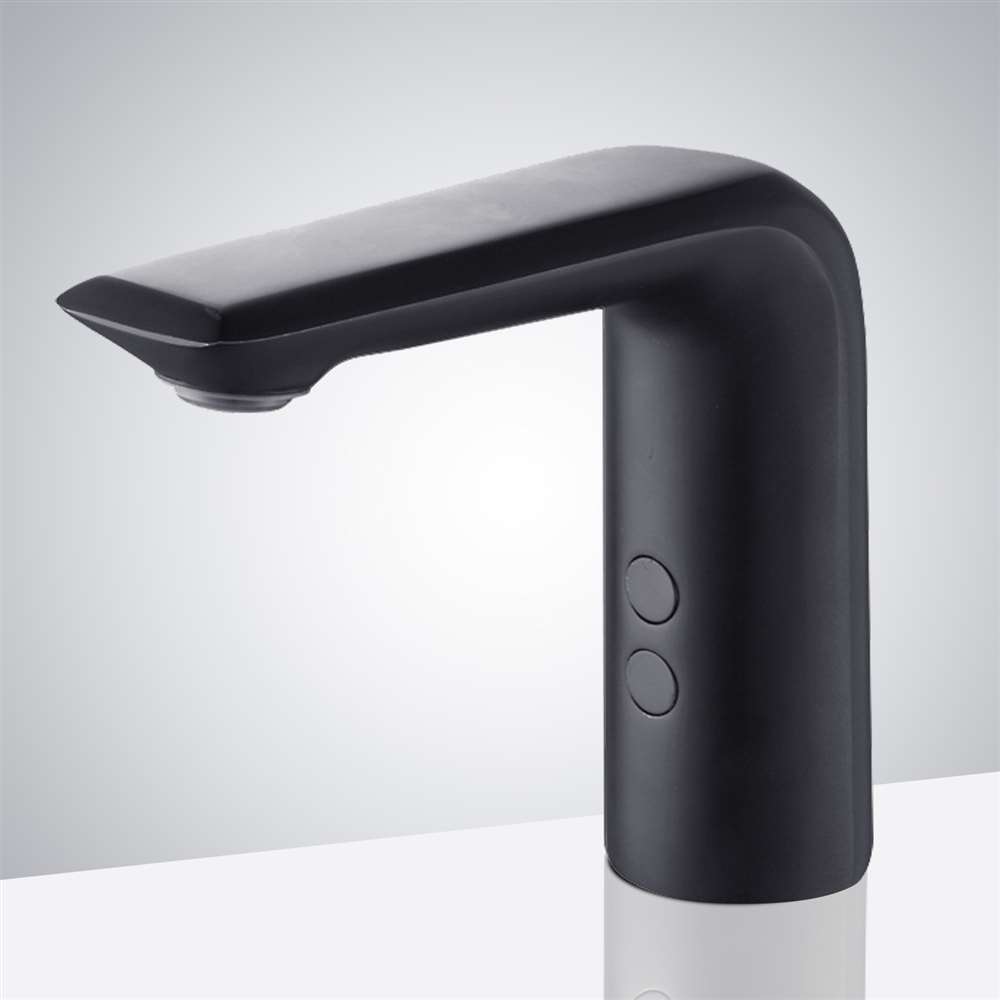

Touchless Automatic Matte Black Faucet — FS15069MB

FS15069MB — Matte black touchless deck‑mount

FS3004 — Integrated faucet + soap + dryer

Commercial Matte Black Touchless Faucet — FS1096

FS1096 — Matte black touchless faucet

Images and links reference official Fontana product pages and collections.

Specify with confidence

One coordinated spec, fewer callbacks. Matte Black Motion Sensor Faucet & Automatic Soap Dispenser from Fontana deliver touch‑free hygiene, AC/DC flexibility, and spec‑ready docs—so crews install faster and facilities run cleaner.
