FontanaPulse™ Ibiza – Chrome
FontanaPulse™ Ibiza – Chrome

Alternative Views:


Commercial Orders: Need RFQ Click Here


Availability: Usually Ships in 5 to 10 Business Days
Product Code: FS8974CH
Qty:

Description Technical Specs Extended Technical Information

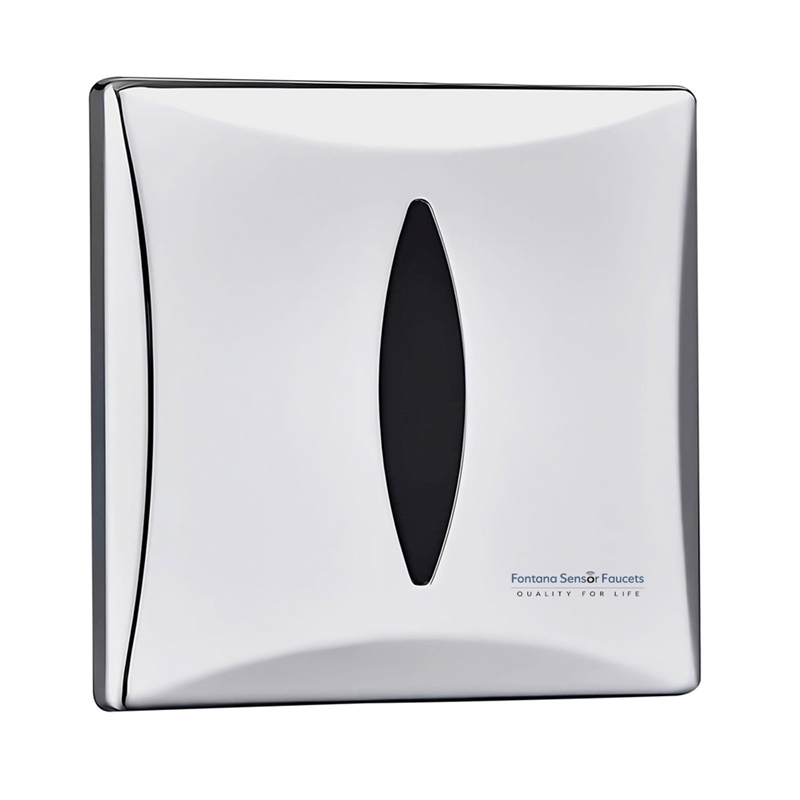

FontanaPulse Touch Free Flush Valve for Urinals in Chrome Finish

The FontanaPulse™ Touch-Free Flush Valve is the epitome of modern artistry and hygiene precision in the necessary toilet areas. The polishing of the stainless steel material and the surface of the chrome gives it the best durability against any kind of wear and tear, including rust. The smart dynamic sensor gives the user no contact flushing, which enhances hygiene and decreases the chance of cross-infection. The mechanism for timing control that can be modified favors the responsible use of water without the quality of the flushing being affected. The device allows working with both battery and electrical input, thus providing flexibility in installing it in various premises. The space-saving sizes of the mute front panel on the wall highlight the sleek beauty that is in line with the modern design of the interiors. The silent working enhances user comfort and at the same time, the engineered pressure variation offers reliable performance. Fontana, through its combination of durability, eco-friendliness, and aesthetic superiority, has really been able to depict the perfect balance of cutting-edge technology and architectural sophistication, thus being the ultimate choice of the hospitality industry, transport hubs, or even commercial toilets, which are in search of a long-lasting, eco-friendly, and effortlessly functional automatic flushing system.

Seamless Touch-Free Experience in Lustrous Chrome:

  • Brand Name: FontanaSensorFaucets®
  • Model Number: FS8974CH
  • Design Style: Contemporary
  • Product Type: Urinal Flush Valve
  • Flush Valve Type: Automatic Sensor
  • Finish: Chrome
  • Material: 304 SS Panel
  • Flush Time: Adjustable
  • Installation Type: Wall Mounted
  • Electronic Induction Type: DC & AC
  • Power Supply: DC:6V (4xAA alkaline batteries), AC:220v-50 Hz
  • Function: Automatic, Sensor, Inductive, Water Saving
  • Front Plate Size: 124 mm (W) × 124 mm (H) × 15 mm (T)
  • Internal Mechanism: 114 mm (H) × 124 mm (W)
  • Overall Depth: 75 mm
  • Application: Shopping Mall or Hotel

Features


Flush Valve BIM File

Specification Sheet


Installation Instructions


Repair & Maintenance Guide


Product Detail Brochure


3D Product Rendering


Installation Detail Video


5-Year Product Warranty
