Automatic Soap Dispenser Troubleshooting
In large commercial environments, you may encounter issues like sensor misfires, clogging, inconsistent dosing, pump fatigue, battery drain, leakage, vandalism, and difficult maintenance while anyone of these issues can disrupt hygiene operations; the Fontana addresses these challenges through commercial-grade pumps, precision-calibrated sensors, anti-drip dosing control, soap-type compatibility, vandal-resistant housings, and service-friendly designs—making Fontana automatic soap dispensers a reliable, long-term solution for high-traffic facilities.Fontana offers the best and high-quality soap dispensers that are perfect in working but as these are automatic, so troubleshooting may occur in automatic soap dispensers. Due to this, the automatic soap dispenser stops working. If your soap dispenser is not dispensing soap from the pump then there would be a specific reason behind it. The dispenser stops its function if pump of the dispenser is broken or leak. Clogging in the pump and depression of trigger also stops the functioning of the soap dispenser. Dead battery and obstructed sensor also cause troubleshooting.

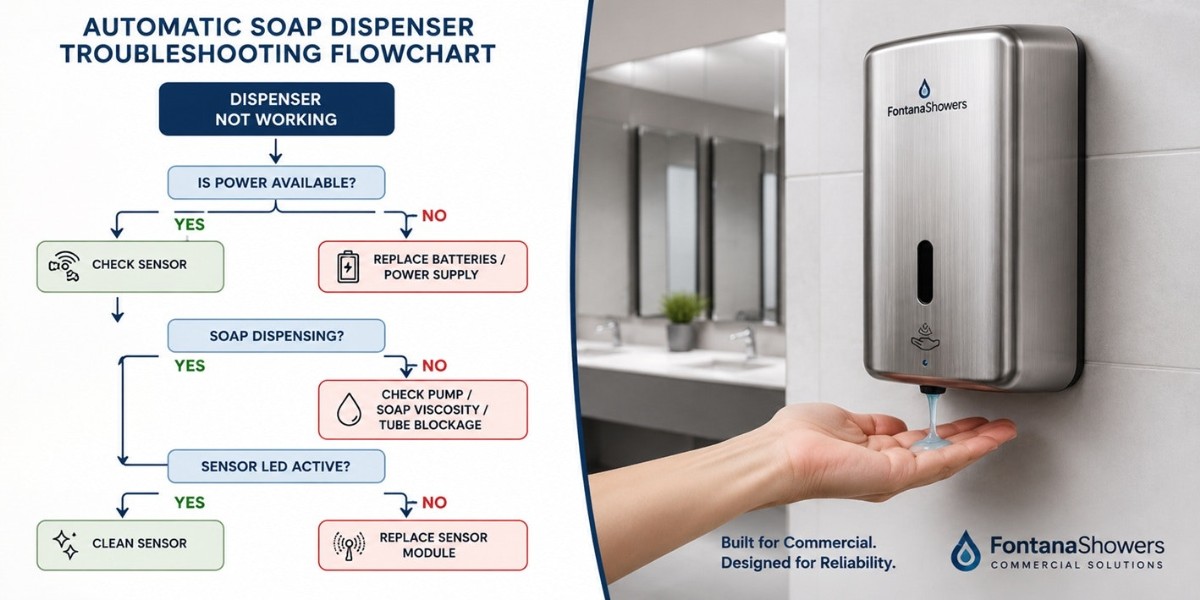

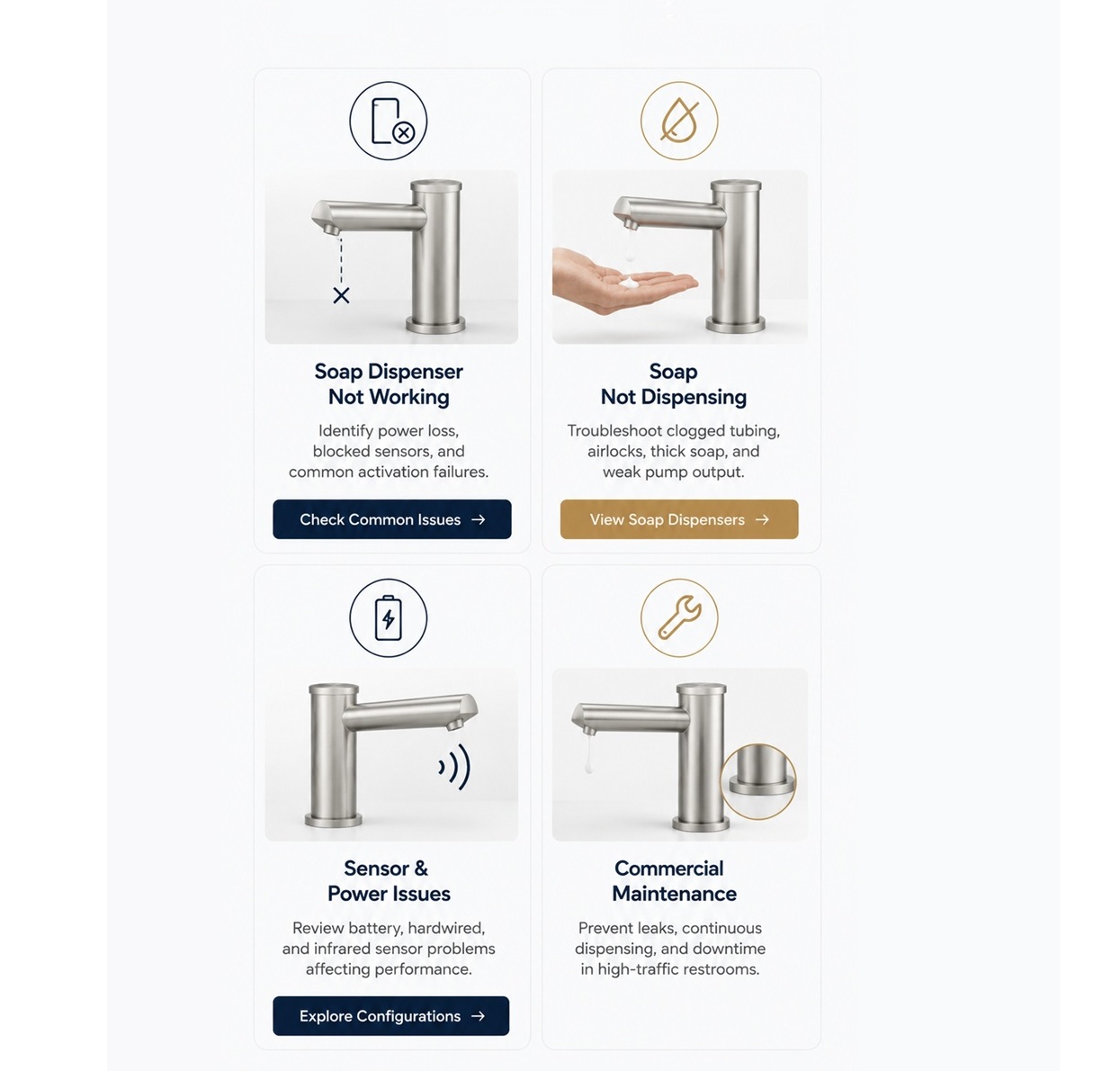

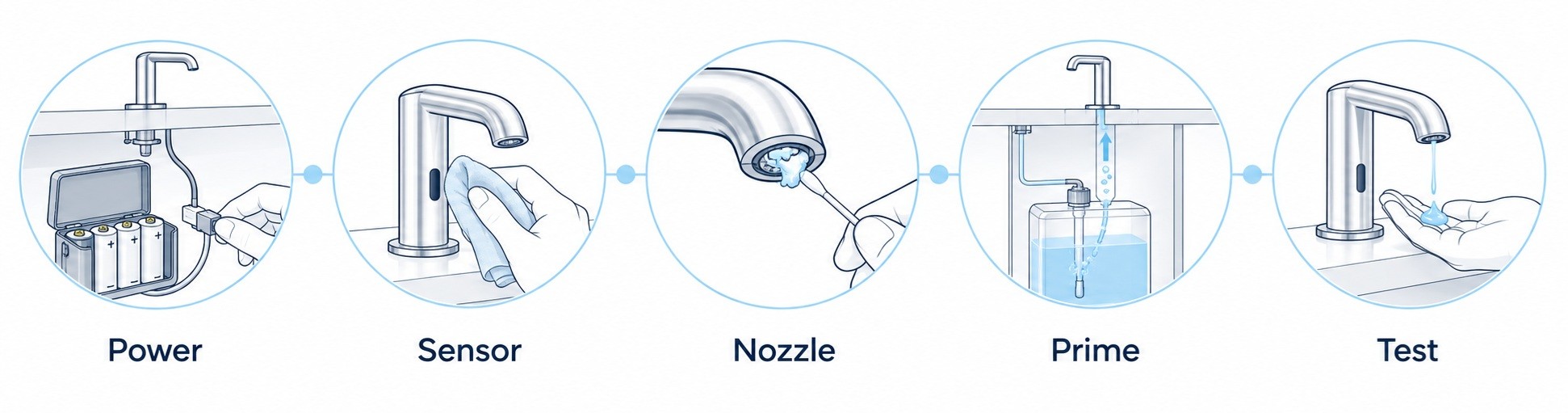

Automatic Soap Dispenser Not Working In any case you need to check the proper structure of the automatic soap dispenser and then try to fix them. If your dispenser pump is not dispensing soap due to clog inside it, then remove all parts of the dispenser and clean them. Then soak these parts into the hot water, it will help to unclog the material in the tube and pump. Clogging in the pump also leads to leaking, and you can fix this issue in the same way. The automatic soap dispensers usually face battery low or dead issue. In case of low battery the blue indicator light start blinking. If the batteries are rechargeable then charge them rapidly or if they are dead then replace the batteries with new one. If batteries are fresh then check the sensor. Clean the sensor with some vinegar on the soft cloth because due to grim or soap scum the sensor doesn’t sense the hand presence under it. If everything is alright then check your soap dispenser to any expert.

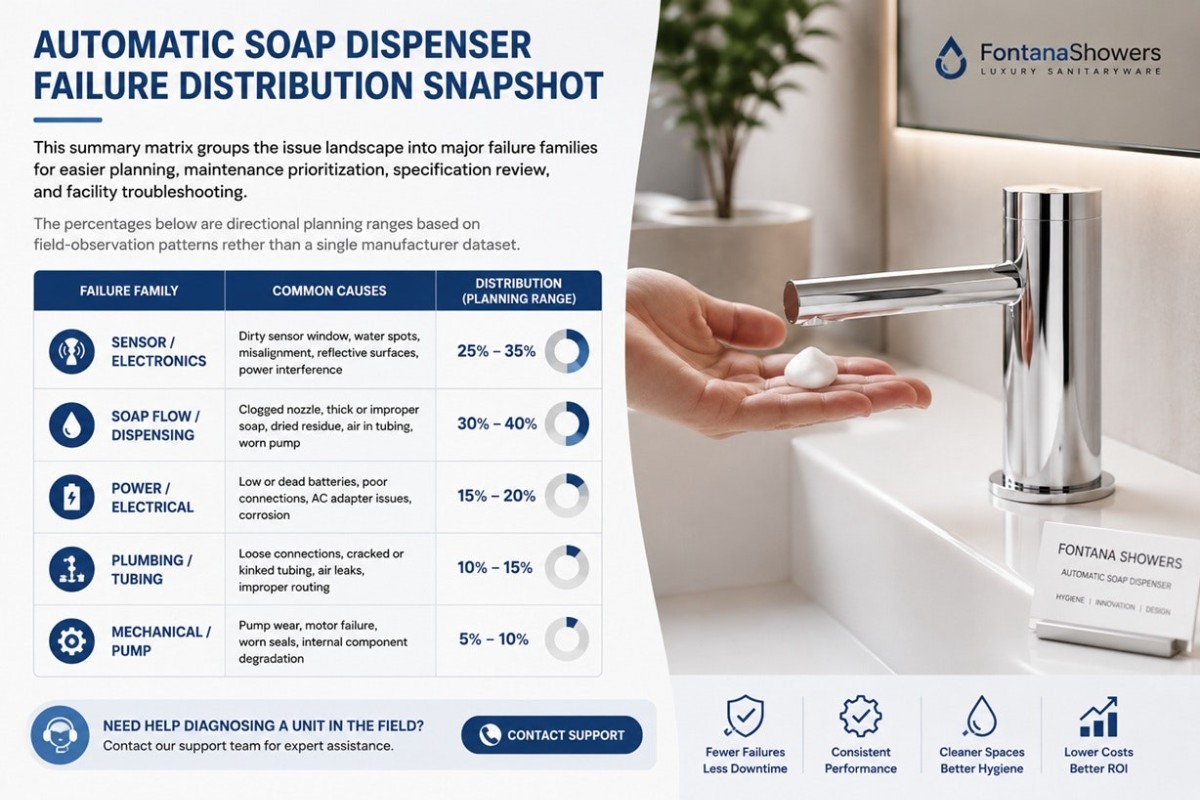

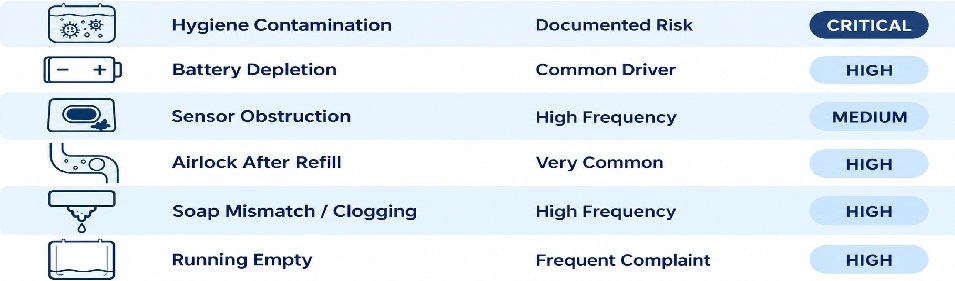

What are the Most common failures by facility type? Map issues → causes → fixes (commercial automatic soap dispensers)
| Issue (symptom) | Most Probable cause(s) | Prop Fix (field-ready) |
|---|
| No dispense at all | Dead batteries / no power, empty refill, safety lock engaged, failed control board | Replace batteries (and confirm polarity), verify refill level/seat, reset unit, inspect wiring/adapter, test with known-good pump/module | | Sensor doesn’t detect hands | Sensor window dirty/clouded, sensor mis-aimed, range too short, IR interference from glossy surfaces | Need to clean sensor lens (non-abrasive), re-aim, recalibrate range, reduce reflections (matte backsplash/relocate), switch sensor mode if available | | False triggering / random dispensing | Sunlight/bright LEDs, mirror-like counters, passing traffic, dispenser facing doorway | Need to change placement/angle, add shield/hood, lower sensitivity, reduce reflective surfaces, move away from traffic line-of-sight | | Intermittent dispense | Weak batteries under load, loose connector, pump motor binding, intermittent sensor signal | Need to replace batteries with fresh high-drain cells, reseat connectors, inspect pump for sticking, clean/replace pump head | | Dripping after dispense | Worn check valve, residual pressure, nozzle residue, pump not sealing | Need to clean nozzle, replace check valve/pump, ensure correct tubing length, confirm compatible soap viscosity | | Over-dispensing (waste/mess) | Dose set too high, foam-air ratio wrong, sensor retrigger time too short | Need to reduce dose/time, increase lockout delay, recalibrate foam mix, add anti-retrigger setting | | Under-dispensing (complaints) | Dose too low, low power to pump, thick soap, partial clog | Need to increase dose, replace batteries, warm/replace soap, flush nozzle and tubing | | Clogging / slow flow | High-viscosity soap, particulates, dried residue at nozzle, incompatible product | Need to use manufacturer-approved soap, flush system, clean nozzle regularly, replace clogged pump/tube | | Airlock after refill | Tube not primed, pump chamber drained, cartridge not seated | Need to run prime mode (or manually prime), reseat cartridge, ensure pickup tube fully submerged | | Watery foam / poor foam quality | Wrong soap type for foamer, foam mesh clogged, air intake blocked | Need to use foaming soap only, clean/replace foaming mesh, clear air ports, recalibrate ratio | | Battery drains too fast | High traffic, constant false triggers, low-quality batteries, cold temps | Need to use quality alkaline/lithium, reduce sensitivity, fix false triggers, consider hardwire in extreme traffic zones | | Unit works, then stops in cold | Soap thickens, pump torque increases, sensor sluggish | Switch to low-temp-rated soap, move unit away from exterior drafts, increase dose time slightly, use AC power if possible | | Leaking inside cover | Cracked cartridge, tube split, loose fittings, overtightened assembly | Replace cartridge/tubing, re-seat fittings, check for hairline cracks, don’t overtighten | | Refill “full” but no dispense | Refill not venting, pickup tube kinked, cartridge valve stuck | Ensure venting, unkink tube, replace cartridge/valve, prime again | | Vandalism / tamper | Twisted nozzle, pulled tube, blocked sensor, cover pried | Use lockable covers, anti-tamper screws, relocate higher/safer mounting, specify commercial housings | | Hardwater residue on sensor/nozzle | Mineral deposits from environment/cleaners, poor cleaning method | Wipe with approved cleaner, avoid harsh acids/abrasives, schedule periodic de-scale for exposed parts |
|
