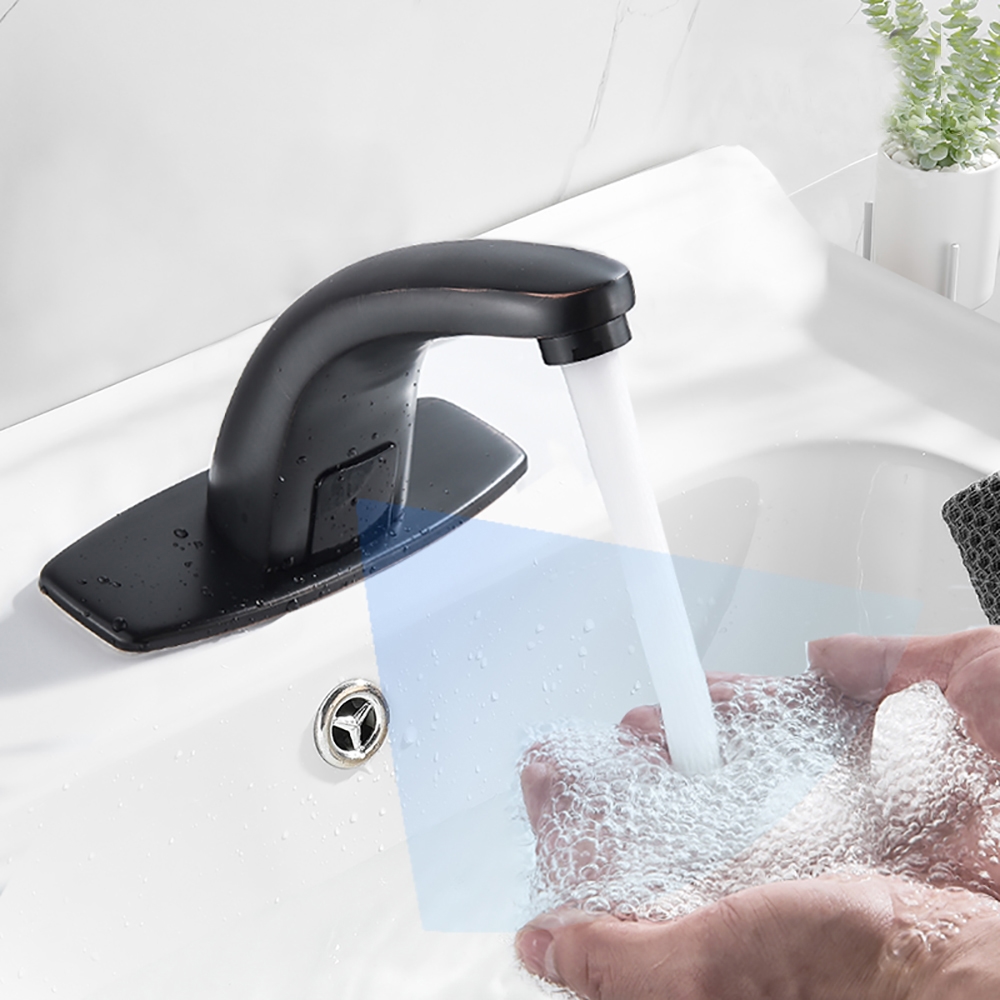

Fontana Napoli Deck Mount Oil Rubbed Finish Commercial Automatic Sensor Faucet
Commercial Automatic Hands-Free Faucet is developed for high-traffic restroom facilities requiring touchless water delivery, contamination control, and dependable operational longevity. Advanced infrared detection technology ameliorates bacterial cross-contact, excessive water waste, fixture-contact dependency, and sanitation inefficiencies that frequently affect manually operated plumbing systems. Inferior hands-free faucets often experience actuator burnout, sensor dead zones, delayed shutoff response, electronic degradation, and mineral accumulation that increase maintenance-intensive servicing. Commercial-grade engineering ensures stable activation responsiveness and hydraulic consistency throughout continuous occupancy cycles. Suitable for hospitals, airports, hospitality environments, educational institutions, government facilities, and public restroom infrastructures requiring specification-grade performance.
Fontana Napoli Deck Mount Oil Rubbed Finish Commercial Automatic Sensor Faucet:
- Brand Name: FontanaShowers®
- Model Number: FS-501-DORB
- Type: Sink Faucets
- Style: Single Holder Single Hole
- Style: Classic
- Hot & Cold Water: No
- Installation Type: Deck Mount
- Surface Treatment: Electroplated
- Faucet Mount: 4" Center set
- Feature: Sensor Faucet
- Type: Ceramic Plate Spool
- Valve Core Material: Ceramic
- Number of Handles: None
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
Sensor Activated Faucet Special Features:
Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory Low power consumption: 4AA alkaline batteries can be used for 2 years at 200 cycles a day Convenient to maintain: Built-in strainer prevents sundries from entering the solenoid valve and the strainer is easy to clean
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Complaint
- Battery life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V, AC.110-220V - 50/60Hz
-
Power Consumption:
0.5MW, <2W
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
 BIM File Touchless Faucet
 Specification Sheet
Installation Instructions
Repair & Maintenance Guide
Product Detail Brochure
3D Product Rendering
Installation Detail Video
5-Year Product Warranty
|
|
|
|
|
|
|
