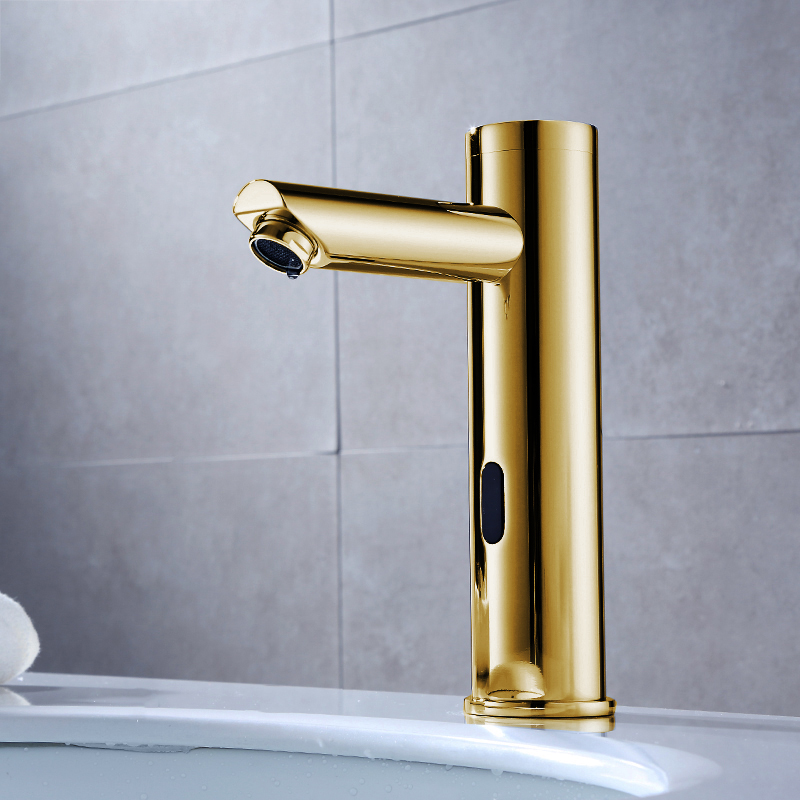

Fontana Commercial Gold Finish Touchless Automatic Sensor Faucet
Fontana Commercial Automatic Sensor Faucet integrates commercial-duty sensor technology with durable construction engineered for demanding public restroom applications. Designed to ameliorate contamination exposure, excessive water discharge, fixture-contact dependency, and sanitation inefficiencies, the faucet supports modern facility-management objectives. Inferior sensor-operated faucets frequently experience pressure instability, electronic corrosion, calibration failures, moisture intrusion, and recurring maintenance-intensive breakdowns that compromise operational continuity. Precision infrared sensing and optimized hydraulic regulation ensure dependable activation accuracy and water-efficiency performance throughout extended service cycles. Recommended for transportation terminals, healthcare institutions, hospitality environments, government facilities, and specification-driven commercial restroom modernization projects.
Fontana Commercial Gold Finish Touchless Automatic Sensor FaucetFeatures::
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.9" (200.66mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
- Finish: Gold-Tone Finish
- Model Number: FS-509GP
- Hot and Cold Water: Optional
- Valve Type: Solenoid Valve
- Material: Solid Brass
- Installation Type: Deck Mount
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
ADA Compliant
