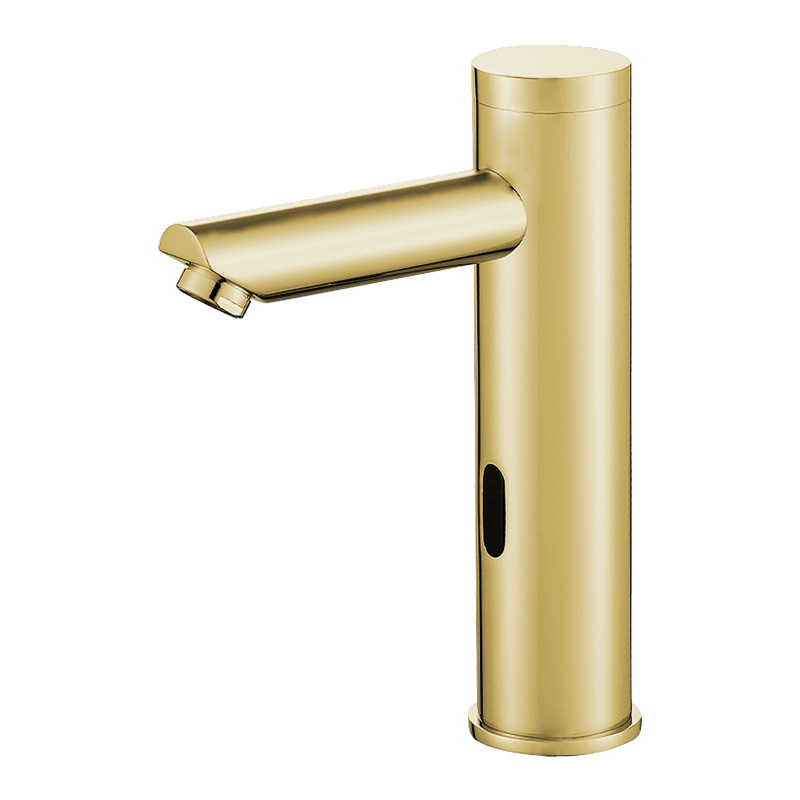

Fontana Commercial Brushed Gold Finish Touchless Automatic Sensor Faucet
Fontana Commercial Automatic Sensor Faucet delivers electronically controlled water activation engineered to meet the demands of continuously occupied commercial restroom environments. The advanced sensor system ameliorates bacterial surface transmission, excessive water discharge, user-contact dependency, and sanitation challenges associated with manual faucet operation. Inferior touchless fixtures frequently suffer from delayed response times, sensor drift, electronic corrosion, valve wear, and hydraulic instability that compromise operational efficiency and increase lifecycle servicing requirements. Built with commercial-grade internal components and precision flow-control technology, the faucet maintains reliable performance and water-efficiency optimization. Recommended for healthcare facilities, airports, hospitality properties, educational institutions, and government restroom infrastructures.
ontana Commercial Brushed Gold Finish Touchless Automatic Sensor Faucet Specifications
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.87" (200mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
Color:
Brushed Gold Finish
Infrared sensor operated, touch-free operation
Advanced energy-saving design for long-lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
For longevity of life and to stand against daily wear and tear the brushed gold finish used is PVD coatings
>
Sensor Faucet Advantage
Conserves water
Saves energy during the water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
Perfect for individuals with disabilities, the product is designed to be in accordance with ADA (Americans with Disabilities Act) guidelines.
Vandal resistant
Waterproof Components
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
 BIM File Touchless Faucet
 Specification Sheet
Installation Instructions
Repair & Maintenance Guide
Product Detail Brochure
3D Product Rendering
Installation Detail Video
5-Year Product Warranty
|
|
|
|
|
|
|
