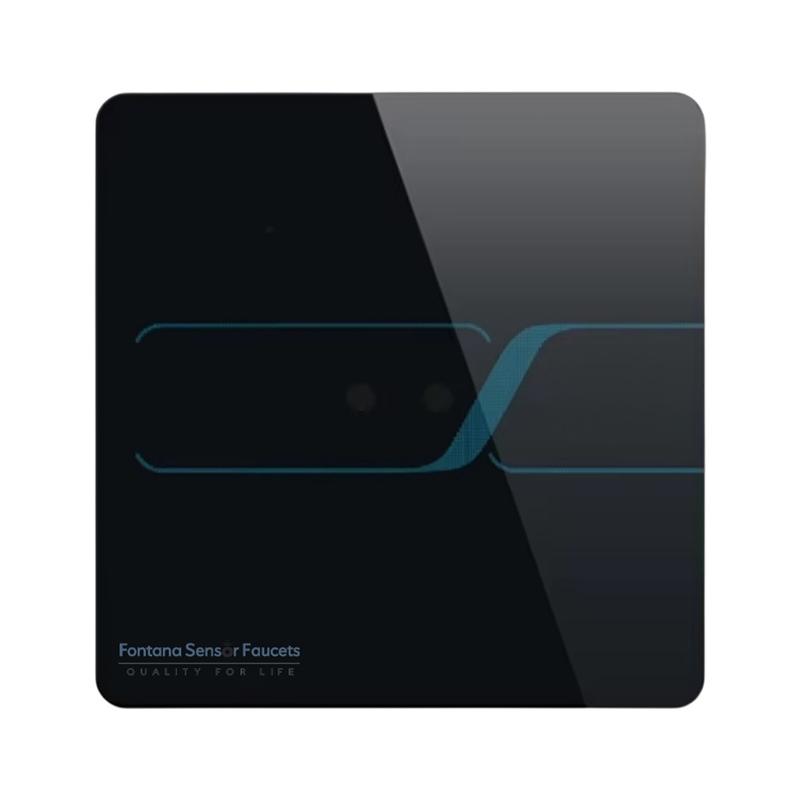

Fontana FlushSync Black Automatic Urinal Sensor Flush Valve

The Fontana FlushSync™ Matte Black automatic urinal valve is a bold, modern addition to commercial toilet environments. Its dark coating and smooth glass plate together provide a very elegant and attractive point of interest that blends perfectly with modern architectural styles. The highly accurate infrared activation has been employed for this system, and each flush is executed at just the right time to keep the place clean while conserving water in heavy traffic areas. The valve mechanism is a robust brass solenoid that delivers reliable operation and precise flow control even when the operating conditions differ widely. Both battery backup and power connection will not create messy installations, making it an excellent fit for different projects, whether it is a new construction or a reconstruction. The sensor allows for perfectly hands-free operation within the calibrated field and thus promotes hygienic and comfortable restrooms. The incorporation of timing controls allows for the scheduled management of pre- and post-flush cycles, thereby yielding predictable output while still being resource-efficient. The sleek and modern body of the valve is mounted right onto the wall creating a clean and uncluttered look that is perfect for any upper-class or minimalist design. This is a combination of technical ability, an attractive design, and eco-friendly operation that offers an ideal solution that is compliant with architects, facility planners, and operators' demands for high-tech automation along with a splendid visual statement.

Smart Sync Technology in a Bold Black Statement

Brand Name: FontanaSensorFaucets®
Model Number: FS8118BL
Design Style: Contemporary
Product Type: Urinal Flush Valve
Flush Valve Type: Automatic Sensor
Finish: Black
Installation Type: Wall Mounted
Material: Brass Solenoid Valve / Tempered Glass Plate
Electronic Induction Type: DC & AC
Working Power: DC3V / AC100-240V optional
Sensing Distance: 13-26in (35-65cm)
Flush Program: 2s for Pre-Flush & 6s for After-Flush
Water Flow: 2-5L/flush time (0.3MPa)
Working Water Pressure: 7.25-101.5PSI (0.05-0.7MPa)
Nlet/outlet Pipe Diameter: G1/2" (DN15)
Mounting Diameter: G1/2" (DN15)
Static Power Consumption: <50uA
Dynamic Power Consumption: <2.5W
