Fontana ProConnect™ - Slate Grey
Fontana ProConnect™ - Slate Grey

Alternative Views:


Commercial Orders: Need RFQ Click Here


Availability: Usually Ships in 5 to 10 Business Days
Product Code: FS8100LG
Qty:

Description Technical Specs Extended Technical Information

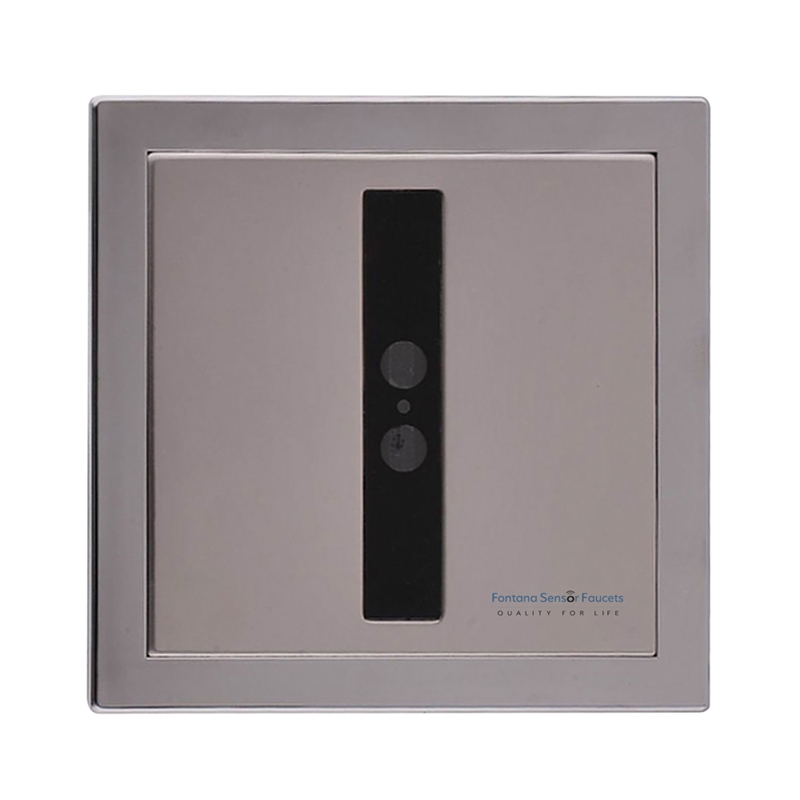

Fontana ProConnect Satin Light Grey Wall Mounted Automatic Sensor Urinal Flush Valve

The Fontana ProConnect™ Slate Grey is a smart and modern flush system that responds to the user by starting and stopping water flow based on usage, thus being very conscious of the water resource. The delicate and smooth lines of the product are lively and will support the most daring design ambitions in public office areas, airports, and even in high-tech areas that put a priority on fine aesthetics. Initially designed for areas like hotels that need to create a certain mood, this smart flushing system stays in harmony with the environment through its adaptive cycles that not only respond to the amount of usage but also assure high performance. The use of brass cartridges for every valve heightens the durability of the entire unit and keeps it reliable in the long run. The efficiency of the washroom through its DIMM system where four AA alkaline batteries power a very low-voltage DC sensor, which is also hidden making it even more efficient. The hands-free operation keeps people away from the surface and thus also prevents germs from transferring and meeting the sanitation levels expected in today's world. The cross between modern technology using sensors and human necessity along with beautiful presentation gives this urinal solution the quality of being an ideal option for managers who want to add a touch of luxury to the experience of their guests through non-contact equipment, state-of-the-art detection, and creating a strong impression of cleanliness. Ultimately, ProConnect is the bathroom facility changer as it is a stealthy, beautiful, and holistic upgrade to modern bathrooms.

Smart Efficiency in a Sleek Profile

  • Brand Name: FontanaSensorFaucets®
  • Model Number: FS8100LG
  • Design Style: Modern
  • Product Type: Urinal Flush Valve
  • Flush Valve Type: Automatic Sensor
  • Finish: Satin Light Grey
  • Material: 304 SS Panel+Electroplated Plastics Frame
  • Flush Time: Adjustable
  • Cartridge: Brass
  • Installation Type: Wall Mounted
  • Electronic Induction Type: DC
  • Power Supply: DC:6V (4xAA Alkaline Batteries).
  • Flush Time: Adjustable
  • Application: Hotel
  • Special Features: Concealed, Touchless, Water Saving
  • Height: 5.12″
  • Width: 5.12″
  • Internal Height: 4.49"
  • Internal Width: 4.88"
  • Depth: 2.95"
  • Front Plate Thickness: 0.59"

Features


Flush Valve BIM File

Specification Sheet


Installation Instructions


Repair & Maintenance Guide


Product Detail Brochure


3D Product Rendering


Installation Detail Video


5-Year Product Warranty
