Fontana Touchless Faucets — Studies

5 Key Performance Metrics (KPIs) for Commercial Washrooms

♿ ADA 💧 WaterSense 🔥 Anti-Scald 🌿 LEED / WELL 🔌 AC/DC Power 🔐 IK10 • IP65+
Download BIM / Revit Copy Spec (RFP/SOP) Support: 800-684-4489
Assumptions: 0.35–0.5 gpm • ToF • 316 SS / DZR • AC primary • Battery ≥ 400k activations

Core KPIs (Field-Validated)

Activation Delay (ToF)
≤ 200 ms
Best Quartile: 140–160 ms
Add to Spec: Delay ≤ 200 ms
Usage Counts / Sink
≈ 950 / day
Airports: 900–1,200 • Offices: 250–500
Add to Spec: Design for peak
Battery Life
≥ 400k
Assumed Max: ~500k • Recommend AC primary
Add to Spec: Battery ≥ 400k activations
Fault Rate / Month
≤ 0.25%
Observed: ~0.18% (sensor+valve+soap)
Add to Spec: Faults ≤ 0.25%
Water Savings vs Manual
≥ 30%
EPA WaterSense facts
Add to Spec: Savings ≥ 30%
Commissioning Rhythm
Quarterly
Tune dwell & purge; validate telemetry
Add to SOP: BMS KPI review

How to Use

  • Project Integration: Copy KPI targets into RFP submittals & commissioning SOPs.
  • Training: Link quick videos for tech teams & custodial staff.
  • Operate: Track KPIs in BMS/IoT dashboards; quarterly reviews; tune dwell/purge.
Standards & protocols: BACnet/IP • Modbus TCP • MQTT 5 • Anti-scald: ASSE 1070 overview

Working Videos

Sensor Faucet (Commercial)
Gold Touchless Faucet
Wall-Mounted (Chrome)

Large-Scale Touchless — Topics & Guidance

Hardware Hardening

  • 316 SS / DZR brass; PVD anti-fingerprint; concealed fixings.
  • ASSE 1070/1017; 0.35–0.5 gpm laminar.
  • ToF sensors, IP65+, locking M8/M12 connectors.

Soap at Scale — Multifeed

  • 5–10 L reservoir, 6–8 heads; peristaltic pumps.
  • Low-level & leak sensors; auto-purge.
  • 80–100 μm inline filter; viscosity 1–3000 cP.

BMS & Telemetry

  • BACnet/IP, Modbus TCP, MQTT.
  • Usage, faults, temps, AC/battery, soap levels.
  • Edge rules: burst lockout; night-mode dwell.

Design & Installation

  • 60–80 psi regulation, arrestors, hot recirc.
  • PoE/low-voltage raceways; 25–50 gateways/zone.
  • Reinforced backers; ADA heights; seismic.

2-in-1 Faucet + Hand Dryer

Wash & dry at one station — ideal for airports and stadiums. Minimizes floor water and improves throughput.

The Touchless Operation

LED / Premium Finishes

Inclusive visual cues; premium finishes for hospitality and VIP suites.

Touchless Faucets

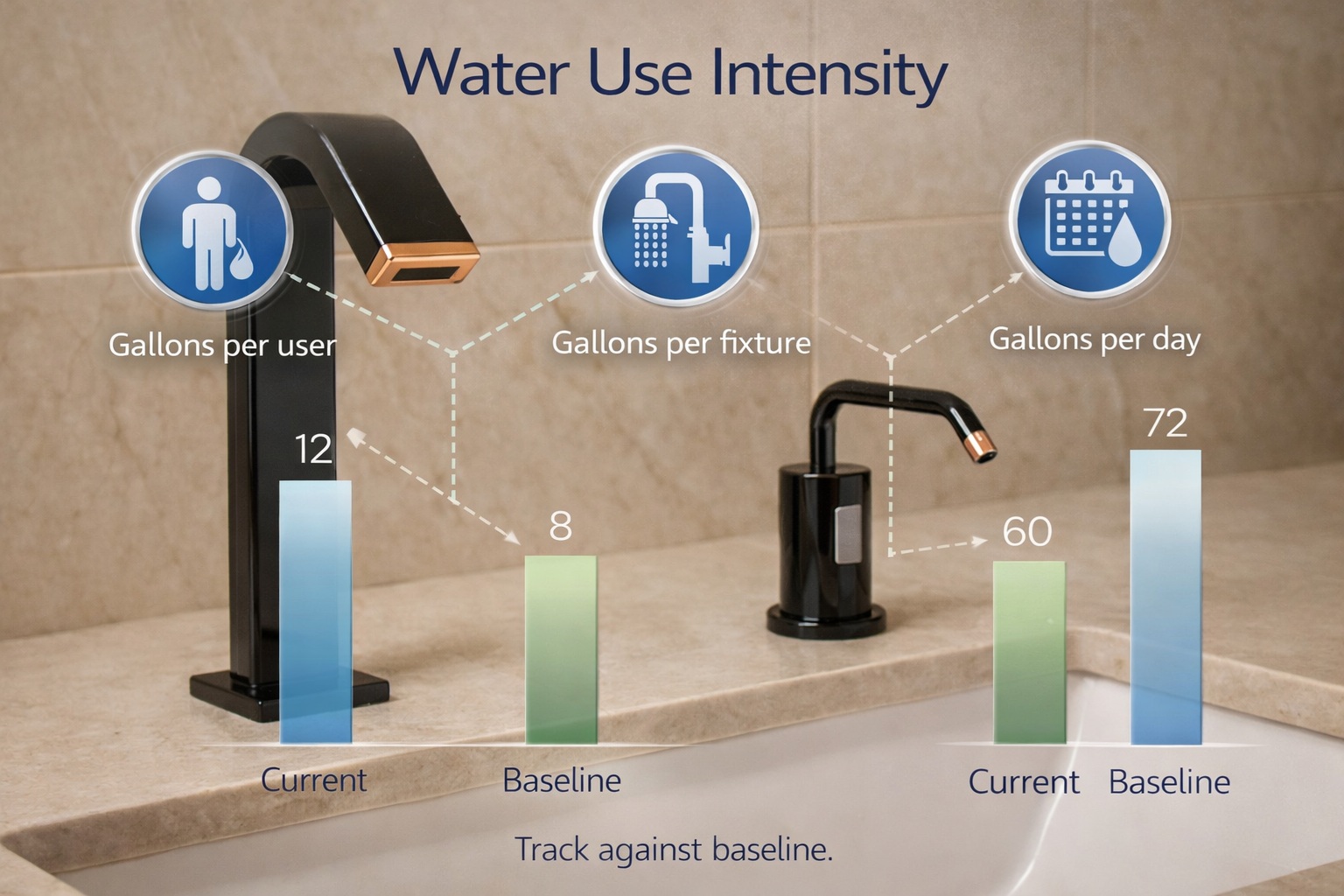

Airports & Transit

Commercial Touchless Faucet video thumbnail

Combos reduce queueing and wet floors; supports high daily cycles.

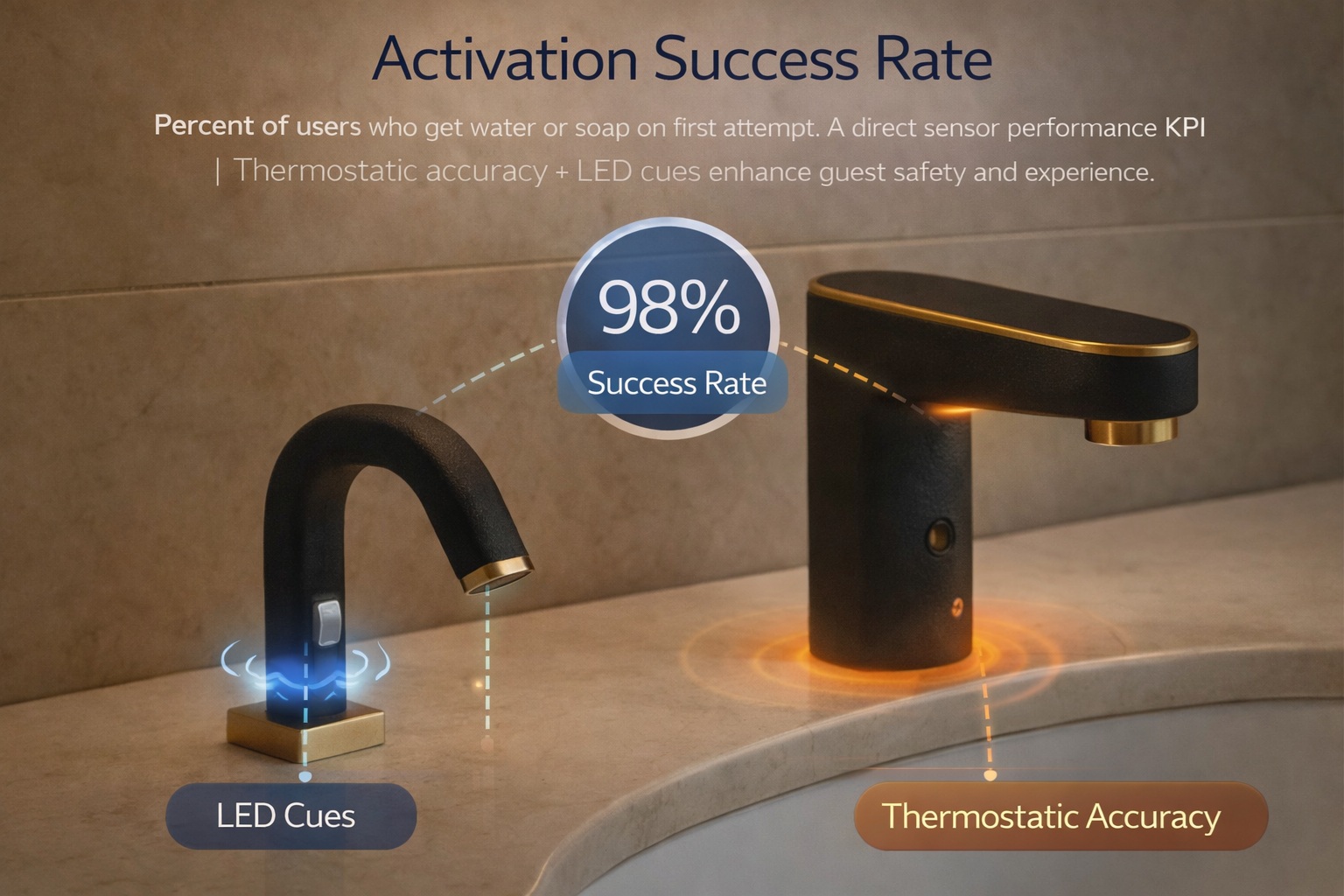

Hospitality & VIP

Thermostatic accuracy + LED cues enhance guest safety and experience.

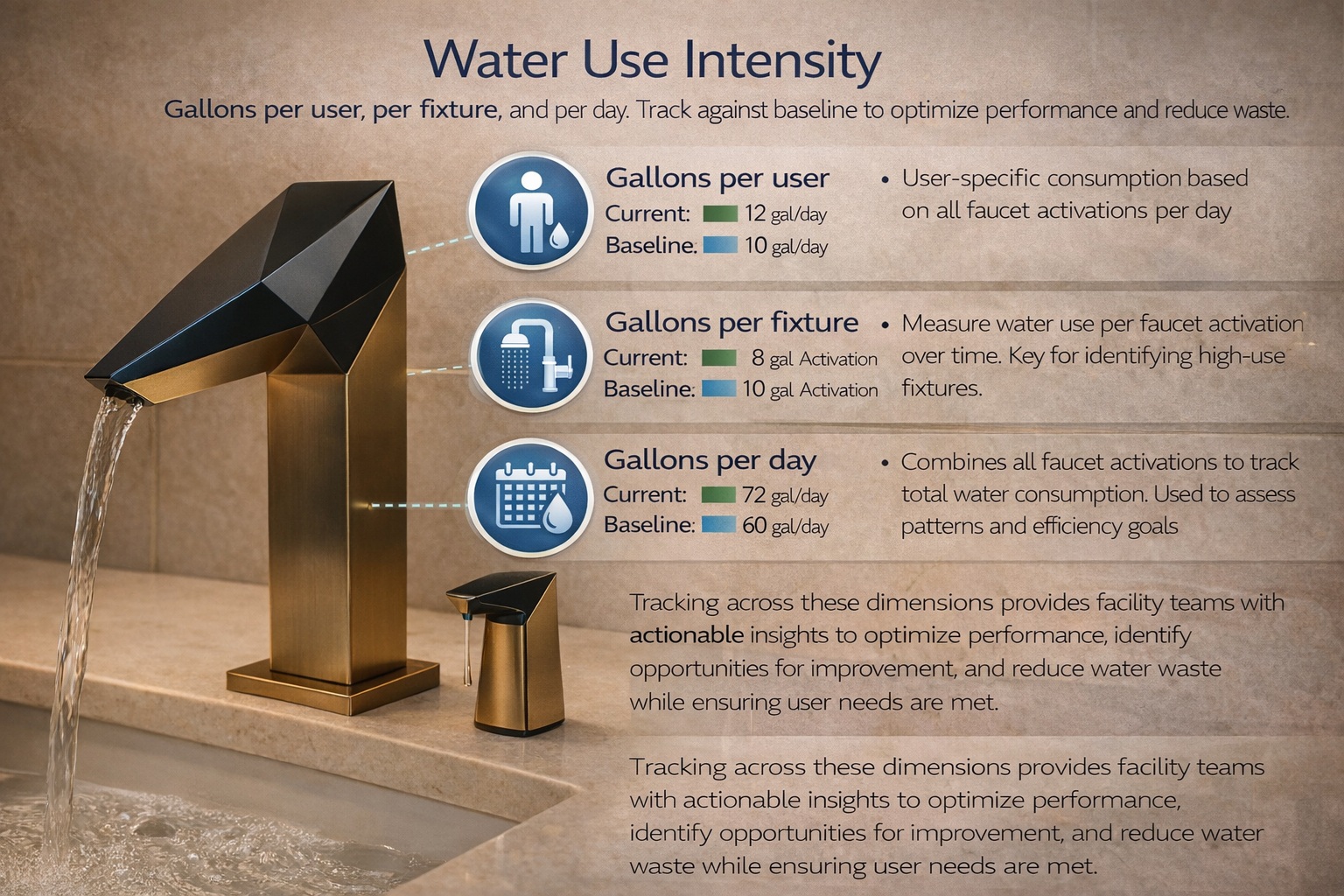

Education & Campuses

Durable finishes, vandal-resistant mounting, and telemetry for facility teams.

Final Field-Ready Guide (Copy into RFP / SOP)

Item Specification
Materials & Finish 316 stainless steel / DZR brass; PVD; IK10 plates; concealed fixings.
Sensing & Electronics Time-of-Flight; activation delay ≤ 200 ms; >100k lux immunity; IP65+.
Hydraulics 0.35–0.5 gpm laminar; ASSE 1070/1017; cold-fail safety.
Protection 200 μm Y-strainer; checks; locking M8/M12 connectors.
Power 100–240 VAC primary; battery failover ≥ 400k activations; optional PoE.
Telemetry BACnet/IP / Modbus TCP / MQTT; audit log.
Health & Safety Auto-purge & thermal disinfection; tamper-proof settings; ADA & WaterSense compliant.
KPIs (Targets) Delay ≤ 200 ms • Faults ≤ 0.25%/mo • Savings ≥ 30% • Battery ≥ 400k activations.

Pilot → Fleet

Pilot

  • Deploy 50–100 fixtures across 2–3 zones.
  • Instrument KPIs; track downtime, clogs, complaints.
  • Tune dwell; schedule purge & thermal routines.

Train & Validate

  • QR-linked SOP videos for techs & custodial.
  • Quarterly KPI review with BMS dashboards.
  • Document adjustments; lock configs (RBAC).

Scale

  • Scale by zone with CMMS.
  • Maintain 5–10% spares for critical uptime.
  • Periodic health checks & firmware signing.
