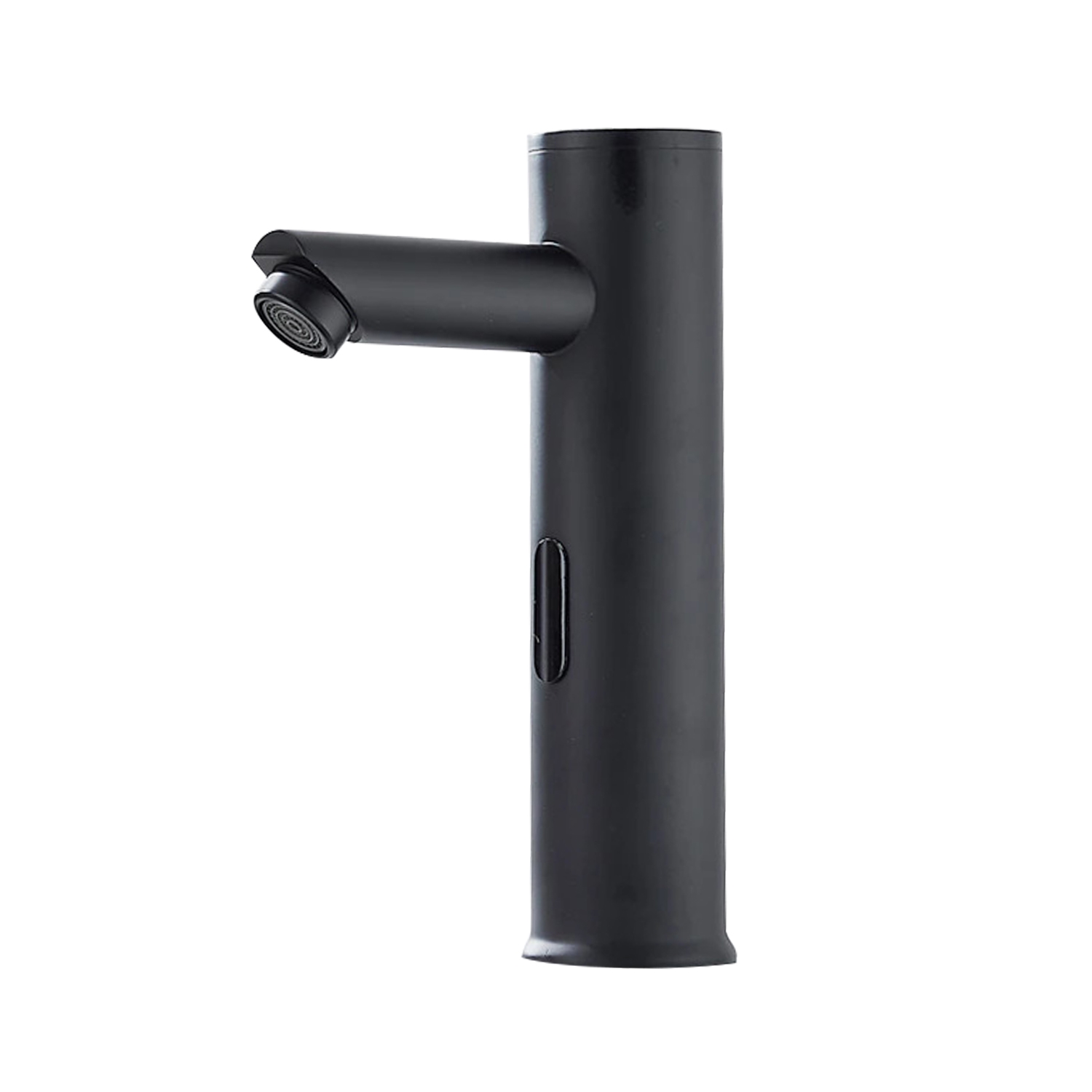

Fontana Tall Matte Black Commercial Motion Sensor Faucet

Tall Matte Black Commercial Motion Sensor Faucet is developed for commercial washroom applications requiring elevated spout clearance, hands-free functionality, and modern architectural styling. The tall-profile configuration ameliorates splash-back dispersion, user-access restrictions, sink overcrowding, and sanitation concerns associated with conventional low-clearance faucet designs. Inferior motion-sensor faucets frequently encounter activation blind zones, finish fading, electronic instability, delayed shutoff response, and pressure inconsistencies that increase operational disruptions. Commercial-grade sensor technology and robust hydraulic engineering ensure accurate user detection and controlled flow performance. Recommended for healthcare facilities, hospitality developments, executive office buildings, educational campuses, and public restroom infrastructures.

Fontana Tall Matte Black Commercial Motion Sensor Faucet Features:

• Brand Name: fontanatouchlessfaucets®
• Model Number: FSF10117
• Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
• Auto Shutoff: 30 Seconds (Factory set, can be adjusted)
• Finish: Black
• Material: Solid Brass
• Solenoid Enclosure: Water Resistant
• Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
• Battery Type: 4*AA Alkaline Batteries
• Diameter of Inlet Pipe: DN15
• Diameter of Outlet Pipe: DN15
• Water supply Pipe Size: DN15
• Water Pressure: 0.05Mpa-0.7Mpa
• Power and Voltage: DC.6V/AC.220V-50/60Hz
• Power Consumption: 0.5MW
• Detection Zone: 25cm/10" (Factory set, based on standard inductive board)
• Ambient Temperature: 1-45°C/33.8-113°F
• Degree of Protection by Enclosure: 1P56
• Operational Water Pressure Range: 0.05-0.6MPa
• Flow Rate: Available Flow Rate From 0.5 to
• BIM Touchless Faucet File: This touchless restroom faucet is available in Revit Family & BIM Object File for easy specifications.
• Usage: Commercial
