Architect’s Complete Guide — Commercial Restroom Fixtures (FontanaShowers)

Intro Core Principles Venue Applications Fixture Categories Fontana Models Spec Samples Why this works

Core Principles: What to Prioritize

Accessibility & Code Compliance

ADA clearances, ≤34" AFF lavs, reachable controls, one-handed operation.

Access Board ADA.gov

Hygiene & Touchless Technology

Sensor-activated fittings, integrated wash/soap/dry, low-touch interfaces.

Sloan Bradley WashBar

Water & Energy Efficiency

Public lavs at 0.5 gpm (≤1.5 gpm in guestrooms); toilets ≤1.28 gpf (WaterSense).

TOTO ECOPOWER US EPA WaterSense

Safety & Comfort

ASSE 1070 anti-scald mixing at lavs; IP-rated electronics in splash zones.

ASSE 1070 (overview) IEC 60529 (IP)

Durability & Vandal Resistance

Brass bodies, resilient finishes, tamper-resistant outlets and fasteners.

Maintenance & Serviceability

Top-fill multi-feed soap, battery diagnostics, standardized parts, BIM docs.

ASI EZ-Fill

Venue-Specific Applications

Hotels

Public lavs with premium finish sensors (0.5 gpm); guestrooms ≤1.5 gpm; ASSE 1070 mixing upstream of the sensor faucet.

Airports / Transit

Touch-free lavs at 0.35–0.5 gpm; integrated wash-bar stations; multi-feed soap; sensor-flush toilets.

Offices

WaterSense lavs & toilets; hydropower faucets (maintenance-light); cost-optimized standard floors; luxe finishes at exec cores.

Healthcare

Laminar flow outlets in patient zones; ASSE 1070 required; disinfectable surfaces; top-fill soap systems.

Fixture Categories & Top Brands

A) Sensor (Touchless) Lavatory Faucets

0.5 gpm flow, adjustable sensors/timeouts, vandal-resistant outlets, deck/wall mounts, hydropower options.

Fontana Touchless (all) Sloan Optima TOTO ECOPOWER Zurn Hydro•X

B) Soap • C) Flushometers • D) Integrated • E) Accessories

Soap: Touchless, top-fill, multi-feed up to 6 dispensers; level indicators (Bradley / ASI).

Flush: WaterSense ≤1.28 gpf; compatible valve+bowl sets (Sloan / Zurn / American Standard).

Integrated: Wash+Soap+Dry at sink to cut drips and speed queues (Bradley WashBar / Dyson Wash+Dry).

Bradley WashBar Dyson Wash+Dry Bobrick

Curated FontanaShowers / Fontana Touchless Models (25+)

Ururi — FS7997BG (Brushed Gold)

Deck-mount touchless, hospitality-ready.

Les Ulis — FS7046MB (Matte Black)

Gooseneck, 5-year warranty, BIM files.

Couron — FS-1095C (Chrome)

Commercial touchless classic; ADA compliant.

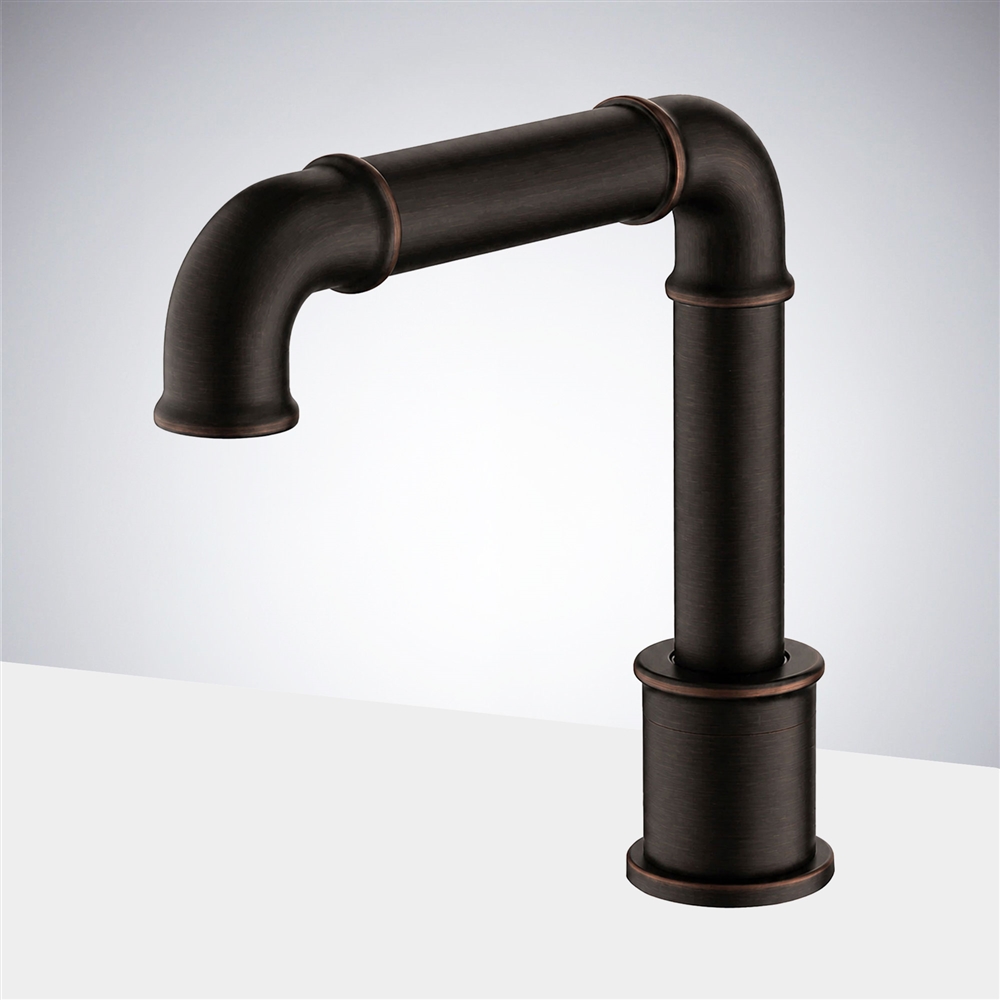

Couron — FS-1095ORB (Oil-Rubbed Bronze)

Finish-match hospitality cores.

Commercial Touchless — FS1095N (Brushed Nickel)

Hands-free, 5-year warranty.

Commercial — FS-SF-MB (Matte Black)

Popular office core spec.

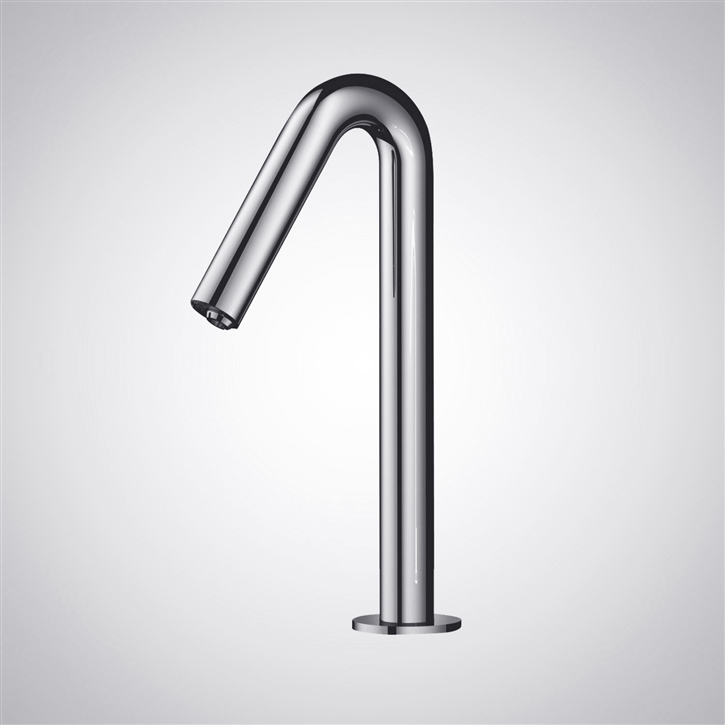

MotionSense — FS-13176-CR (Chrome)

Clean, contemporary profile.

FS10232 — Faucet + Soap (Br. Nickel)

Touchless pair for banks of lavs.

FS18260 — Faucet + Soap (Chrome)

Hygiene + service efficiency.

Commercial — FS1095-S-DORB (MB)

Dark, vandal-resistant option.

Loiret — FS1325-S-G (Brushed Gold)

Hospitality & HQ finish match.

Tivoli — FS-1095MB (Matte Black)

Modern, strong presence.

Rennes — FS1024ORB (Matte Black)

Commercial motion sensor.

Loiret — FS1099MR (Faucet + Soap)

Top-fill friendly pairing.

FS10218C — Faucet + Soap (Chrome)

Touchless sink pair.

Commercial — FS-354-MB (Matte Black)

Instant on/off IR tech.

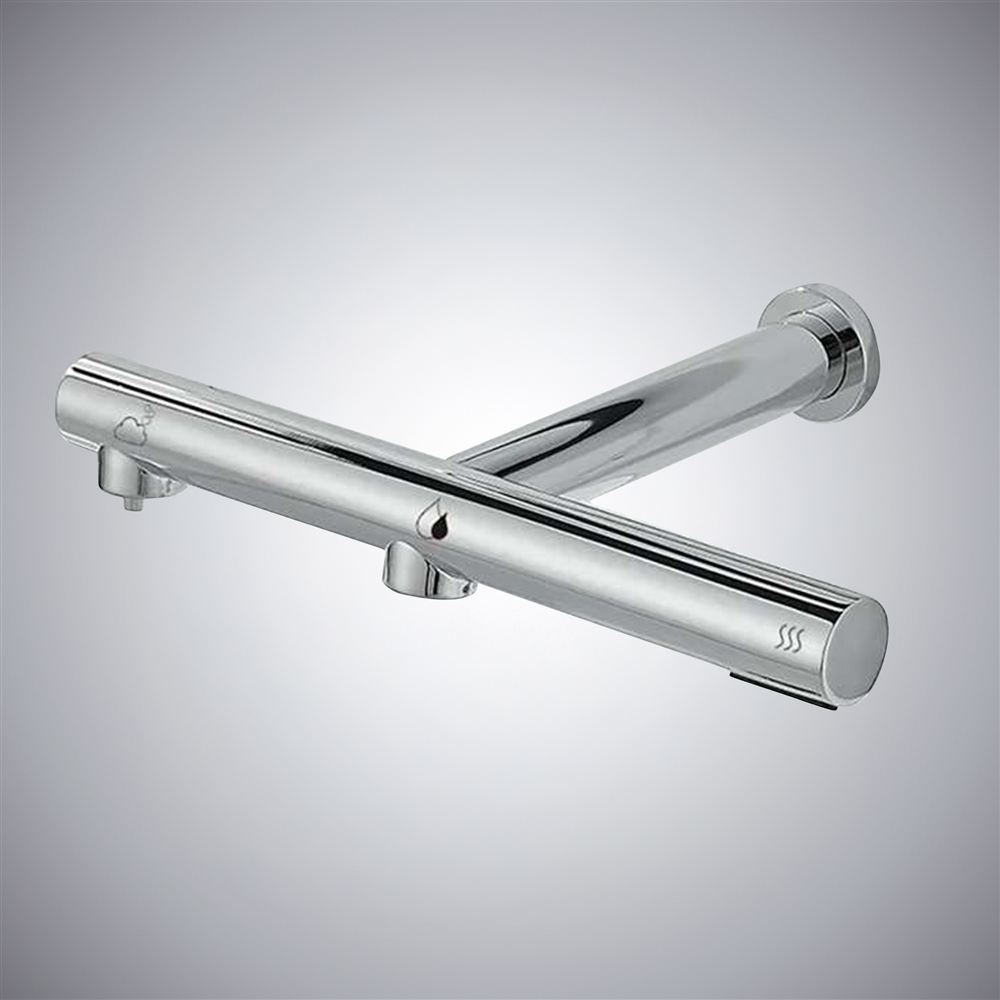

FS3000 — 3-in-1 (Faucet + Soap + Dryer)

Queue-buster station.

Commercial — FS1095 (Brushed Nickel)

Hands-free, ADA compliant.

Commercial — FS-SF-MB-DP (alt)

Alternate view image.

Tivoli — FS-1095MB (alt)

BIM/specs on product page.

Tip: For multi-lav banks, pair faucets with top-fill multi-feed soap systems to cut refill labor.

Putting It All Together — Spec Section Samples (Division 22)

22 42 39 — SENSOR FAUCETS & SOAP SYSTEMS (Commercial Lavatories)

Basis of Design: FontanaShowers sensor faucets — select finish per schedule (e.g., Couron FS-1095C, Tivoli FS-1095MB, Les Ulis FS7046MB). Provide 0.5 gpm aerated or laminar outlet as indicated; adjustable sensor timeout ≤30 s; vandal-resistant outlet. Safety: ASSE 1070 thermostatic mixing at each lav. Power: Battery, AC, or hydropower where indicated. Docs: Revit/BIM models, wiring & rough-ins, O&M.

22 42 23 — FLUSHOMETERS (Water Closets / Urinals)

Performance: WaterSense-rated systems ≤1.28 gpf; sensor-actuated valves; manual override and programmable line-flush. Acceptable: Sloan Royal / Zurn AquaSense (coordinate valve+bowl pairing).

Healthcare Addendum

Patient-facing lavs to include laminar outlets (no aerators); touchless operation; ASSE 1070 mixing; cleaning protocols per IPAC; verify IP rating of under-deck electronics.
