Wall-Mounted Bathroom Sink for Commercial Restrooms

A wall-mounted bathroom sink (also called a wall hung basin or floating sink) is anchored directly to the wall instead of resting on a pedestal or cabinet. This makes it ideal for commercial restrooms where housekeeping, traffic flow, and accessibility are critical.

• Space efficiency: wall hung sinks keep the floor clear, improving circulation and floor cleaning.
• Cleanability: fewer corners and joints at floor level reduce places where dirt and moisture can accumulate.
• ADA-friendly layouts: open knee space below the wall-mounted sink simplifies ADA and local accessibility compliance.
• Serviceability: exposed underside allows quick access to traps, shut-off valves, and sensor power modules.
• System integration: pairs naturally with wall-mount sensor faucets, in-wall carriers, and integrated vanity systems.

These values are typical design starting points. Always validate final dimensions and clearances against the latest ADA guidelines and local building codes for your project jurisdiction.

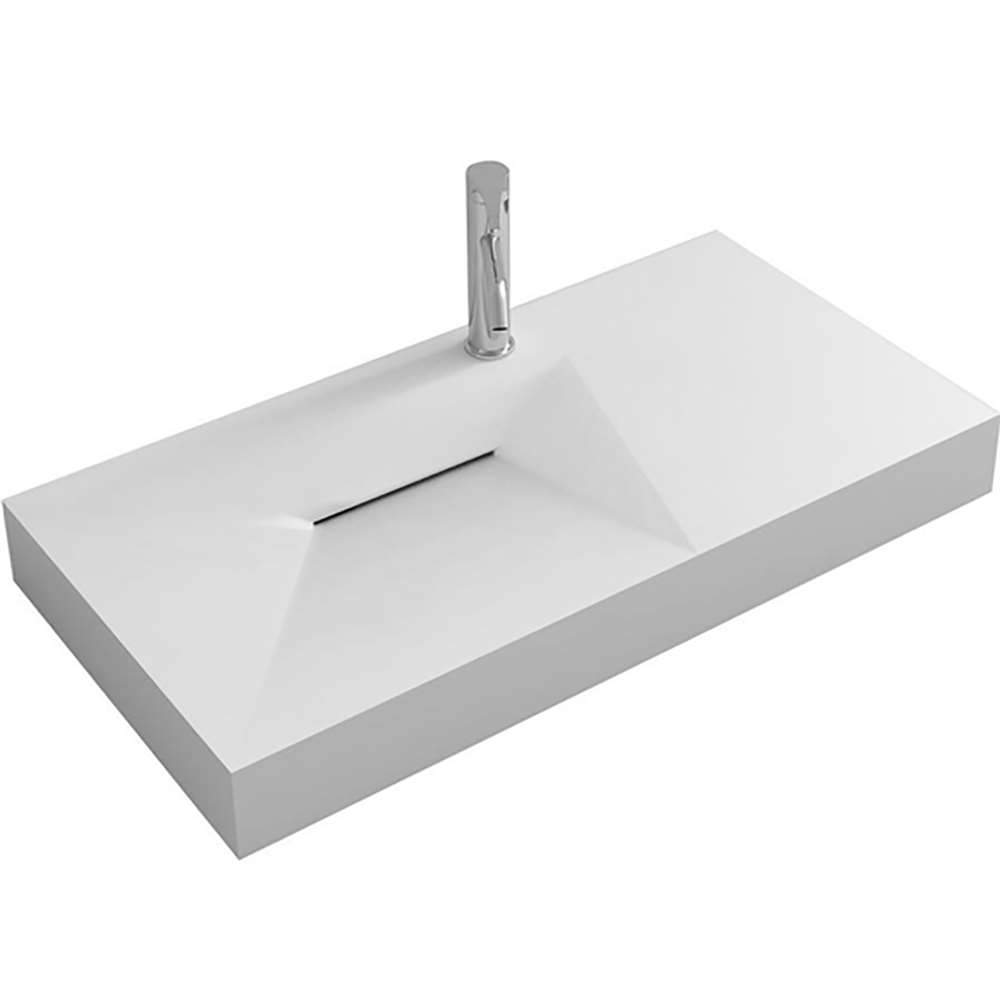

The Modena wall-mounted basin gives designers a wide, shallow bowl with an integrated ramp drain that naturally guides water to the outlet. Its clean geometry works well with both chrome and matte black faucet finishes, and its artificial stone body offers very low water absorption and a non-porous surface that is easy to sanitize.

• Modern wall hung sink with integrated ramp drain for a minimal floating look.
• Artificial stone / solid-surface construction with low water absorption, ideal for commercial use.
• Available in matte or gloss white (confirm current finish options on the product page).
• Suitable for single wall-mount sensor faucet or deck-mount faucet at the ramp area.
• Works in stand-alone wall-hung installations or above a floating vanity shelf.

For carrier selection, match the Modena sink weight (including water) to an in-wall carrier rated for commercial wall-hung basins. Use the BathSelect installation template and coordinate anchor pattern with the general contractor before tile or stone finishes are installed.

1. Structural support & carrier systems

Every wall-mounted bathroom sink must be supported by either adequate wall blocking or a steel carrier engineered for wall-hung basins. Coordinate the carrier with the stud layout, tile pattern, and final rim height early in design.

• Confirm the weight of the wall hung sink (dry and operating) against the carrier rating.
• Use manufacturer templates to locate anchors, supply lines, and drain outlets before closing the wall.
• Provide access to stops and traps for future maintenance without major wall demolition.

2. Plumbing rough-in & faucet alignment

Align the spout centerline of the wall-mount sensor faucet with the center of the basin bowl or ramp. Poor alignment can cause splash or uncomfortable hand positioning for users.

• Check spout reach against the Modena ramp or selected wall hung basin depth.
• Coordinate drain rough-in with carrier openings and floor-level trap clearance.
• Ensure power and transformer locations for sensor faucets meet electrical code and are accessible.

3. Material & finish coordination

Match the sink surface with faucet and dispenser finishes so that the full wall-mounted sink station reads as a single coordinated system. BathSelect provides chrome, gold tones, and matte black finishes that pair well with solid white wall-hung basins like the Modena.

4. Documentation, BIM, and submittals

For multi-floor or multi-property projects, download BathSelect spec sheets, installation instructions, and BIM/Revit families for both the wall-mounted bathroom sink and wall-mount sensor faucets, then attach them to the plumbing fixture schedule.

• Coordinate wall-elevation views to avoid conflicts with mirrors, grab bars, and dispensers.
• Include rough-in diagrams and carrier details in your coordination drawings.
• Maintain an as-built record showing final rim heights and fixture centers for each restroom type.
