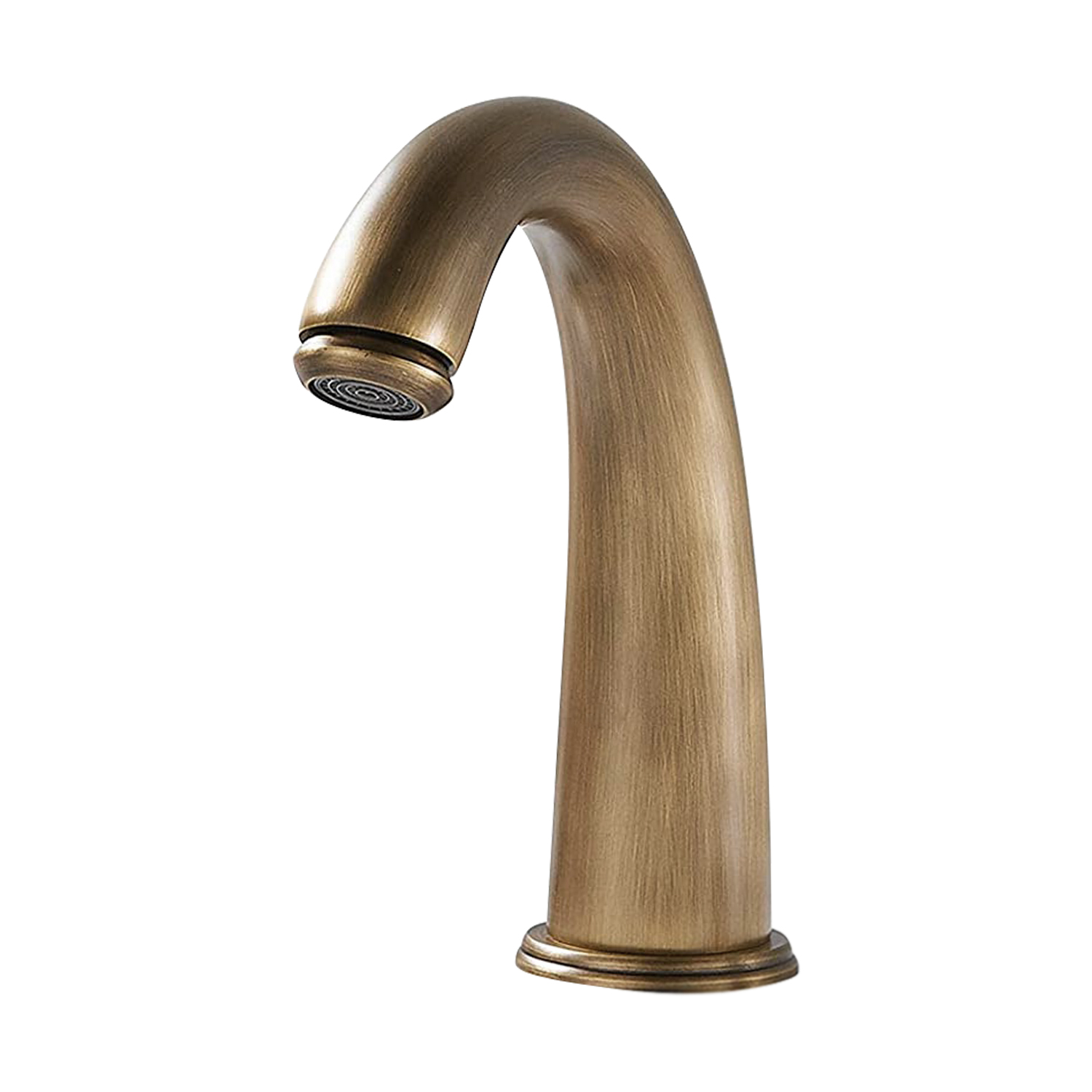

Fontana Commercial Antique Brass Automatic Sensor Faucet

Fontana Commercial Antique Brass Automatic Sensor Faucet is engineered for commercial restroom environments requiring touchless functionality combined with traditional architectural aesthetics. The advanced infrared sensing platform ameliorates microbial cross-contamination, excessive fixture contact, uncontrolled water discharge, and sanitation deficiencies commonly associated with manual faucets. Inferior antique brass sensor fixtures frequently suffer from finish degradation, sensor drift, electronic instability, valve deterioration, and mineral scale accumulation that increase maintenance-intensive servicing and reduce lifecycle value. Commercial-grade brass waterways and optimized activation technology ensure reliable performance under continuous occupancy conditions. Specified for hospitality developments, healthcare facilities, executive buildings, heritage renovations, and institutional restroom infrastructures requiring dependable sensor-operated functionality.

Fontana Commercial Antique Brass Automatic Sensor Faucet Features:

• Brand Name: FontanaShowers®
• Model Number: FS-509AB
• Auto Shutoff: 30 Seconds (Factory set, can be adjusted)
• Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
• Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
• Power Options: AC/DC
• Battery Type: 4 x 'AA' size cells
• Diameter of Inlet Pipe: DN15
• Diameter of Outlet Pipe: DN15
• US Standard Water Supply Pipe Size: DN15 (G1/2")
• Faucet Height: 7.87" (200mm)
• Spout Length: 4.13" (105mm)
• Water Pressure: 0.05Mpa-0.7Mpa
• Power: DC.6V
• Detection Zone: 0.94" (25cm/Factory set, based on standard inductive board)
• Ambient Temperature: 1-45°/33.8-113°F
• Degree of Protection by Enclosure: 1P56
• Flow Rate: Available Flow Rate From 0.5 to
• BIM Touchless Faucet File: This Touchless faucet available in BIM for easy specifications
• Usage: Commercial
