Every hand-detection event initiates a precisely sequenced electromechanical cycle rather than a conventional mechanical faucet action. The Fontana Commercial Automatic Motion Sensor Faucet integrates infrared presence detection, electronic signal processing, solenoid-controlled valve actuation, and automatic shutoff into a coordinated water-delivery architecture. This operating sequence eliminates repetitive handle loading while controlling discharge duration at the point of use. Commercial-duty internal waterways are configured for repetitive activation cycles where sensor consistency, valve response time, sealing integrity, and hydraulic stability directly influence fixture reliability. The system is particularly applicable to airports, hospitals, institutional buildings, universities, hospitality facilities, and other high-demand restroom environments requiring predictable touchless operation.
Hydraulically, fixture performance depends on maintaining repeatable flow characteristics while the electronic control system executes rapid opening and positive shutoff cycles. The Fontana faucet’s sensor-to-solenoid architecture separates user detection from mechanical valve manipulation, reducing wear associated with handles, cartridges, and repeated manual operation. Controlled activation can minimize unnecessary fixture runtime, while automatic termination provides consistent water-management behavior across multi-fixture installations. From a facilities-engineering perspective, critical service considerations include sensor alignment, solenoid response, inlet condition, sealing performance, power continuity, and accessible component maintenance. This architecture makes the faucet technically suitable for specification-driven commercial washrooms where operational consistency and lifecycle maintainability are primary requirements.

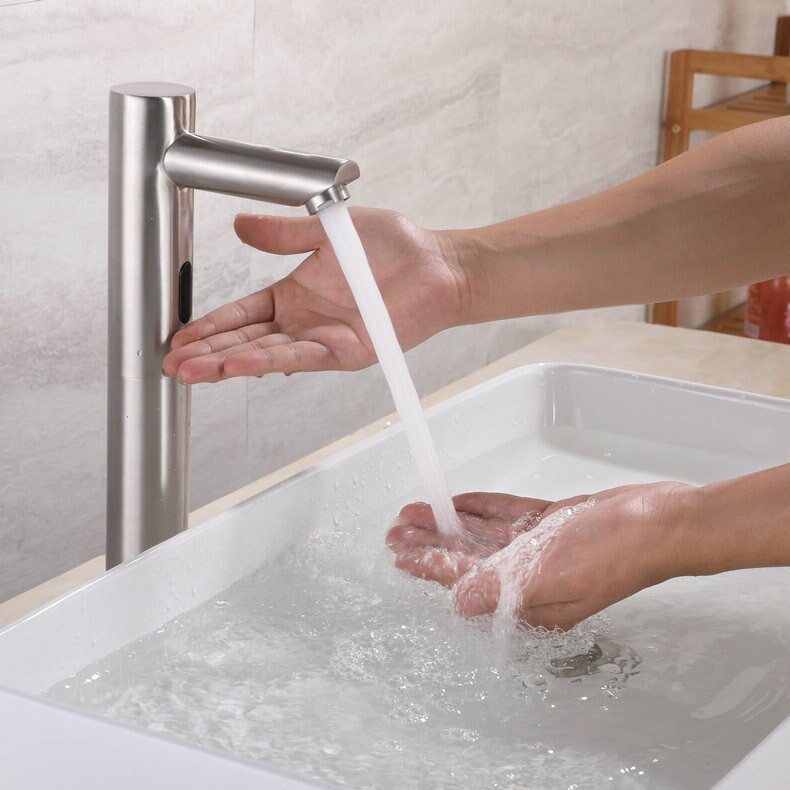

Fontana Tall Commercial Automatic Touch-Free Lavatory Bathroom Sink Sensor Faucet Brushed Nickel Features:
-
Brand Name:
FontanaShowers®
-
Model Number:
FS-289BN
-
Fixture Type:
Automatic Touch-Free Sensor Lavatory Faucet
-
Application:
Commercial Lavatory / Bathroom Sink
-
Faucet Mount:
Single Hole
-
Installation Type:
Deck Mounted
-
Operation:
Automatic Touch-Free Sensor Activation
-
Style:
Contemporary
-
Material:
Brass
-
Surface Treatment:
Brushed
-
Finish:
Brushed Nickel
-
Number of Handles:
None – Touch-Free Operation
-
Water Function:
Single Water Supply
-
Sensor Detection Range:
17–30 cm, Adjustable
-
Inductive Opening Time:
< 0.5 Second
-
Inductive Closing Time:
< 1 Second
-
DC Power Supply:
DC 6V – 4 AA Alkaline Batteries
-
AC Power Supply:
AC 220–240V, 50/60Hz
-
Static Power Consumption:
0.36 mW
-
Working Power Consumption:
0.5 mW
-
Operating Water Pressure:
0.05–0.6 MPa
-
Water Flow Rate:
4–6 L/min at 0.3 MPa
-
Flux:
≥ 0.07 L/s
-
Inlet / Outlet Connection:
G1/2"
-
Operating Temperature:
0.1–50°C
-
Faucet Installation Hole Diameter:
33–35 mm
-
Motor Valve Service Life:
Up to 500,000 Activation Cycles
-
Battery Service Life:
Up to 100,000 Activation Cycles
-
Usage:
Commercial
-
BIM Availability:
BIM File Available for Project Specification and Design Coordination
