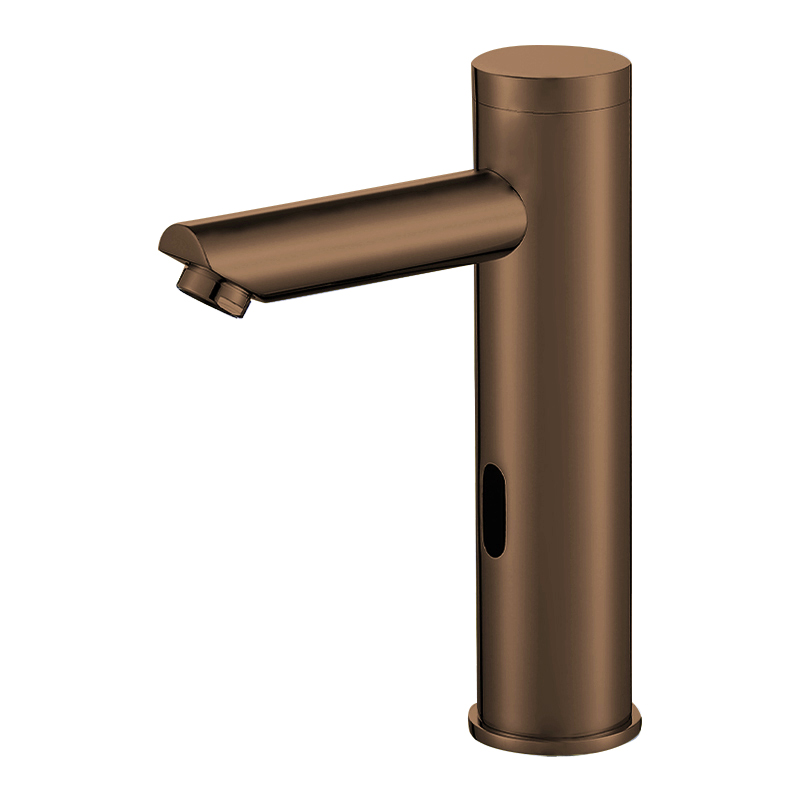

Fontana Commercial Oil Rubbed Bronze Touchless Automatic Sensor Faucet
Fontana Commercial Automatic Sensor Faucet is engineered for commercial restroom systems requiring intelligent touchless activation, precise water management, and enhanced hygiene performance. The advanced infrared sensing architecture ameliorates microbial cross-contact, excessive water consumption, fixture-contact dependency, and sanitation deficiencies commonly associated with manually operated plumbing fixtures. Inferior electronic faucets frequently suffer from sensor drift, hydraulic instability, moisture intrusion, delayed shutoff response, and premature solenoid deterioration that increase maintenance-intensive servicing requirements. Commercial-grade brass waterways and optimized electronic controls ensure dependable activation accuracy and flow consistency throughout continuous occupancy conditions. Ideal for healthcare facilities, hospitality developments, airports, educational institutions, and specification-grade public restroom infrastructures.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.87" (200mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
Color: Oil Rubbed Bronze Finish
|
Infrared sensor operated, touch-free operation
Advanced energy-saving design for long-lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
For longevity of lifetime and to stand against daily wear and tear the Oil Rubbed Bronze finish used is PVD coatings
Sensor Faucet Advantage
Conserves water
Saves energy during the water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
Perfect for individuals with disabilities, the product is designed to be in accordance with ADA (Americans with Disabilities Act) guidelines.
Vandal resistant
Waterproof Components

|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
 BIM File Touchless Faucet
 Specification Sheet
Installation Instructions
Repair & Maintenance Guide
Product Detail Brochure
3D Product Rendering
Installation Detail Video
5-Year Product Warranty
|
|
|
|
|
|
|
