Fontana Leo all-in-one Thermostatic Sensor Faucet B5132 - Also Available in ORB

Leo Solid Brass Motion Sensor Faucet for commercial use

Alternative Views:

Retail Price: $825.40

starting at: $851.24

Price with Selected Options: $825.40

Commercial Orders: Need RFQ Click Here

Stock Status:In Stock

Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5132

		Click to view another Finish
Finish:

Qty:

Description

Technical Specs

Extended Technical Information

Matte Black

Brushed Nickel

Installation Instructions for Fontana Leo All-In-One Thermostatic Sensor Faucet B5132 - Also Available In ORB ---->

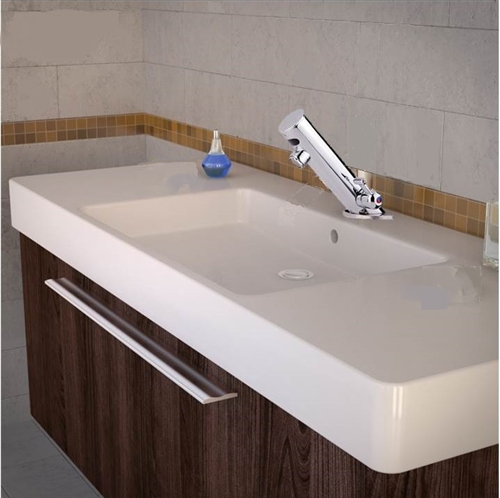

Fontana Leo all-in-one Thermostatic Sensor Faucet B5132 - Also Available in ORB

Leo All-in-One Bathroom Sensor Faucet integrates faucet operation, sensing technology, and water management functionality within a unified commercial-grade platform. Designed to ameliorate fixture overcrowding, contamination exposure, excessive installation complexity, and operational inefficiencies, the system supports modern restroom engineering requirements. Inferior integrated faucets commonly experience electronic instability, sensor misalignment, inconsistent activation response, hydraulic imbalance, and premature component deterioration that compromise lifecycle performance. Advanced infrared controls and durable internal waterways provide dependable touchless functionality under demanding occupancy conditions. Ideal for healthcare facilities, airports, hospitality environments, institutional campuses, and commercial developments seeking efficient restroom modernization with reduced maintenance burdens.

Fontana Leo all-in-one Thermostatic Sensor Faucet B5132 - Also Available in ORB Features:

Brand Name: fontanatouchlessfaucets®
Model Number: B5132
Auto Shutoff: 30 seconds (Factory set, can be adjusted)
Water Pressure: 0.5-7.0 KGS/CM,10-125 PSI
Materials: Solid Brass
Finish: See options
Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
Sensing Range: 4-5" (Factory set, can be adjusted)
Diameter of Inlet Pipe: DN15
Diameter of Outlet Pipe: DN15
Water Pressure: 0.05Mpa-0.7Mpa
Ambient Temperature: 1-45°C/33.8-113°F

Degree of Protection by Enclosure: 1P56

Overall Height: 7"

Spout Height: 3 1/2"

Spout Reach: 4"

Thickness: 1 5/8"

Installation: Deck Mount

Number of Hole: Single Hole

Flow Rate: 1.3 GPM

Flow Rate: Available Flow Rate From 0.5 to

BIM Touchless Faucet File: This Touchless faucet available in BIM for easy specifications

Usage: Commercial restrooms
