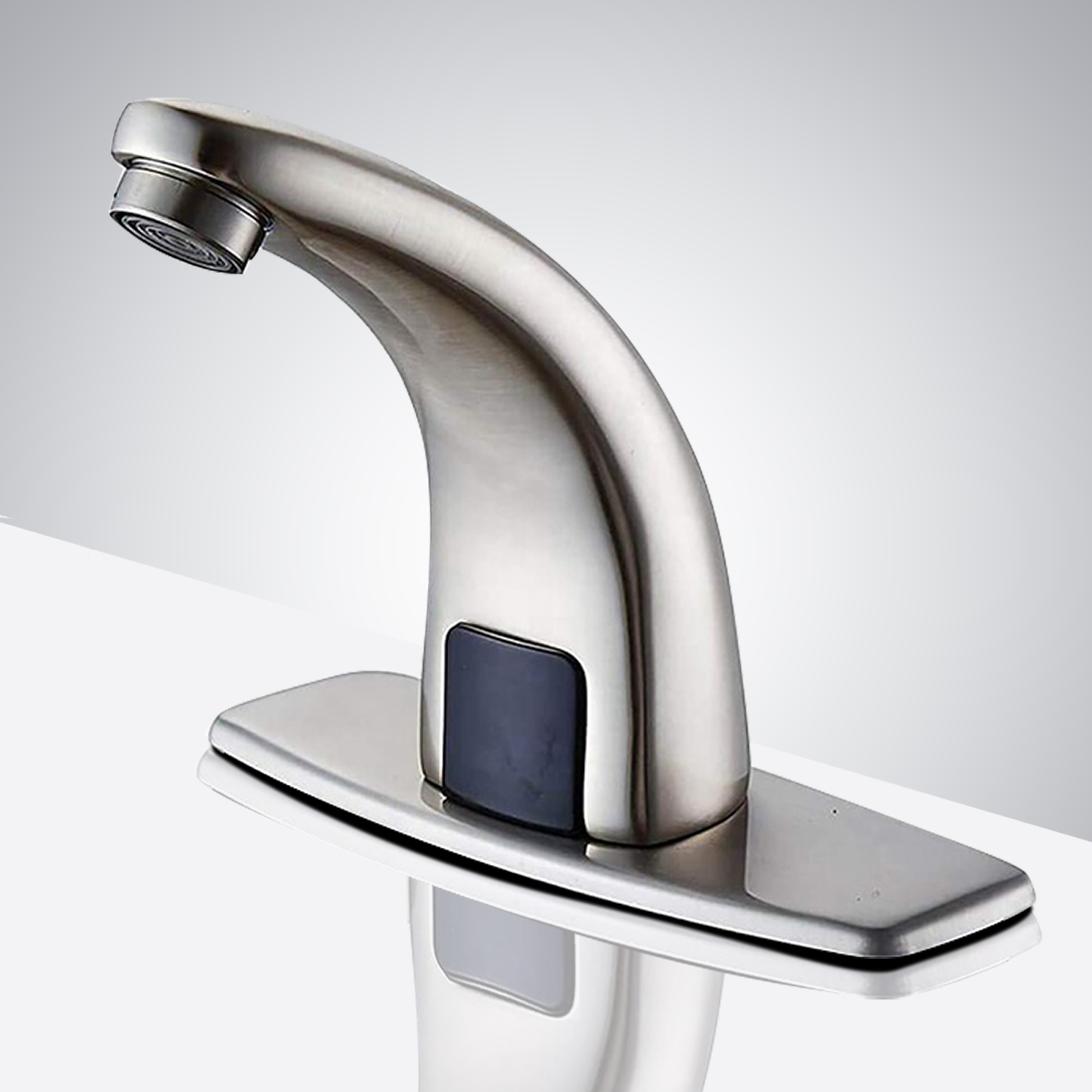

How to install Fontana Napoli Deck Mount Brushed Nickel Finish Commercial Automatic Sensor Faucet | FS-501B

Easy step by steps installation instructions for Sensor Faucet		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

Description:

Type: Basin faucets
Faucet Mount: Single Hole
Style: Contemporary
Feature: Sense Faucets
Number of Handles: none
Installation Type: Deck mounted
Surface Treatment: Polished
Valve Material: Electrovalve
Color: chrome
Type: automatic faucet
Material: brass faucet body, ABS plastic electrical control box, waterproof and moisture-proof
Craft: five-layer galvanized, three-layer polish

Function:

Patent hydropower technology, safety and environmental protection
Fashion colorful panels to match preferences for different groups of people
Long spool life through 500,000 times life test
High standard plating, wear-resistant panels, appearance is always brilliant, beautiful, bright clean like new

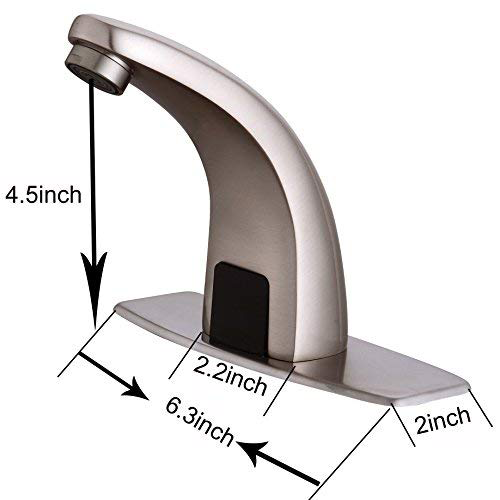

Specifications:

Deck Mount Installation

Battery (DC 6V) Only Control Box
Step 1:		Step 2: (Hot & Cold Connection)
	sensor

Battery (DC 6V) & AC 220V Control Box
Step 3:		Step 4:


Step 5: Flush Debris from waterpipes		Step 6: Hot & Cold Regulator


Step 7:		Step 8: (Correct way for Hose)

1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws. 3. Install the control box to the faucet. 4. Then connect the battery cable to the control box. 5. Make Connections to water supplies. Turn on the water supply and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts. 6. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 7. Turn the faucet on for 1 minute to flush any debris.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

Faucet Specifications

Diameter of inlet pipe	DN15
Diameter of outlet pipe	DN15
Water Pressure	0.05Mpa - 0.7Mpa
Power and Voltage	DC.6V / AC.220V - 50/60Hz
Power Consumption	0.5MW / <2W
Detection Zone	Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature	1 - 45 °C / 33.8 -113 °F
Degree of protection by enclosure	1P56
Battery	4 x 'AA' size cells
Operational water pressure range	0.05 - 0.6MPa
Water supply pipe size	DN15
