Commercial Automatic Hand Soap Dispenser
Wall-Mount Options
Deck-Mount Options
Controlled Delivery
Service Access
Choose the Mounting That Works With the Wash Station
Wall-mounted and deck-mounted automatic soap dispensers should
be selected around the basin, user reach and refill route.
Wall units need suitable backing and housing clearance; deck
units need a compatible opening and accessible components
beneath the counter. Compare the complete installation before
choosing the visible finish.
Read More: Installation and Performance
Show Less
For architects, engineers and contractors, mounting type
is only one part of the specification. Confirm approved
soap formulation, pump compatibility, sensor adjustment
and power requirements for the exact model. Review
wall-mounted dispenser configurations
alongside
deck-mounted soap dispenser assemblies
,
then document the removal route for reservoirs and
replaceable controls.
Test activation with the adjacent faucet and basin
installed. Refill the selected assembly using the approved
procedure and verify its return to service. These checks
help establish a practical equipment schedule rather than
relying on appearance or a generic touchless description.
.jpg)
AEC Selection Criteria
Coordinate the Fixture Above and Below the Finished Surface
Mounting Interface
Check Wall Support or Deck Engagement
Wall-mounted dispensers need a fixing method suited to the
substrate and filled assembly. Deck-mounted dispensers need
a compatible hole, permitted deck thickness and sufficient
fastening access. Review the selected model’s mounting
drawing before construction.
Explore More
-

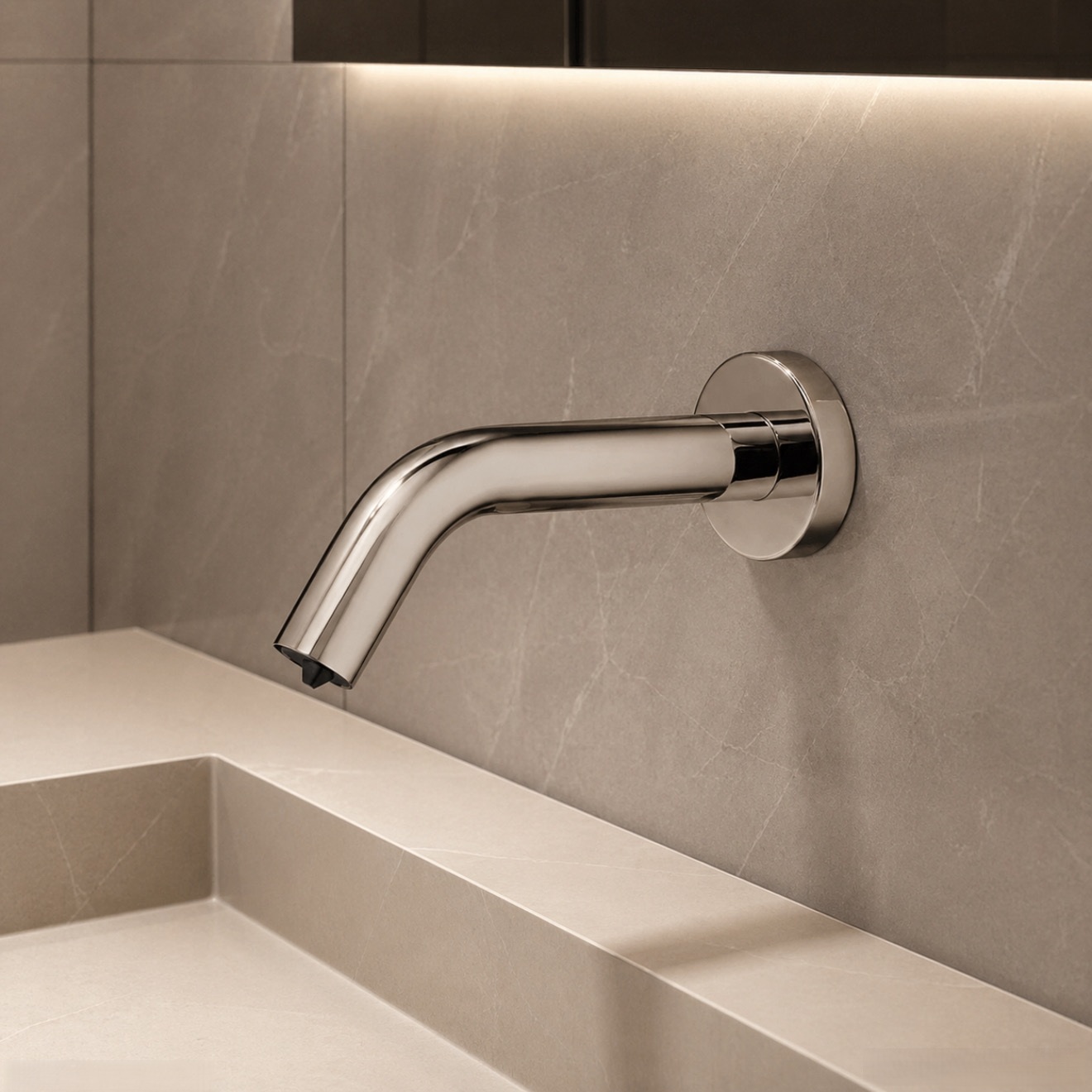

Wall mounting:
coordinate backing, bracket position and concealed services.
-

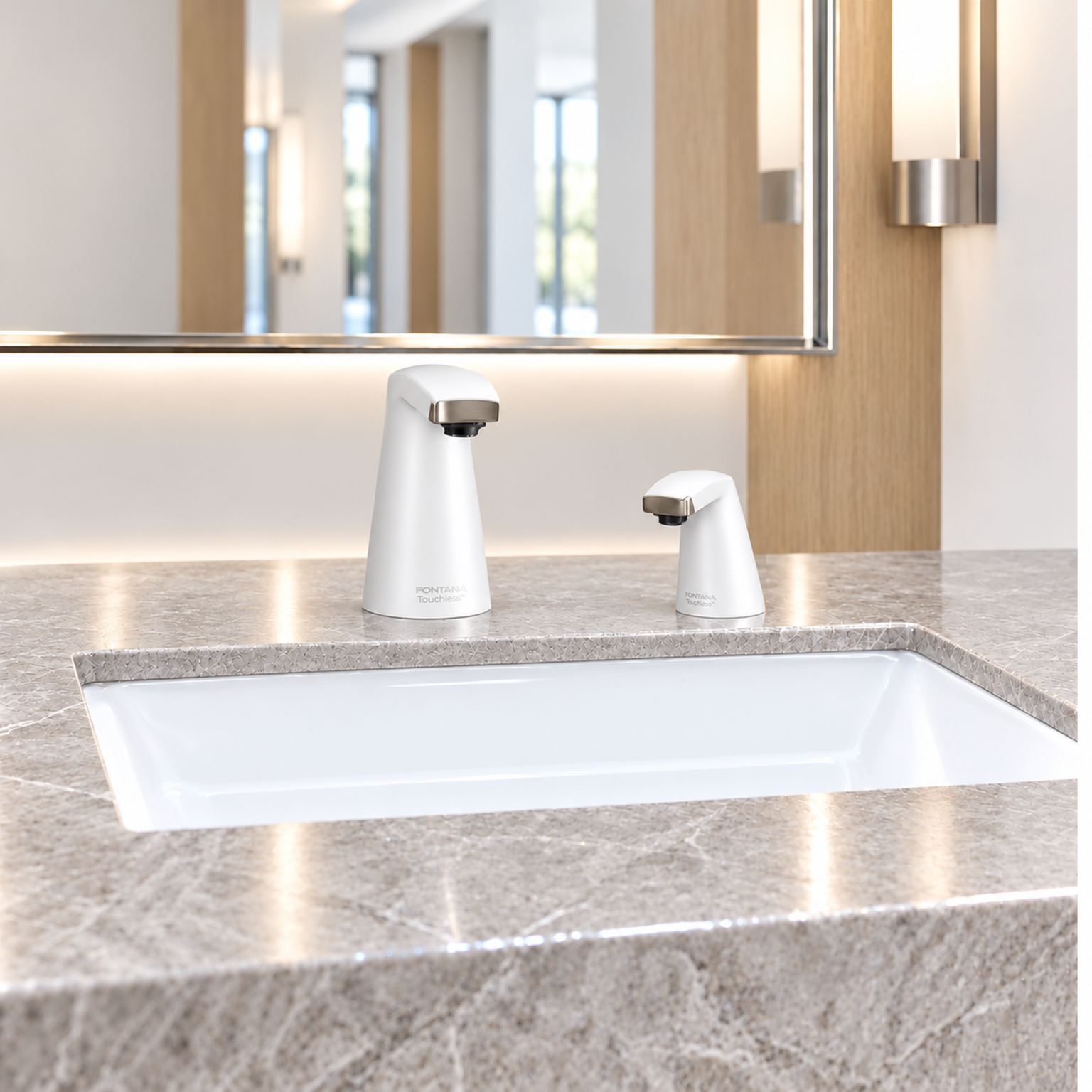

Deck mounting:
confirm shank length, washer seating and retaining-nut access.
-
Both:
detail penetrations and sealing according to the substrate
and manufacturer’s instructions.
Review Installation Documentation →
User Geometry
Place the Outlet Within a Usable Hand Position
For a wall outlet, review reach over any counter obstruction.

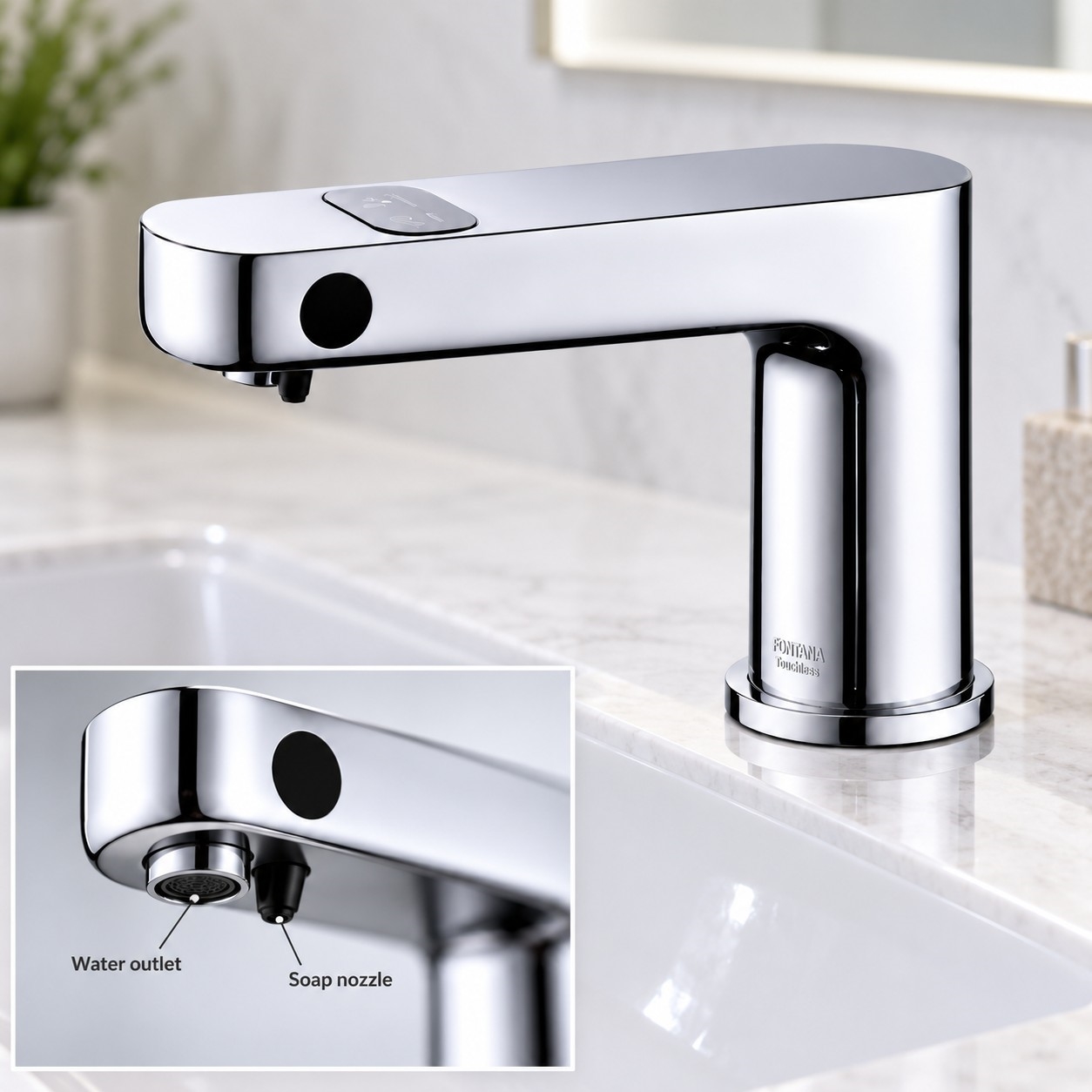

For a deck outlet, coordinate spout position with the basin
rim and adjacent faucet. Assess approach, reach and operability
using the
U.S. Access Board’s guidance
.
Explore More
Mock up both the dispensing position and sensor response
in the finished arrangement. Check normal hand approach,
withdrawal and nearby movement under the installed lighting.
Use only manufacturer-permitted adjustments.
-
Confirm the hand can collect soap without contacting
the housing or basin edge.
-
Check that adjacent faucet use does not cause
unintended soap delivery.
-
Evaluate accessibility for the installed assembly,
including surrounding obstructions.
Refill Logistics
Reserve the Complete Replenishment Route
Wall housings may require front opening or bottle withdrawal.
Deck-mounted models may refill above the counter or use
removable reservoirs below it. Confirm the actual refill
arrangement and ensure staff can complete every step without
moving adjacent fixtures.
Explore More
For healthcare use,
CDC clinical hand-hygiene guidance
advises against adding soap to partially empty dispensers.
Incorporate the approved refill and reservoir-cleaning
method into the operating plan for either mounting type.
-
Identify compatible liquid or foam soap and
permitted substitutions.
-
Confirm any priming step after refill or
cartridge replacement.
-
Keep refill keys, containers and replacement components
accessible to the responsible staff.
Electrical Service
Keep the Power Components Reachable
Confirm whether batteries and controls sit within the wall
housing, beneath the deck or in a separate enclosure.
Coordinate cable entry and the approved supply so routine
replacement does not require dismantling the counter or
opening finished wall materials.
Explore More
-
Verify supply ratings, polarity and permitted cable
routing from the model documentation.
-
Keep under-counter modules clear of required knee
and toe space.
-
Demonstrate low-power indication, replacement access
and restart during commissioning.
Explore Dispenser Fault Diagnosis →
Installation Review
Draw the User Space and the Service Space Together
Show the dispenser with the basin, counter, mirror and cabinetry
in their finished positions. Wall and deck mounting both need a
convenient dispensing point and a practical route for refilling,
power replacement and component removal.
-

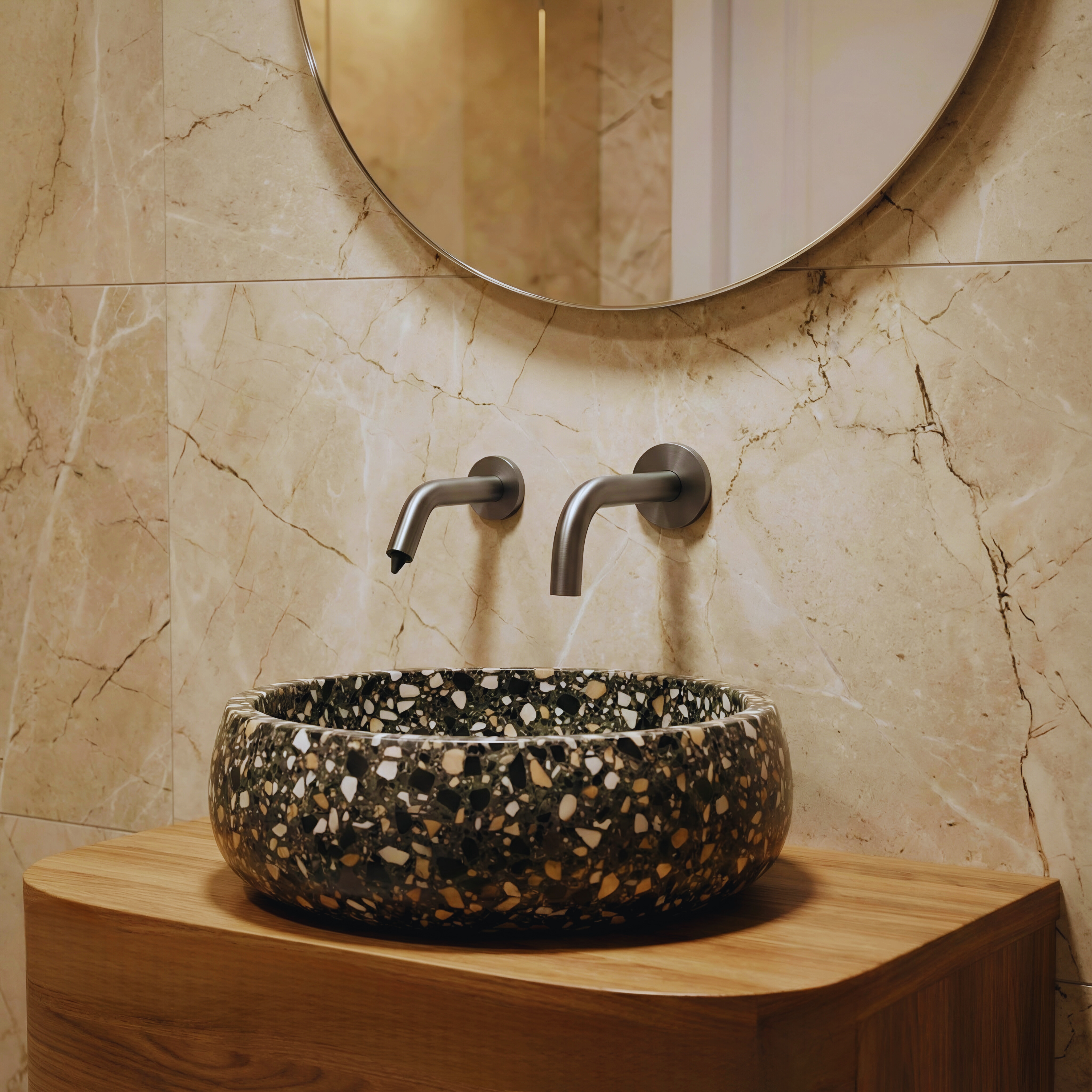

Wall assembly:
show support, outlet location and housing-opening clearance.
-

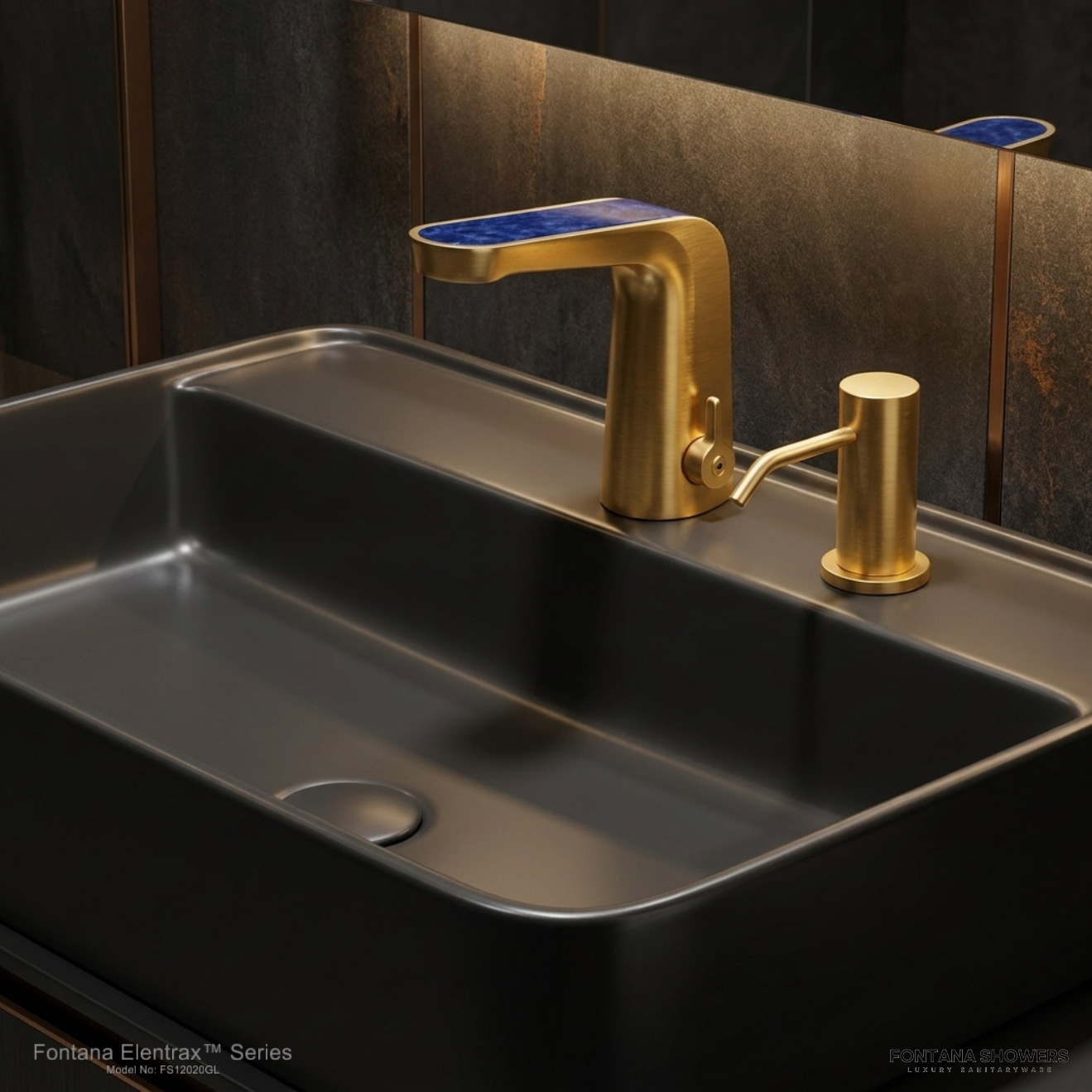

Deck assembly:
show hole geometry, deck thickness and under-counter access.
Explore More: Installation Checks
-
Service clearance:
include the full withdrawal path for bottles, cartridges
and control modules.
-
Water exposure:
assess splash and cleaning conditions against the selected
model’s permitted environment.
-
Commissioning:
test activation, delivery, refill and restart with
adjacent fixtures installed.
Record accepted settings, the approved soap and any corrective
work against the exact installed model. Keep the mounting
drawing and maintenance instructions together for future service.
|
|
WALL MOUNT DISPENSERS
Automatic Wall Mount Hand Soap Dispensers
Automatic wall-mount hand soap dispensers maximize counter space while improving hygiene. Counter-mounted units may create sink congestion, whereas wall-mounted sensor dispensers provide organized installation, easier cleaning, reliable soap delivery, and efficient operation for schools, healthcare facilities, airports, and commercial restrooms.
Commercial Wash Stations · Technical Review
Commercial Soap Dispensers: Wall and Deck Coordination
Wall-Mount Integration
Deck-Mount Geometry
Consumable Compatibility
Service Access
Commercial automatic soap dispensers belong in the coordinated
wash-station assembly, whether mounted on the wall or through
the basin deck. Wall-mounted units require a defined fixing
substrate and a usable dispensing position; deck-mounted units
require a compatible opening, sufficient shank engagement and
an unobstructed service route beneath the counter. Select the
arrangement that fits the architecture and the maintenance
plan together.
For both mounting types, assess the approved soap, repeatable
activation, refill procedure and recovery after servicing.
Compare
commercial automatic soap dispensers
using model documentation and an installed mock-up, then retain
those findings with the equipment schedule.
A reliable restroom depends on coordinated replenishment as much
as electronic activation. At workplaces covered by
OSHA’s general-industry sanitation requirements
,
washing facilities must be sanitary and hand soap or similar
cleansing agents must be provided. Translate that provision into
an operating plan with defined inspection responsibility, available
stock and a response when a dispensing point fails.
Architecture · Engineering · Facility Operations
Resolve Mounting, Delivery and Service as One Assembly
Wall and deck configurations have different physical interfaces,
but both depend on compatible soap, reliable controls and accessible
service components. Resolve these requirements before approving a
model or releasing the mounting detail.
Architectural Coordination
Match the Fixing Detail to the Mounting Type
For wall mounting, establish the substrate, backing and
cover-opening clearance. For deck mounting, confirm the hole
diameter, finished deck thickness and fastening access.
A common visible finish does not make the two installation
details interchangeable.
Explore Mounting Requirements
-
Wall:
coordinate the bracket with reinforcement and
concealed services.
-
Deck:
check permitted clamping thickness, washer seating
and access to the retaining hardware.
-
Both:
maintain the manufacturer’s removal clearances and
detail penetrations for the specified substrate.
Pump and Consumable
Treat Soap Substitution as a Technical Change
A different formulation can alter pump loading, priming and
outlet behavior. Confirm the accepted viscosity range and
wetted-material compatibility. Liquid and foam dispensing
mechanisms should not be treated as interchangeable.
Review Consumable Controls
-
Record the approved formulation and compatible
pump or cartridge.
-
Require manufacturer approval before dilution
or substitution.
-
For foam, assess liquid consumption separately from
the expanded foam volume.
Explore Liquid Soap Configurations →
Delivery Verification
Check Performance Across Reservoir Conditions
Observe delivery after filling, during ordinary use and near
the manufacturer’s refill threshold. Check for air intake,
incomplete delivery or loss of prime without operating the
pump beyond its permitted conditions.
Expand the Test Procedure
-
Keep the formulation and adjustment setting consistent
across observations.
-
Separate the priming sequence from the dose samples
used for acceptance.
-
Record delayed drips and missed activations as
separate findings.
Maintenance Boundaries
Define What Cleaning Can Reach
For wall-mounted units, assess the housing perimeter and
surface behind the bracket. For deck-mounted units, assess
the base joint, nozzle underside and nearby splash zone.
Confirm cleaning compatibility for the complete assembly
rather than the visible finish alone.
Inspect Cleaning Interfaces
-
Retain permitted agents, dilution and application
methods for each exposed material.
-
Confirm how wall brackets, deck bases and removable
housings are cleaned without compromising seals
or fixings.
-
Keep liquid away from openings according to the
installation and care instructions.
Power and Service
Keep Controls Accessible in Either Configuration
Wall-mounted power components may sit within the housing
or in a separate service location; deck-mounted controls may
sit beneath the counter. Confirm the selected model’s actual
arrangement and preserve access to batteries, adapters,
pumps and connections.
Plan the Recovery Route
-
Distinguish empty soap, low power, blocked outlet and
sensor faults in the operating guide.
-
Identify replaceable modules and whether re-priming
is required after exchange.
-
Check the removal route for a wall enclosure or an
under-counter module with adjacent fixtures in place.
Review Multi-Station Supply Options →
Accessible Use
Recheck Reach After the Room Is Furnished
Assess wall-mounted dispensing points against the permitted
approach and any counter obstruction. For deck-mounted
outlets, review horizontal reach and the user’s hand position
relative to the basin. Evaluate both using the
U.S. Access Board’s reach and operability guidance
.
Review the Occupied Layout
-
Keep the permitted approach clear in the
housekeeping plan.
-
Check the wall outlet or deck spout’s usable activation
position, rather than the fixture’s overall height.
-
Confirm adjacent accessories do not force an
excessive or obstructed reach.
Automatic hand soap dispensing is part of a handwashing process,
not a substitute for an approved hygiene protocol. For healthcare
use,
CDC clinical guidance
advises against adding soap to partially empty dispensers.
Coordinate refill practice, reservoir cleaning and the approved
soap with the facility’s infection-prevention team; electronic
activation alone does not establish infection-control performance.
Convert Observations Into an Acceptance Record
Agree the acceptance criteria before testing. Use the installed
dispenser, approved soap and finished surroundings, and record
adjustments so the maintenance team can reproduce the
accepted setup.
|
Verification Item
|
Field Check
|
Handover Record
|
|
Repeat Activation
|
Check consecutive approaches and hand withdrawal under
normal room lighting.
|
Settings, missed activations and unintended repeat doses.
|
|
Delivered Liquid
|
Measure consumption over an agreed sample of completed cycles.
|
Soap identity, measurement method, cycle count and
observed variation.
|
|
Idle Recovery
|
Check the first dose after the agreed idle period.
|
Delay, incomplete delivery and any priming action.
|
|
Refill and Restart
|
Perform the approved refill procedure and return
the unit to service.
|
Tools, cleaning steps, priming sequence and restart outcome.
|
|
Power Service
|
Demonstrate the permitted battery or supply-service procedure.
|
Power component reference, indicators and reset instructions.
|
|
Finished Installation
|
Inspect wall fixings or deck fasteners, component removal,
approach and accessory clearances.
|
Installed location, access photographs and
outstanding corrections.
|
Repeat Activation
Field Check
Check consecutive approaches and hand withdrawal under normal room lighting.
Handover Record
Settings, missed activations and unintended repeat doses.
Delivered Liquid
Field Check
Measure consumption over an agreed sample of completed cycles.
Handover Record
Soap identity, measurement method, cycle count and observed variation.
Idle Recovery
Field Check
Check the first dose after the agreed idle period.
Handover Record
Delay, incomplete delivery and any priming action.
Refill and Restart
Field Check
Perform the approved refill procedure and return the unit to service.
Handover Record
Tools, cleaning steps, priming sequence and restart outcome.
Power Service
Field Check
Demonstrate the permitted battery or supply-service procedure.
Handover Record
Power component reference, indicators and reset instructions.
Finished Installation
Field Check
Inspect wall fixings or deck fasteners, component removal, approach and accessory clearances.
Handover Record
Installed location, access photographs and outstanding corrections.
Technical Insights: Estimate Refill Demand
Calculate With Usable Capacity
Use the liquid volume that can actually be dispensed before
the approved refill threshold, rather than the nominal
container size.
Estimated service days = usable liquid capacity ÷
(measured liquid dose × expected daily dispensing cycles)
Keep capacity and dose in the same volume units. Allow
separately for priming, consumption variability and a service
reserve. Validate the estimate after occupancy.
Keep the Measurement Traceable
A mass-based check can estimate liquid consumption without
relying on foam expansion. Where conversion to volume is
needed, use the approved soap’s documented density and
consistent units.
-
Record the balance resolution and the sampled cycle count.
-
Keep priming and spills separate from the measured sample.
-
Compare configurations using the same approved soap
and operating assumptions.
Mounting position and soap-supply architecture are separate choices.
A wall-mounted or
deck-mounted soap dispenser
may use a local reservoir or a compatible shared-supply arrangement.
Compare reservoir location, permitted tubing routes and component-removal
access for the selected system; do not infer them from the visible
outlet alone.
Wall-Mounted vs. Deck-Mounted: Choose by the Service Route
Coordinate each option with the finished wall, basin and cabinetry.
The appropriate configuration is the one whose dispensing position
and service route both work in the completed room.

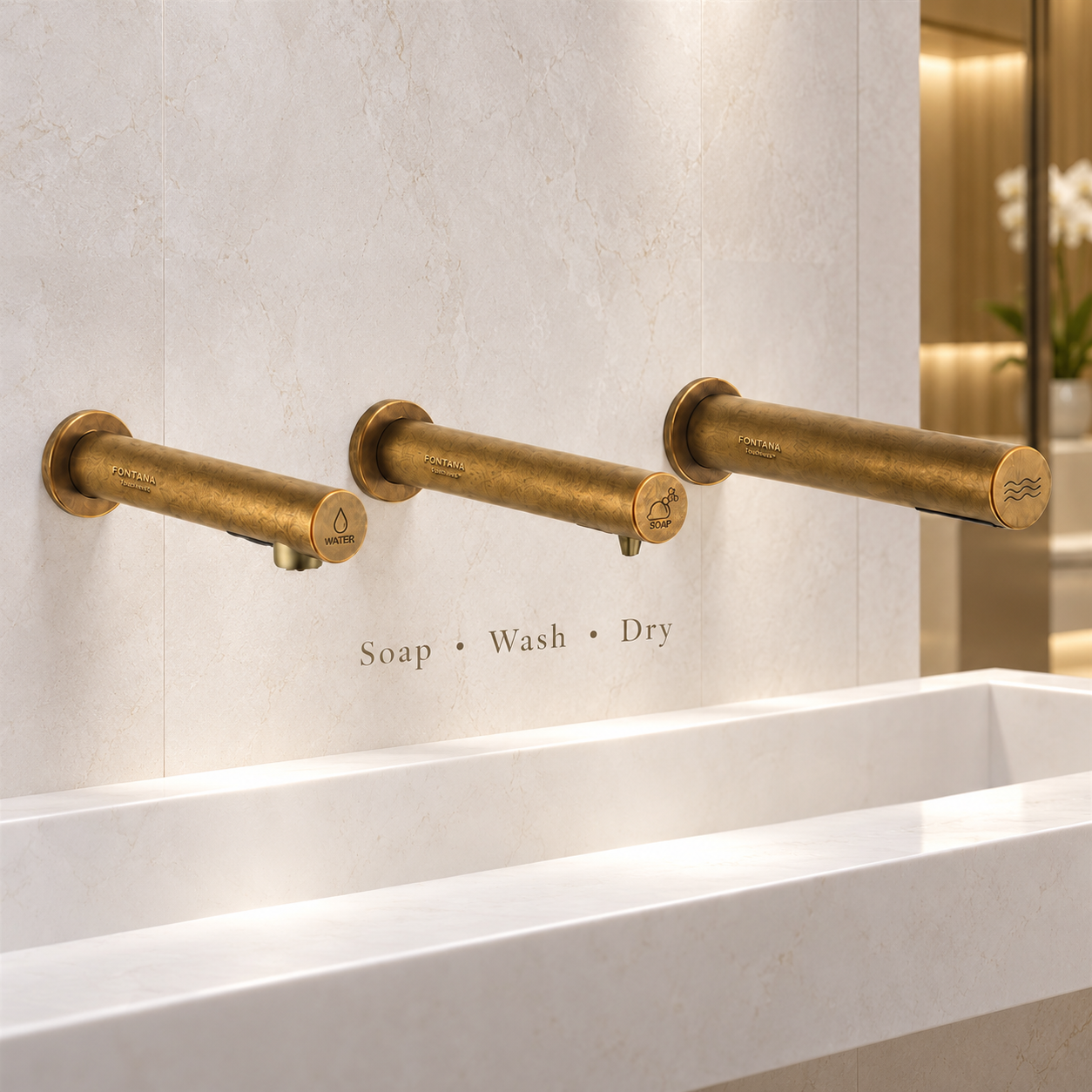

Wall-Mounted Automatic Soap Dispensers
Wall mounting can keep the basin deck clear of dispenser
hardware. Its success depends on the dispensing position,
suitable backing and space to open or remove the housing.
Coordinate mirrors, partitions and trims before fixing
the bracket.
-
Mounting:
verify the substrate, reinforcement and approved fixing pattern.
-
Refilling:
reserve cover movement and cartridge or bottle withdrawal space.
-
Operation:
check the hand position and detection zone against the
finished basin.
-
Servicing:
retain access to the power components and any separate
supply enclosure.
Explore Wall-Mounted Dispensers →

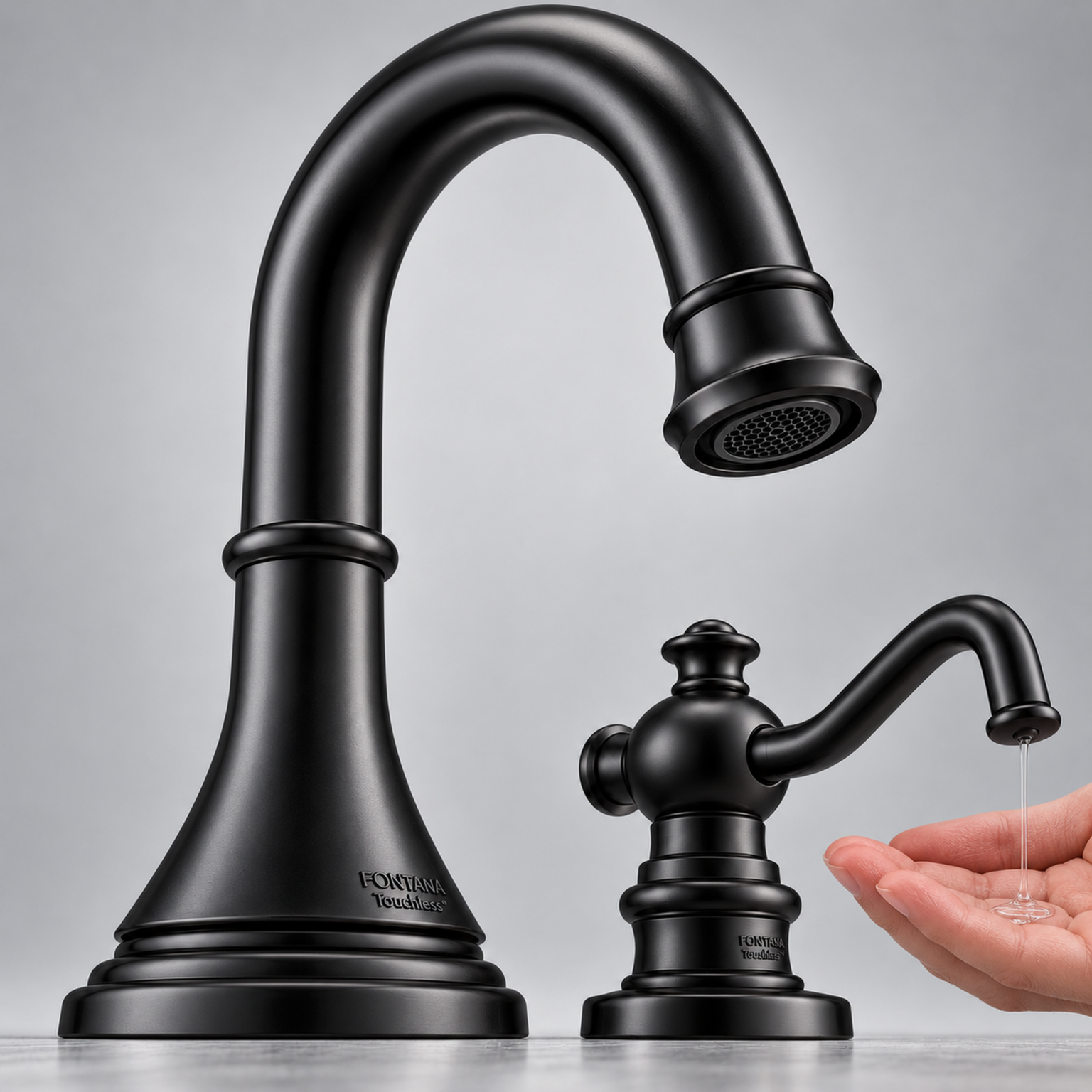

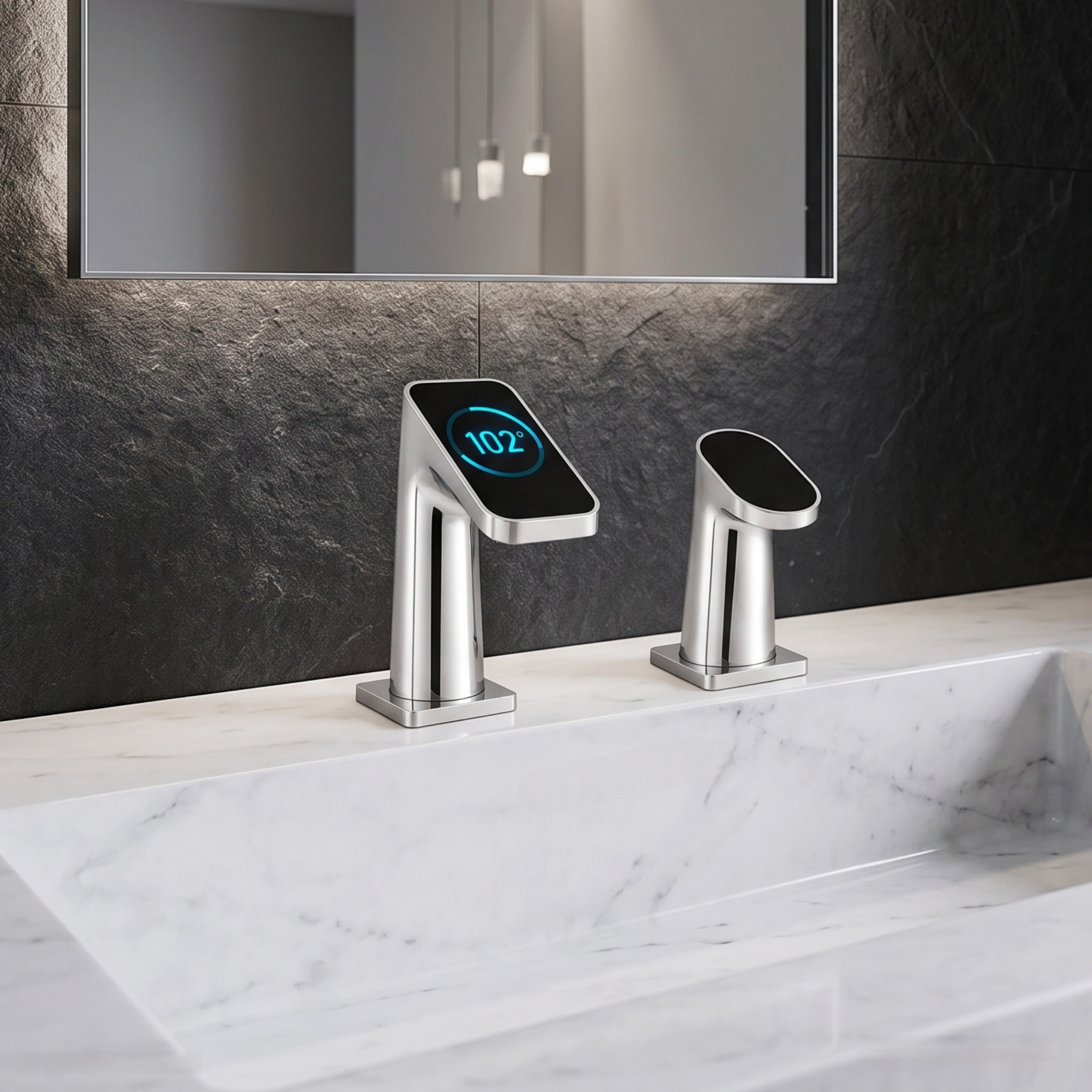

Deck-Mounted Automatic Soap Dispensers
Deck mounting locates the outlet at the wash station while
placing reservoirs and controls according to the selected
assembly. Confirm the basin or countertop opening and
coordinate concealed parts with the waste pipe, supply
valves and cabinetry.
-
Mounting:
check hole diameter, deck thickness and available
shank engagement.
-
Refilling:
confirm top-fill access or the under-counter
bottle-removal route.
-
Operation:
coordinate spout reach, basin rim and adjacent faucet sensing.
-
Servicing:
keep components accessible and outside required knee
and toe clearances.
Explore Deck-Mounted Dispensers →
Let the Occupancy Pattern Set the Operating Plan
Commercial soap dispenser selection should reflect who uses the room,
when demand concentrates and who responds to a fault. Carry those
assumptions into the fixture schedule and operating instructions.

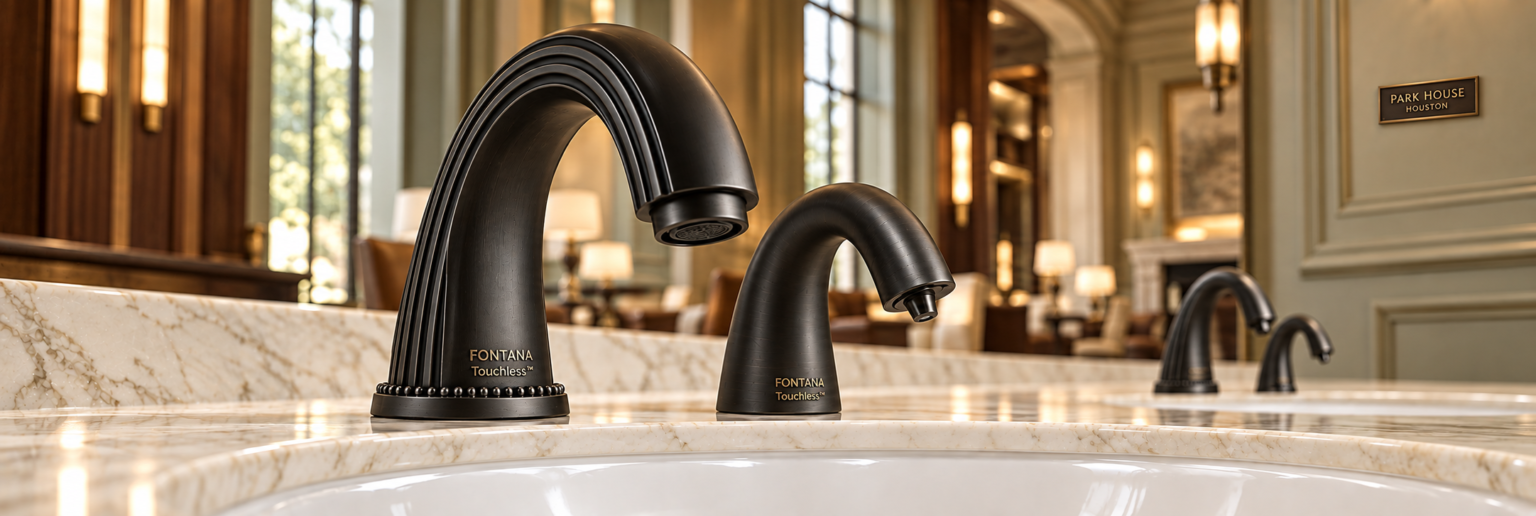

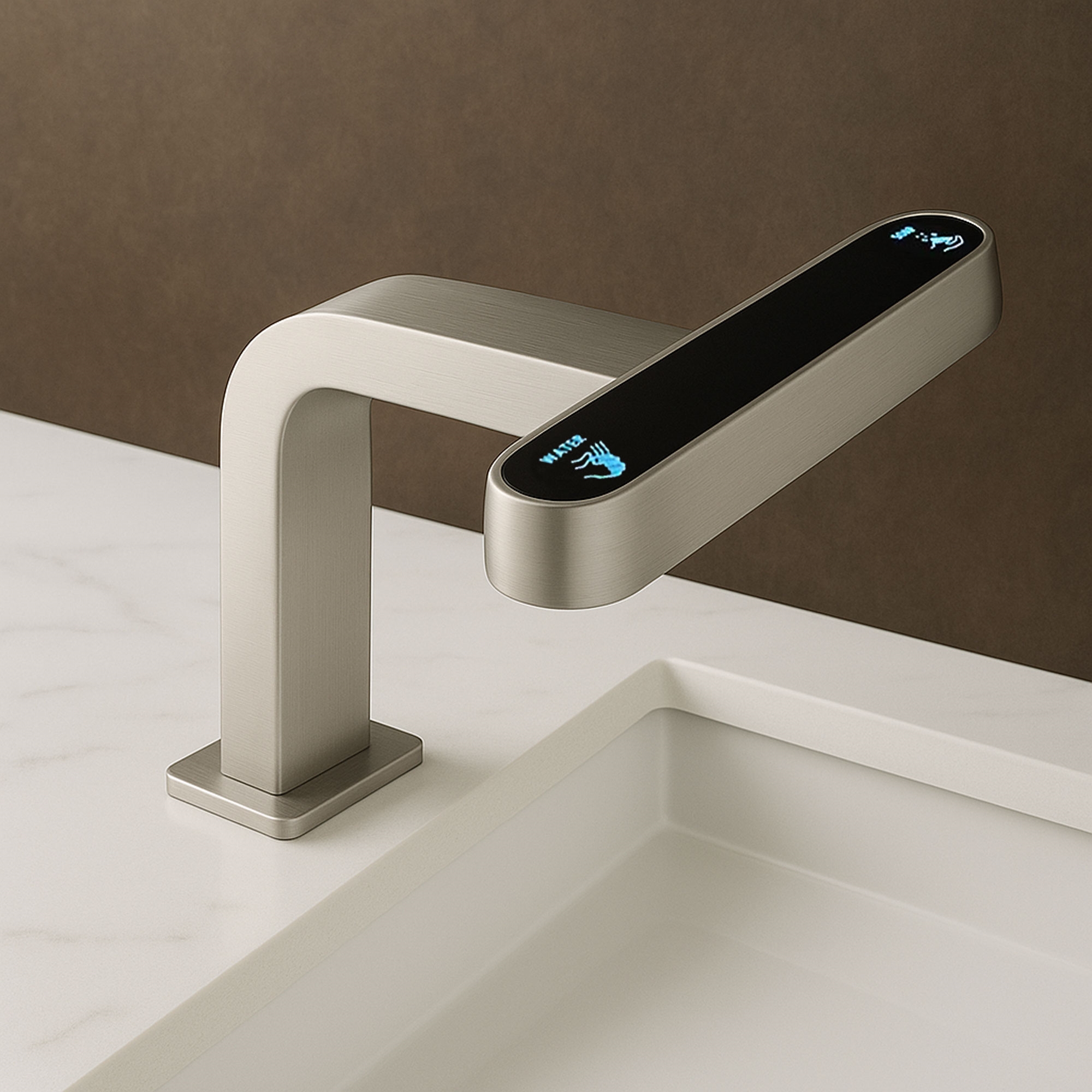

Hospitality and Public Restrooms
For wall and deck installations alike, coordinate soap
availability with cleaning rounds and event-driven demand.
Evaluate whether staff can replenish a wall housing or an
under-counter reservoir within the available service window.
-
Inspect before expected arrival or event peaks.
-
Keep refill containers compatible across the designated
equipment group.
-
Assess the effect of one unavailable station on the
remaining wash area.
Review Public Wash-Station Coordination →
Clinical and Staff Handwashing Areas
Specify either mounting type around the approved hand-hygiene
product and refill protocol. Coordinate accessible wall
surfaces or under-counter storage with the clinical cleaning
plan, and assign responsibility for checking each
dispensing point.
-
Obtain approval for the exact dispenser and soap combination.
-
Keep refill practice and cleaning instructions together.
-
Record faults and corrective action through the facility’s
maintenance process.
Explore Healthcare Wash-Station Planning →
AEC Closeout
Leave a Serviceable Installation and a Usable Record
The handover package should connect each installed dispensing
point to its approved consumable, accepted settings and maintenance
procedure. Keep substitutions traceable so a later purchasing
change does not silently alter the commissioned assembly.
-
Architectural record:
installed location, wall or deck mounting detail, approach
and service clearance.
-
Equipment record:
exact model, pump, reservoir, power supply and replacement references.
-
Acceptance record:
test method, observed results, adjustments and completed
corrective work.
-
Operational record:
approved soap, cleaning method, refill responsibility and
staff training.
|
|
|
