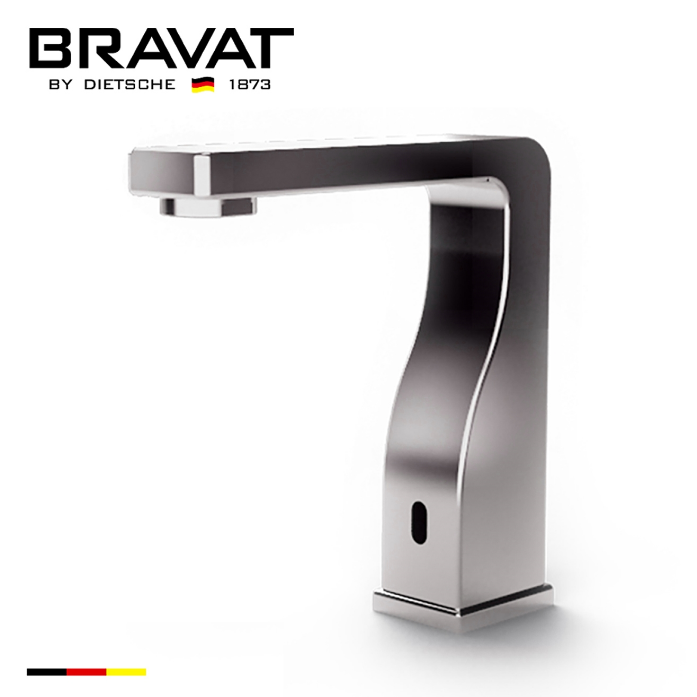

Bravat Commercial Brushed Nickel Automatic Hands-Free Sensor Faucets
Bravat Commercial Automatic Hands-Free Faucet is engineered to provide hygienic, touchless water delivery in commercial environments where operational efficiency and contamination control are critical facility objectives. Utilizing precision infrared sensing and commercial-duty hydraulic components, the faucet ameliorates bacterial surface transmission, excessive fixture handling, uncontrolled discharge cycles, and sanitation deficiencies. Inferior hands-free faucets commonly experience delayed activation, sensor drift, actuator burnout, moisture-related failures, and maintenance-intensive servicing that increase ownership costs and operational disruptions. The robust sensing platform maintains reliable performance under continuous occupancy conditions. Ideal for healthcare institutions, airports, hospitality properties, office complexes, and institutional restroom applications.
Bravat Commercial Automatic Hands-Free Sensor Faucets Features:
- Brand Name: Bravat
- Model Number: FS-D637B
- Materials: Solid Brass
- Finish: Brushed Nickel
- Auto Shutoff: 30-seconds (factory set, can be adjusted)
- Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
- Diameter of Inlet Pipe: DN15
- Diameter of Outlet Pipe: DN15
- Water Supply Pipe Size: DN15
- Faucet Height: 7" (178mm)
- Spout Length: 6.69" (170mm)
- Spout Height: 6.22" (158mm)
- Water Pressure: 0.05Mpa-0.7Mpa
- Power and Voltage: DC.6V / AC.220V - 50/60Hz
- Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
- Power Consumption: 0.5MW
- Detection Zone: Factory Set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1-45°C/33.8-113°F
- Degree of Protection by Enclosure: 1P56
- Battery: 4x'AA' size cells
- Operational Water Pressure Range: 0.05-0.6MPa
- Flow Rate: Available Flow Rate From 0.5 to
- BIM Touchless Faucet File: This touchless restroom faucet is available in Revit Family & BIM Object File for easy specifications.
- Usage: Commercial

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
 Touchless Faucet BIM File
 Specification Sheet
Installation Instructions
Repair & Maintenance Guide
Product Detail Brochure
3D Product Rendering
Installation Detail Video
5-Year Product Warranty
|
|
|
|
|
|
|
