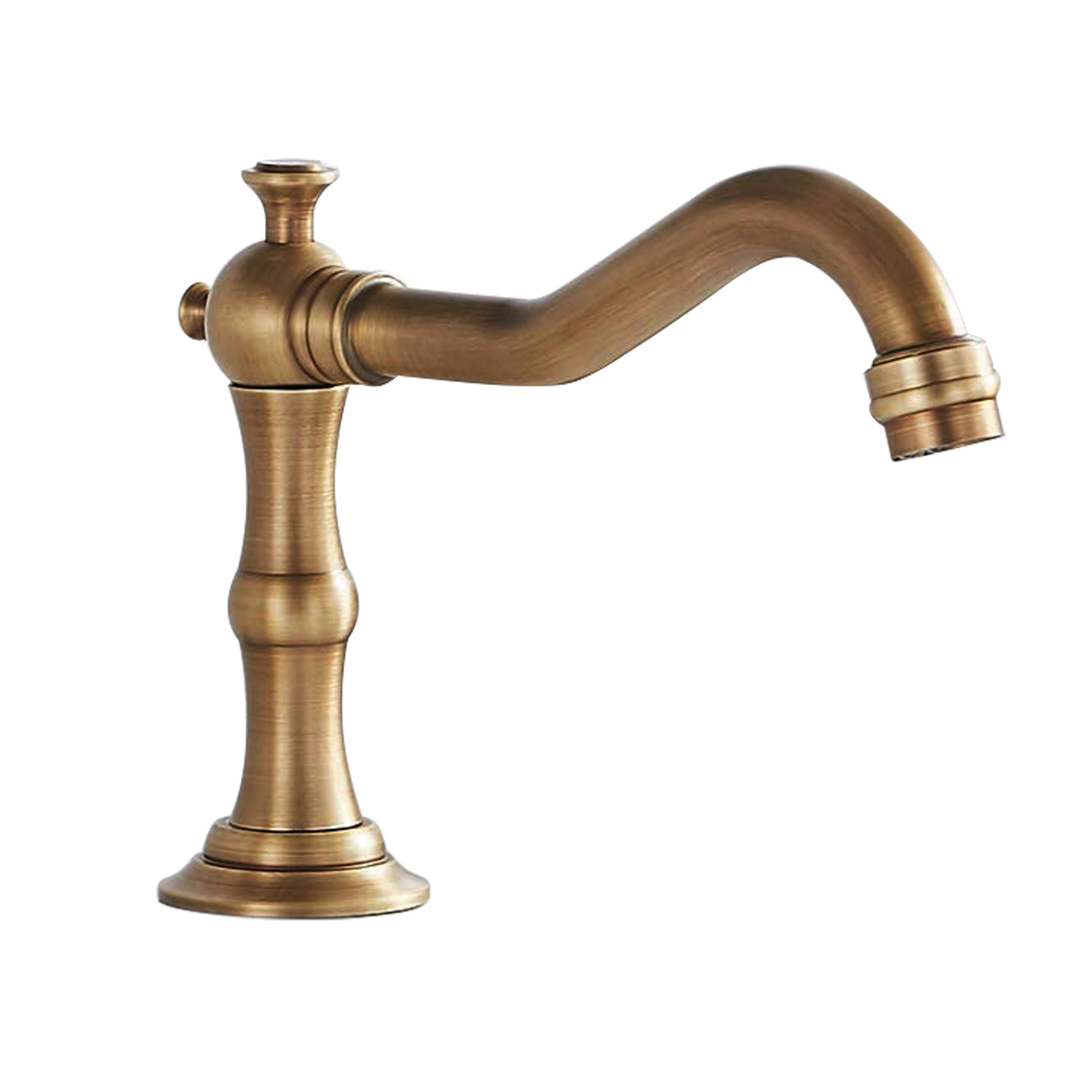

Fontana Commercial Antique Brass Automatic Sensor Faucet
The Fontana FS-509-AQ Commercial Automatic Sensor Faucet combines hands-free water activation with an Antique Brass finish for high-use commercial restroom applications. Designed for hospitality, government, institutional, executive, and architecturally coordinated facilities, the faucet provides automatic activation and shut-off with AC/DC power options and commercial-grade construction.
For project specification, verify sensor technology, detection range, flow rate, operating water pressure, power configuration, basin compatibility, mounting requirements, accessibility, and service access against the current FS-509-AQ technical documentation.
Fontana Commercial Antique Brass Automatic Sensor Faucet Features:
- Brand Name: FontanaShowers®
- Model Number: FS-509-AQ
- Auto Shutoff: 30 Seconds (Factory set, can be adjusted)
- Operating Water Pressure: 0.05-0.7 MPa
- Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
- Power Options: AC/DC
- Battery Type: 4 x 'AA' size cells
- Diameter of Inlet Pipe: DN15
- Diameter of Outlet Pipe: DN15
- US Standard Water Supply Pipe Size: DN15 (G1/2")
- Faucet Height: 7.87" (200mm)
- Spout Length: 4.13" (105mm)
- Power: DC.6V
- Ambient Temperature: 1-45°/33.8-113°F
- Degree of Protection by Enclosure: 1P56
- Flow Rate: 0.5 GPM (1.9 L/min)
- BIM Touchless Faucet File: This Touchless faucet available in BIM for easy specifications
- Usage: Commercial
