You are here: Home > How to Install Fontana Sierra Temp-Control Bathroom Faucet

How to install Fontana Sierra Commercial Automatic Temperature Control Bathroom Faucet | FS9828


Easy step by steps installation instructions for Commercial Sensor Faucet
Visit Product Page
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
 sensor

Sensor Faucet Installations Instructions

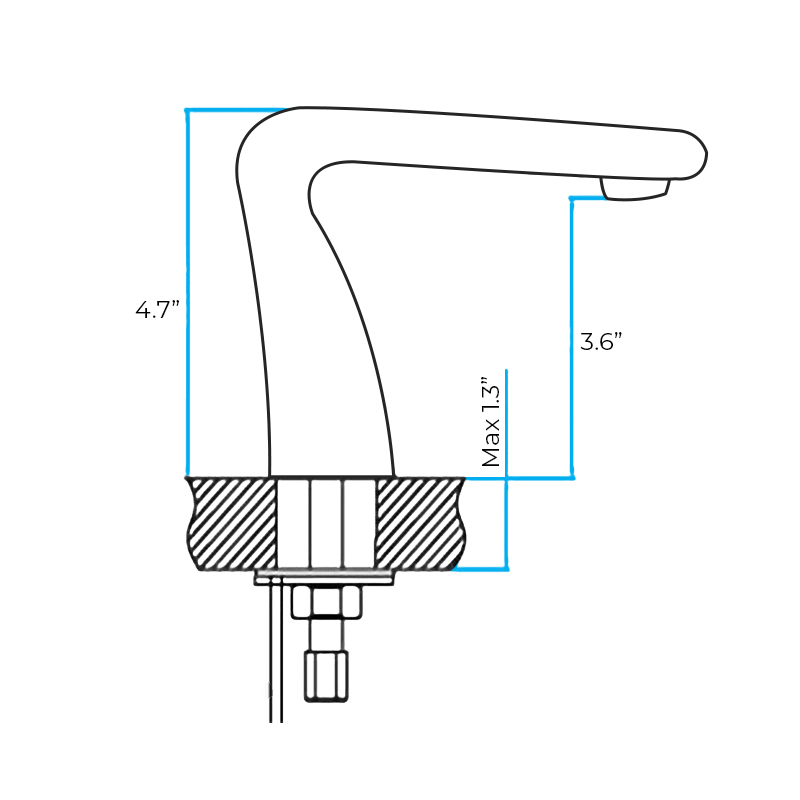

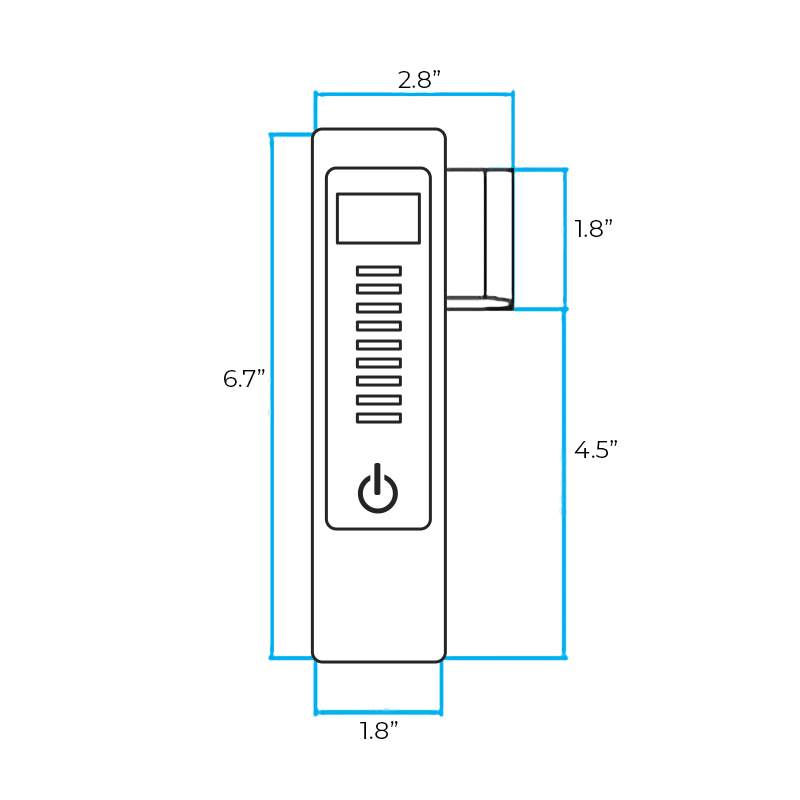

Size:

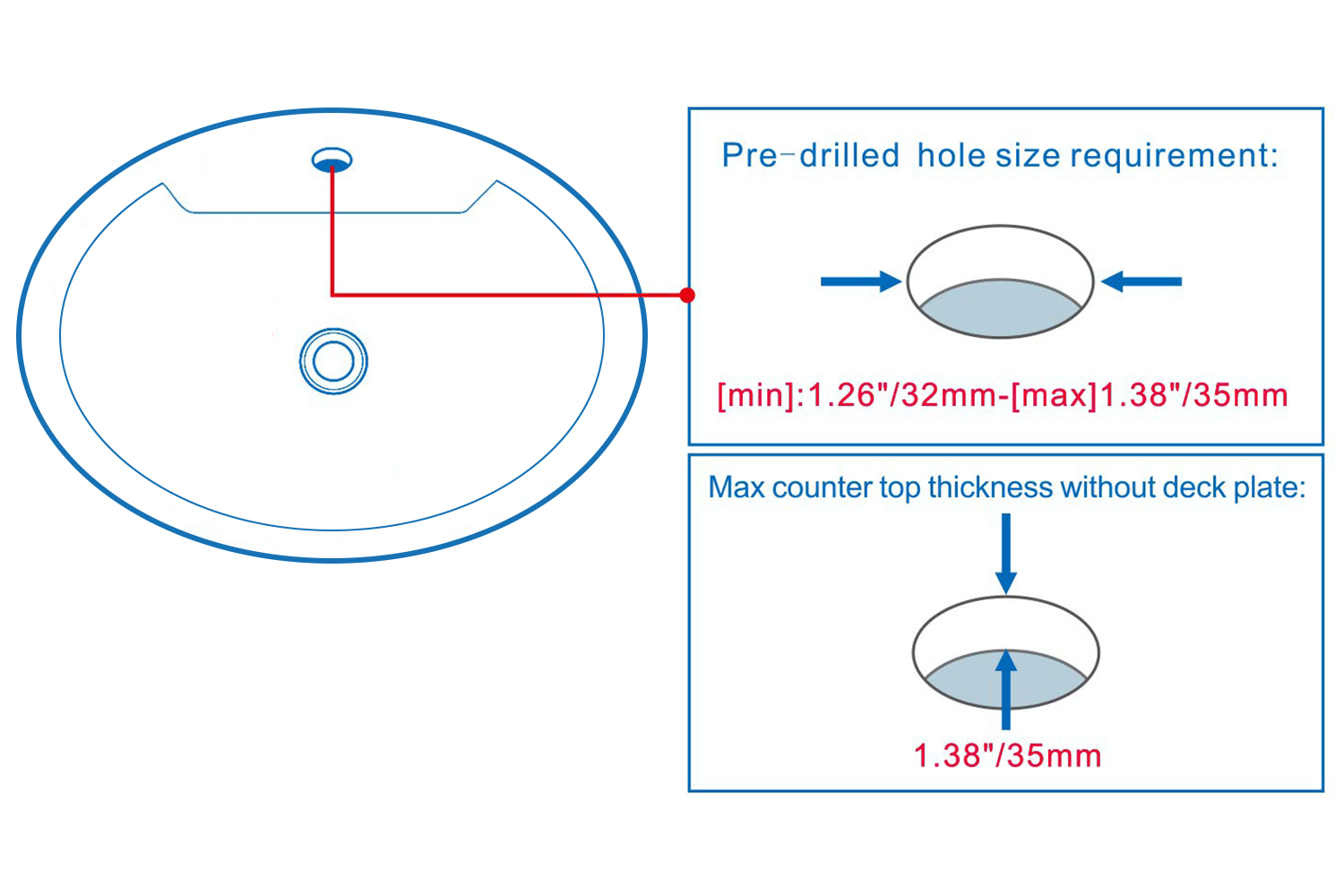

Hole Size:


Specification:

1

Power supply

DC: 6 V (4 x AA alkaline batteries)

AC: 220 V-240 V / 50 Hz or AC 110V/ 60 Hz

2

Power consumption

Static ≤ 0.3mW; Active ≤ 3W

3

Battery life

108000 flushes(4 x AA alkaline batteries)

4

Sensor field

05-35 cm (adjustable)

5

Water pressure

0.05~0.8 MPa

6

Ambient temperature

0~55°C

8

Working life

350000~400000 times

9

Sensor time

<1 Sec

10

Closing time

<2 Sec

11

Low voltage indication

3.9 V (The light will flash twice each two seconds)

12

Self shut off time

65-70 Sec (Non-stop flushing)




Deck Mount Installation
