How to install Bravat Commercial Deck Mount Chrome Automatic Motion Sensor Faucet | FS-201L

Easy step by steps installation instructions for Sensor Faucet		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

Size		Parts
	sensor

Step 1:		Step 2:
	sensor

Step 3:		Step 4:


Step 5:		Step 6:


Step 7:		Step 8: (Correct way for Hose)


Step 9:

1. Before installation, please make sure the power is turned off. 2. When connecting the control line and power line according to the arrow, please note the male and female to prevent the circuit board from burning out, because of the incorrect connection. 3. Be sure the washer installed to prevent impurities into the water valve to avoid leakage. 4. Overtime protection: Continuous induction water for more than 60 seconds, it will stop automatically. 5. When abnormal (No Induction but water out etc.), hold down the reset switch on the sensor box 3 seconds then release (When press the reset switch the sensor does not action), the control circuit repower, return to normal.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

Specifications Flow pressure: min. 0.5 bar - recommended 1 – 5 bar Operating pressure: max. 10 bar Test pressure: 16 bar Flow rate at 3 bar flow pressure for basin: ≥ 12 L/min Hot water inlet temperature: max. 80°C Recommended (energy saving): 60°C Environment temperature: 5°C ~ 45°C Power: Dc type: AA Size 1.5V Battery，4 pcs Ac type (for European standard): Input 220V, Output 6V/500mA Sensing Distance: 16-20 cm Sensing Duration: 1 second Battery Lift Time: Appr. 50,000 cycle Supply Water Pressure: 0.5-5 kgf/cm2 Ambient Temperature: 5°C - 45°C (Supply Water Temperature 5°C - 50°C) Supply Water Pipe Specification: G1/2 Non-working Power Consumption: ≤0.5 mW

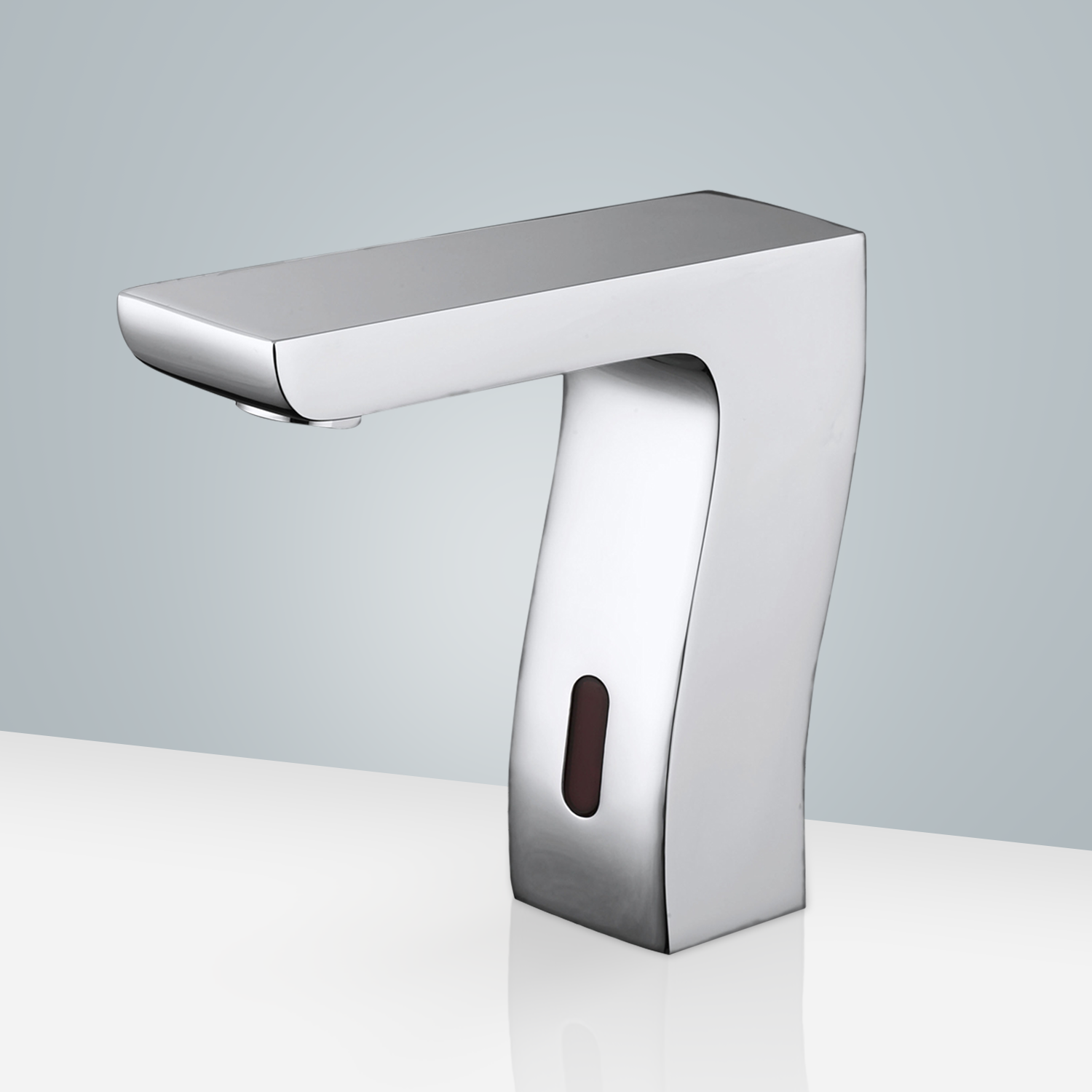

Bravat Commercial Deck Mount Chrome Automatic Motion Sensor Faucet

Bravat Commercial Deck Mount Chrome Automatic Motion Sensor Faucet can efficiently avoid bacteria mutual infections. With it's micro-computer to control its action, the faucet can self adjust it's best detection zone as per the color and shape of lavatory. There is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Can be easily installed in new or retrofit applications. Water resistant solenoid enclosure. Sensor faucet complete motion detection operation. Sensitive Sensor with Infrared AI Smart-Chip. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing.

Features:

Visit Product Page

Brand Name: Fontana
Model Number: FS-201L
Battery Type: 4xAA Alkaline Batteries (purchase separately)
Power Supply: AC110V And DC6V (batteries not included)
Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
Auto Shutoff: 30 seconds (Factory set, can be adjusted)
Diameter of Inlet Pipe: DN15
Diameter of Outlet Pipe: DN15
Water Supply Pipe Size: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V/AC.220V-50/60Hz
Power Consumption: 0.5MW
Detection Zone: 25cm/10" (Factory set, based on standard inductive board)
Ambient Temperature: 1-45°C/33.8-113°F
Degree of Protection by Enclosure: 1P56
Operational Water Pressure Range: 0.05-0.6MPa
Usage: Commercial/Residential
