How to install Bravat Commercial Automatic Hands Free Aqua Motion Sensor Faucet | FS-D649C

Easy step by steps installation instructions for Bravat Commercial Automatic Aqua Motion Sensor Faucets		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions


Step 1:		Step 2: (Hot & Cold Connection)
	sensor


Step 3:		Step 4:


Step 5:		Step 6: Hot & Cold Regulator


Step 7:		Step 8: (Correct way for Hose)

1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws. 3. Install the control box to the wall and fix it with screws. 4. Add the rubber washer and screw supply elbow to the control box. 5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin. 6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts. 7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 8. Turn the faucet on for 1 minute to flush any debris.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

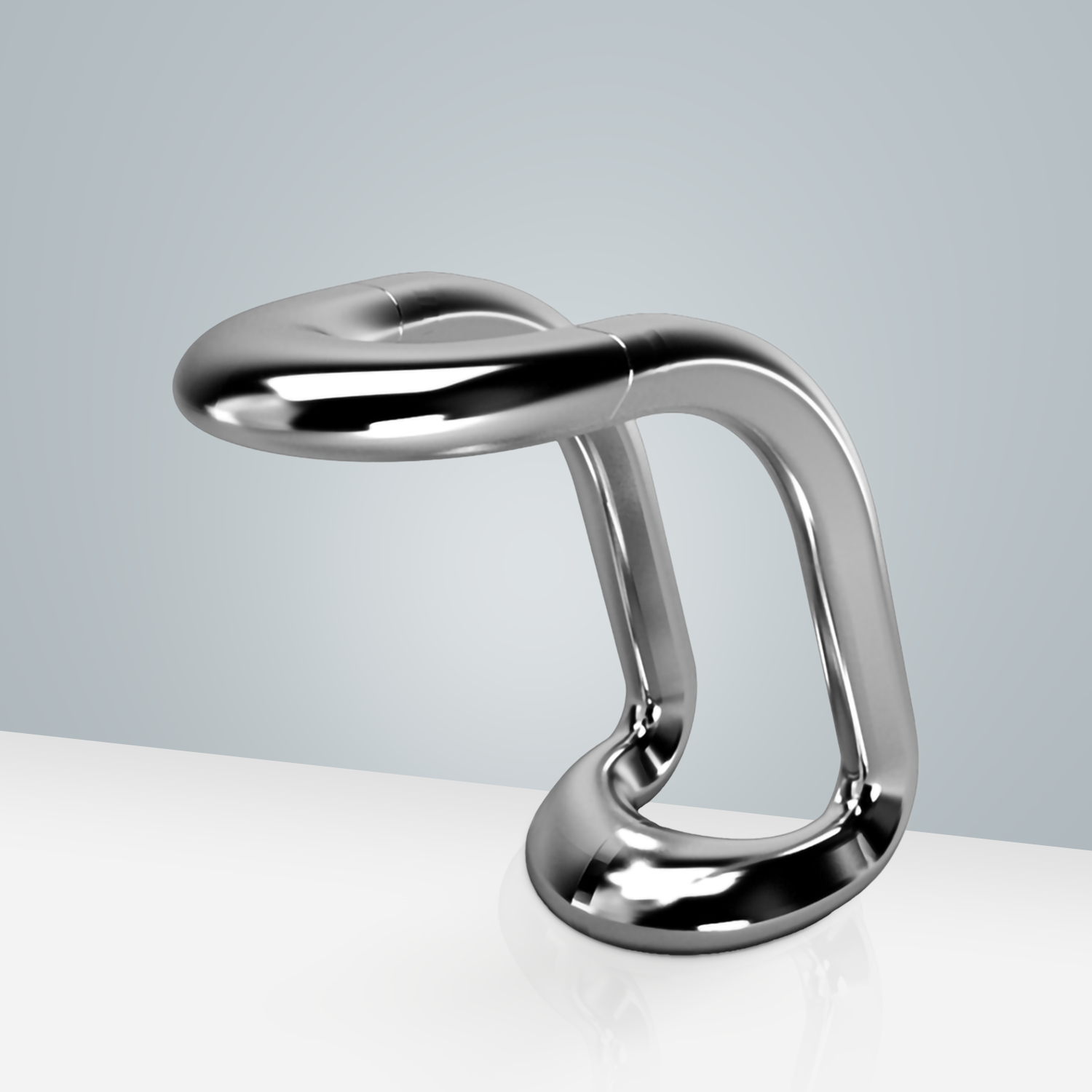

Bravat Commercial Automatic Hands Free Aqua Motion Sensor Faucet

Our modern design Bravat Aqua Motion Sensor faucet is a blend of style and durability. Its double-arm unique shape and polished chrome color adds style to your bathrooms. Its intelligent motion detection and longer battery life saves you both precious water and energy. Our customers have highly appreciated this splendid addition to our portfolio. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all US Standard plumbing. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow. Sensor faucet complete motion detection operation. Sensitive Sensor with Infrared AI Smart-Chip.

Features:

Visit Product Page

Brand Name: Bravat
Model Number: FS-D649C
Materials: Solid Brass
Finish: Polished Chrome
Auto Shutoff: 30-seconds (factory set, can be adjusted)
Water Pressure: 0.5-7.0 KGS/cm,10-125 psi
Diameter of Inlet Pipe: DN15
Diameter of Outlet Pipe: DN15
Water Supply Pipe Size: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V / AC.220V - 50/60Hz
Power Supply: AC110V And DC6V (batteries not included)
Power Consumption: 0.5MW
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1-45 °C/33.8-113°F
Degree of Protection by Enclosure: 1P56
Battery: 4 x 'AA' size cells
Operational Water Pressure Range: 0.05 - 0.6MPa
Usage: Commercial
