How to install Fontana Brushed Nickel Commercial Temperature Control Automatic Sensor Faucet With Built-In Mixing Valve | FS5125B

Easy step by steps installation instructions for Commercial Sensor Faucet		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

Size:

Features: - Cold and Hot integration. It is a mixer with the cold water in the left turning and hot water in the right turning. - Water saving: Water flows out when your hands approach the induction zone, and stop immediately once you draw back your hands. - Low power,electricity-saving: For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day. Specification: - Installation Type: Deck Mounted - Installation Holes: One Hole - Valve Type: Ceramic Valve - Suitable Water Pressure: 0.3-1.2 MPa - Temperature of environment:1-45°C (cold & hot water ) - Electric Power: DC Dry Battery - Dia of inlet pipe: G1/2" - Dia of outlet pipe: G1/2" - Power: DC6V (4AA Alkaline batteries) - Power consumption in static: <0.5 mW - Detection Zone: Factory set 30cm - Protection degree: IP56 Smart infrared sensor automatically adjusts the distance according to the environment.


Step 1: Battery Box		Step 2:
	sensor


Step 3:		Step 4:



Step 5:		Step 6: Correct way for Hose

Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Ensure the ‘O’ ring is in place at the bottom of the mixer body. Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer. CAUTION: Do not over tighten the nut/bolts as this may damage the basin. Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only. Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe. Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together. Battery installation and replacement The unit is supplied with a battery backup. Should the mixer will still not function then the batteries may need replacing. Before installing the mixer fit the supplied batteries as follows. Unscrew the grub screw on the back of the mixer (do not remove) unscrew and remove the cover from the mixer and pull out the battery pack. Undo the screw on the top of the battery pack and remove the lid. Insert the 4 batteries. Place the battery pack back into the mixer, replace the cover and tighten the grub screw.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

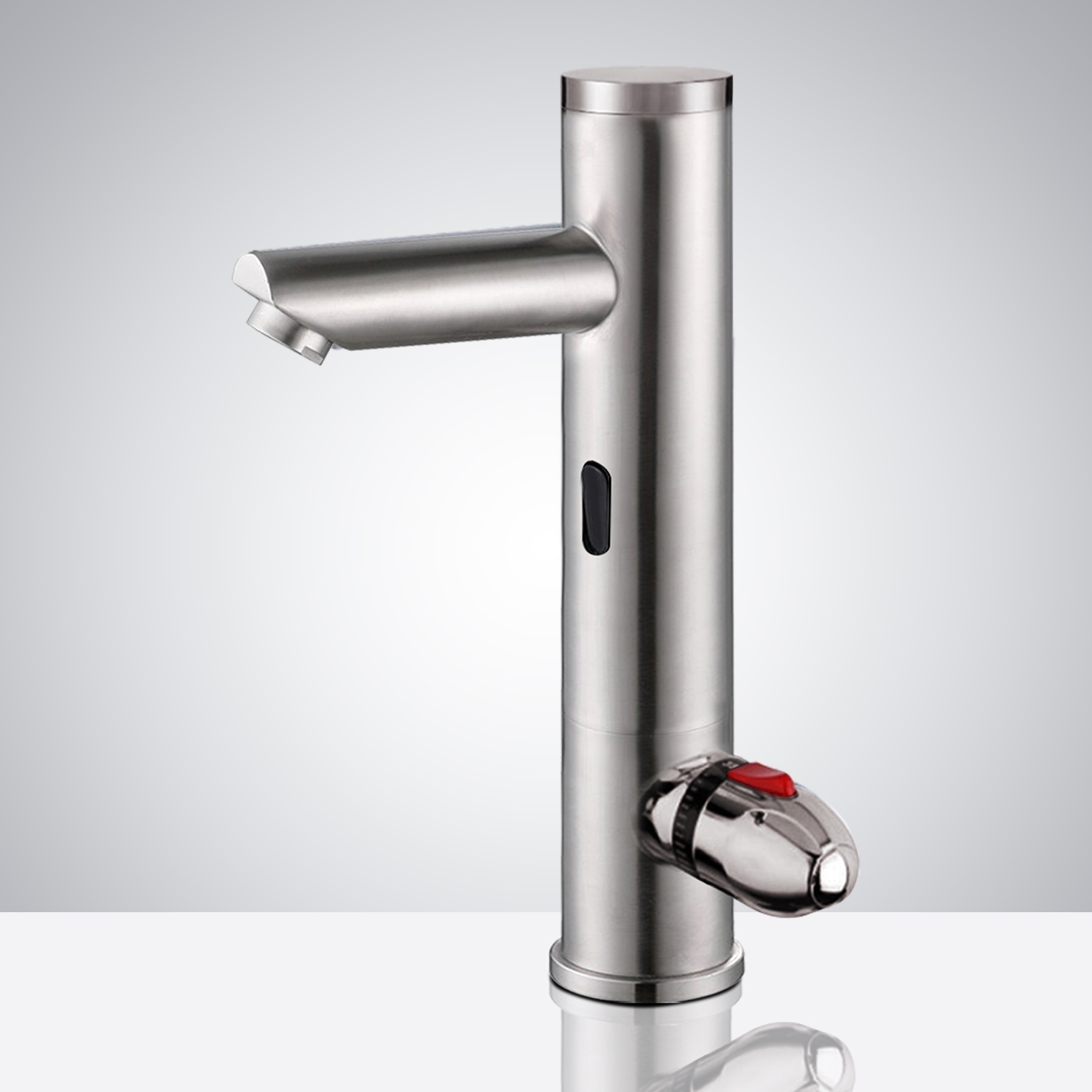

Fontana Brushed Nickel Commercial Temperature Control Automatic Sensor Faucet With Built-In Mixing Valve

This Automatic Sensor Faucet comes with thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, and creating the desired temperature at the point of use. This automatic sensor faucet is available in brushed nickel finish. The faucet features an integrated above counter mixer built into the faucet body, a 2-8 inch sensor range, and built-in brass solenoid. Maintenance for this sensor faucet is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent water waste. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US Standard plumbing.

Features:	Visit Product Page
Brand Name: Fontana Model Number: FS5125B Water Pressure: 0.05Mpa - 0.7Mpa Surface Treatment: Brushed Finish: Brushed Nickel Construction: Solid Brass Power Supply: DC.6V Batteries Included: Not Mounting Type: Deck Mount Body Material: Brass Usage: Commercial / Residential
