How to install Fontana Milan Chrome Commercial Automatic Motion Sensor Faucet | FS6108E

Installation Instructions for Florenza Chrome Commercial Automatic Motion Sensor Faucet		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

Step 1:		Step 2:
	sensor

Step 3:		Step 4:


Step 5: (Hot & Cold Connection)		Step 6:


Step 7:		Step 8: Hot & Cold Regulator

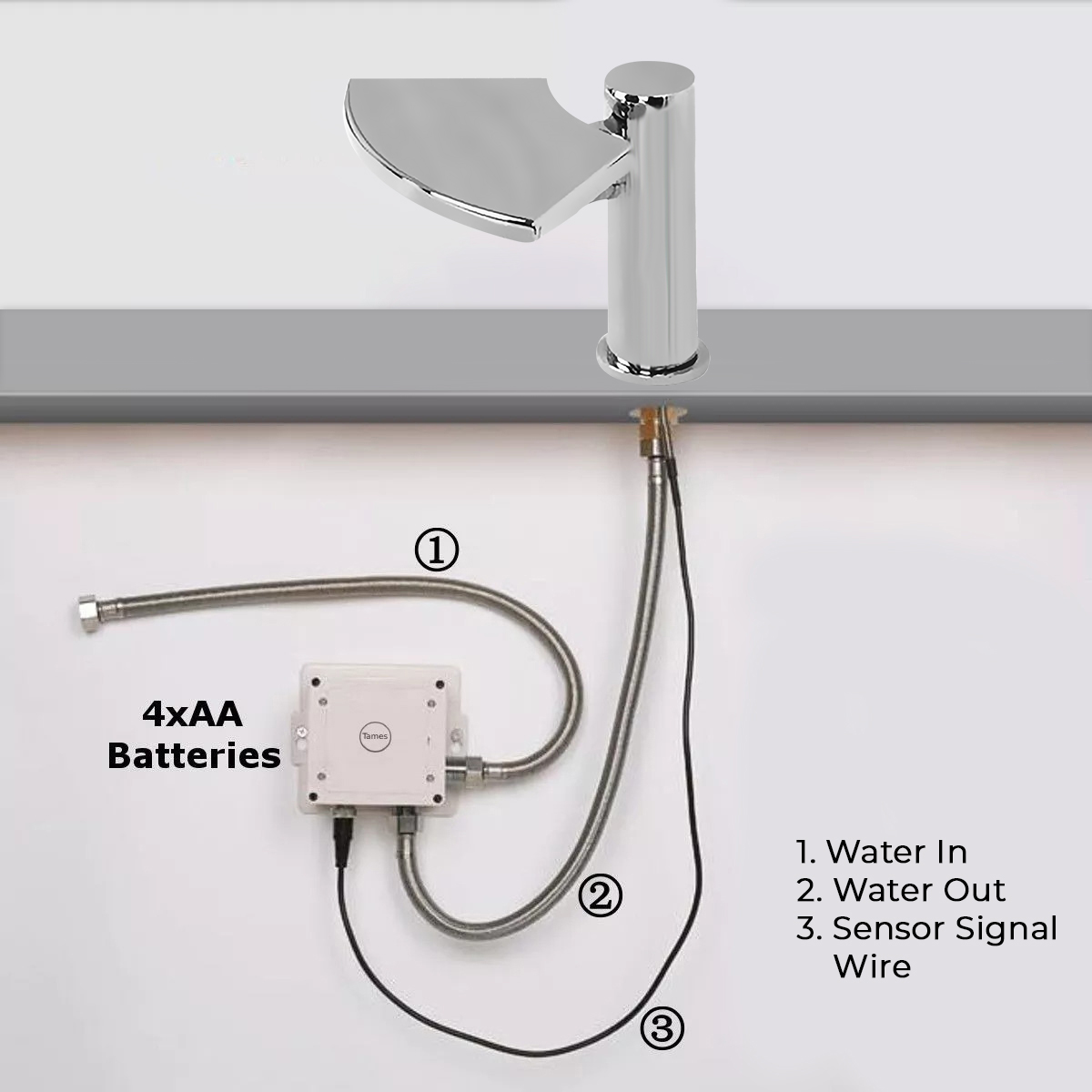

1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body.

2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws.

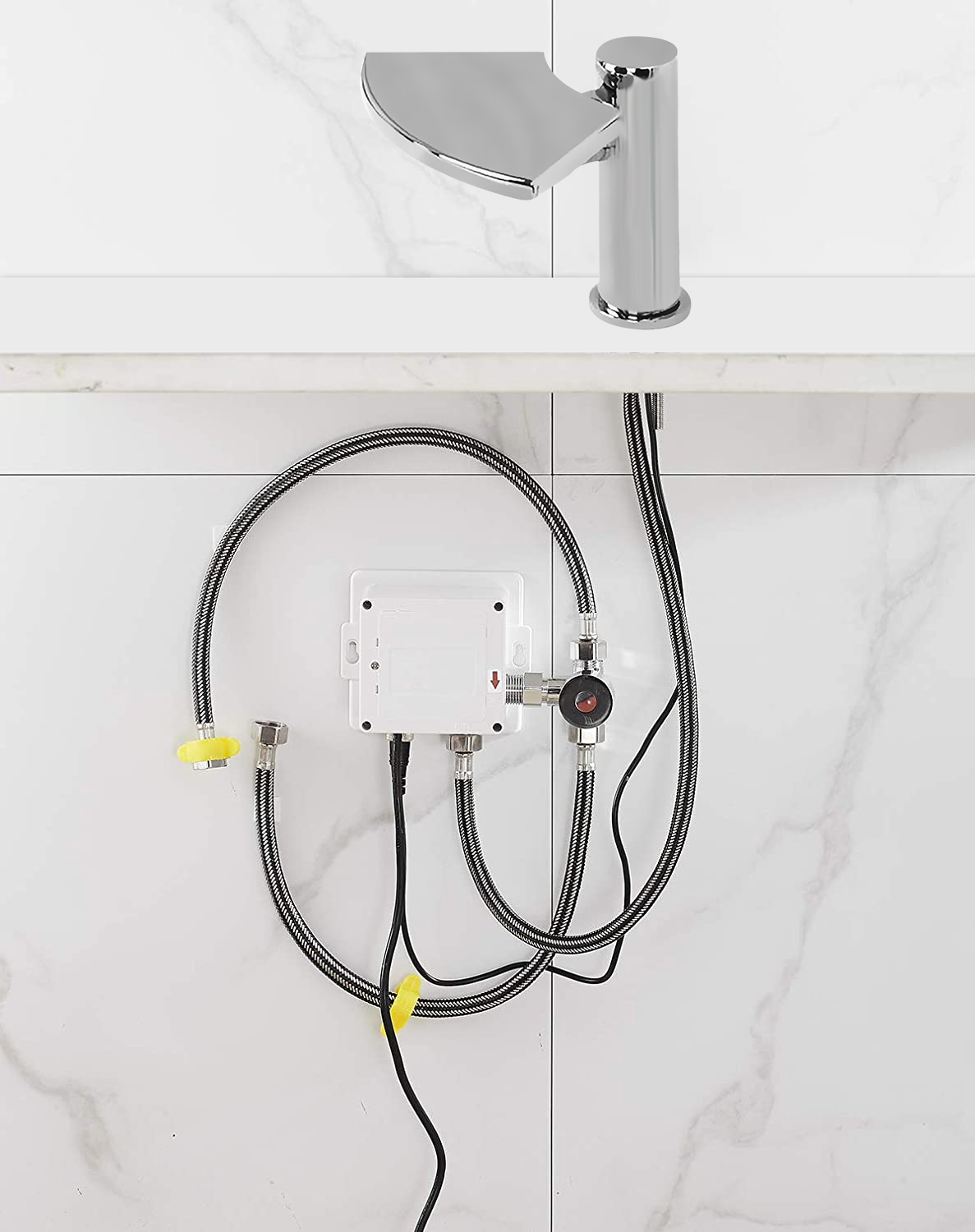

3. Install the control box to the wall and fix it with screws.

4. Add the rubber washer and screw supply elbow to the control box.

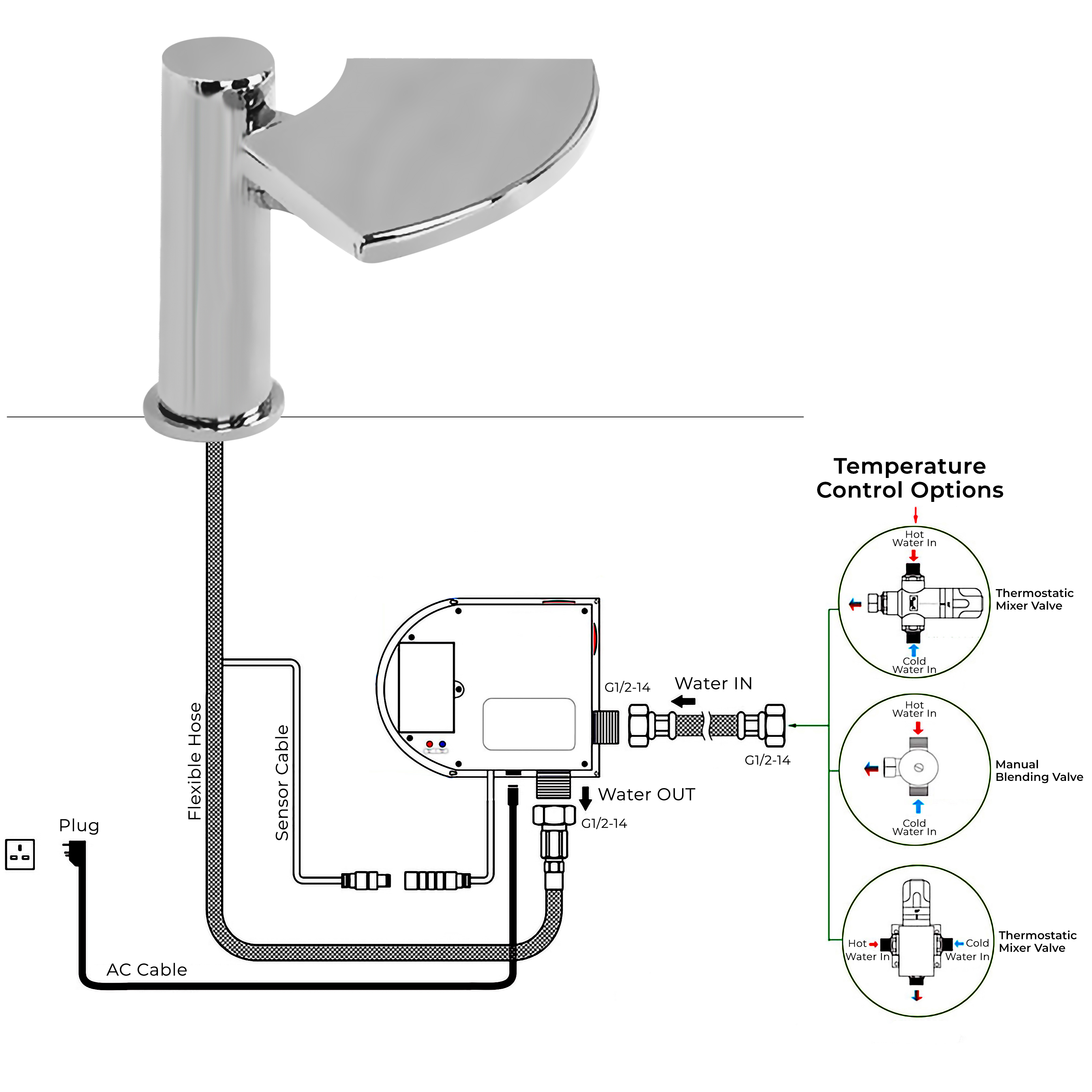

5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin.

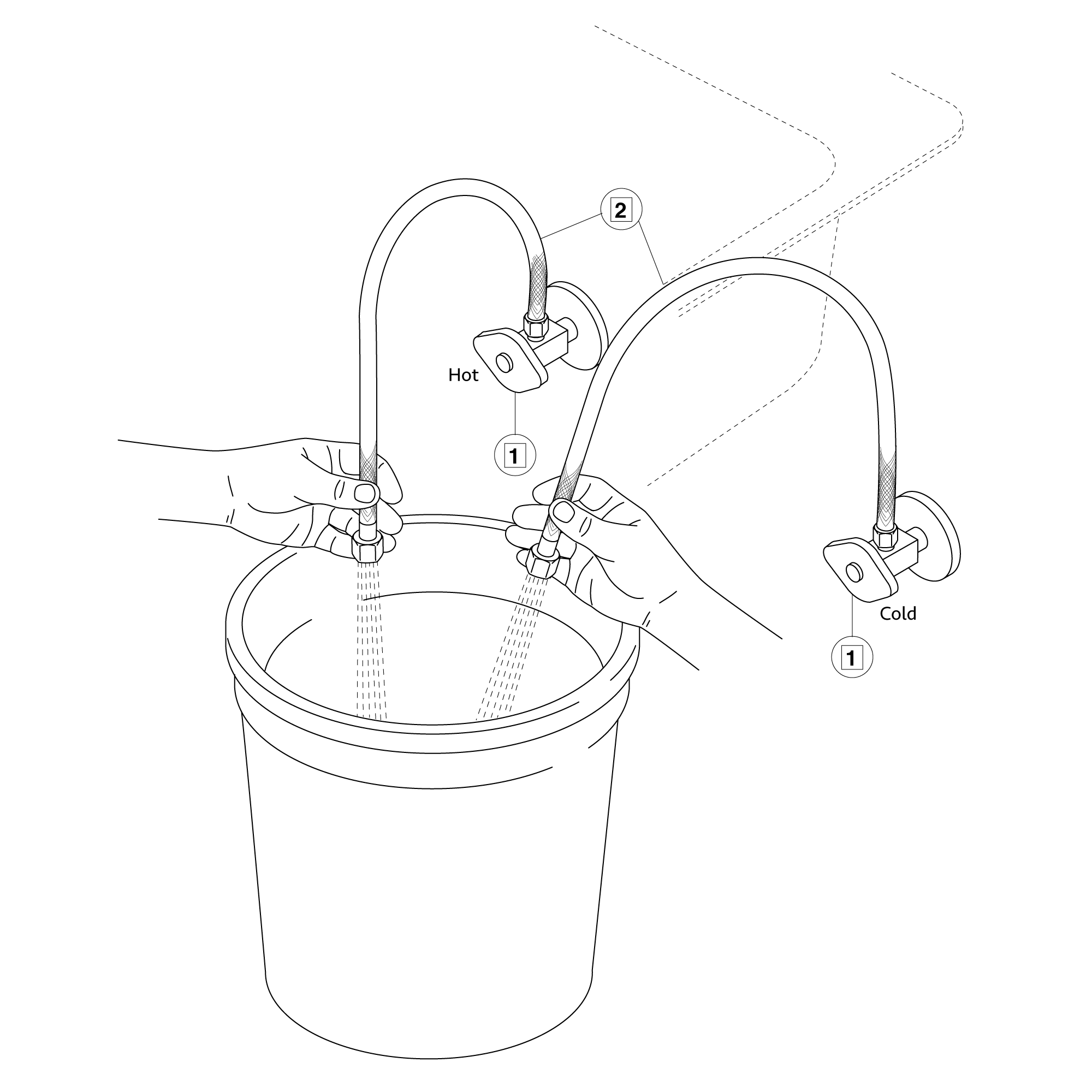

6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts.

7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).

8. Turn the faucet on for 1 minute to flush any debris.

Fontana Milan Chrome Commercial Automatic Motion Sensor Faucet

Meet our Milan Chrome Motion Sensor Faucet. Stable sensor,better quality, highest standard. Stability: the infra-red sensor emission adopts constant current circuit. The transmitter signal is stable even when the battery voltage changes. Automatic: it incorporates microcomputer control, and features anti-ultraviolet rays and automatic time-out shut off. Water saving: automatic shut-off water saving flow control. Hygienic: faucet readily activated by the human hand entering the sensor zone rather than being directly under the faucet. Energy saving: battery powered, operates on 4 x AA alkaline batteries, which last over 100.000 flushes. Be sure, when it comes to new Bathroom Faucet, we are offering shape, finish and styles you're looking for. Fits all US standard plumbing. It comes complete with mounting accessories and installation instructions. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.

Features:

Visit Product Page

Brand Name: Fontana
Model Number: FS6108E
Surface Treatment: Polished
Water Pressure: 0.05-0.6MPa
Surface Finish: Chrome
Faucet Mount: Single Hole
Style: Contemporary
Chrome Plating: 24/48 Hours Salt Spray Test
Operating Temperature: 0.1-50
Installation Type: Deck Mount
Power Supply: DC & AC
Sensing Distance: 6.2-12.4" or adjustable
Inductive Opening Time: < 1 second
Inductive Closing Time: < 2 second
Usage: Commercial/Residential
