Conto Automatic Hands-Free Faucet Oil Rubbed Bronze
The Conto Bathroom sensor faucet is an eye catching design with efficient functionality. The Oil Rubbed Bronze finish will compliment any rustic or nature aesthetic. Made with anti-erosion, anti-abrasion and high strength materials, the Conto sensor faucet is built to last.
Built-in Infrared AI Smart-Chip, No Water Dripping Design. 100% Touch-free operation. Fits all standard US plumbing,
Sensor Faucet Features
- Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
Sensor Tap Advantage
- Conserves water
- Saves energy during the water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- Perfect for individuals with disabilities, the product is designed to be in accordance with ADA (Americans with Disabilities Act) guidelines.
- Vandal resistant
- Waterproof Components
- Fit for commercial use applications.
- Motion touchless sensor operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 7.5 -101.5 psi (0.05 - 0.7MPa
- Solid Brass Construction, Matte Black Finish
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- ADA Compliant
- Can be installed easily in new or upgraded retrofit commercial bathrooms.
- Usage: Commercial

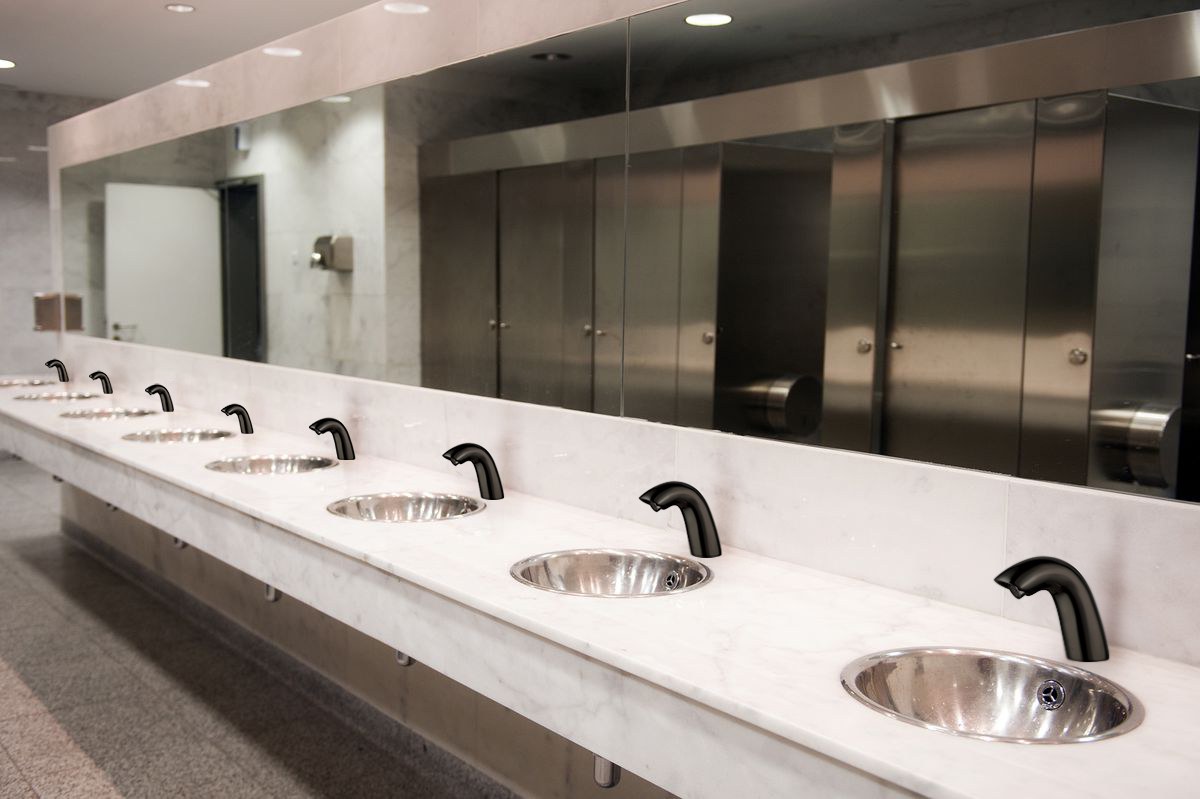

- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
|
|
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
Sensor Faucet Specification:
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6/ AC.110-220V - 50/60Hz
-
Detection Zone:
Factory set 25cm(based on standard inductive board)
-
Degree of protection by enclosure:
1P56
-
Operational water pressure range:
0.05 - 0.6MPa
-
Battery:
4 x 'AA' size cells
-
US standard water supply pipe size:
DN15 (G1/2")
-
Sensing distance: 4-11.8in (10-30cm)
-
Time delay:
0.5 seconds
-
Operation duration:
power will automatically cut off after continuous use for 60 seconds
-
Color:
Matte Black
|
|
|
|
|
|
|
|
|
|
|
|
|
