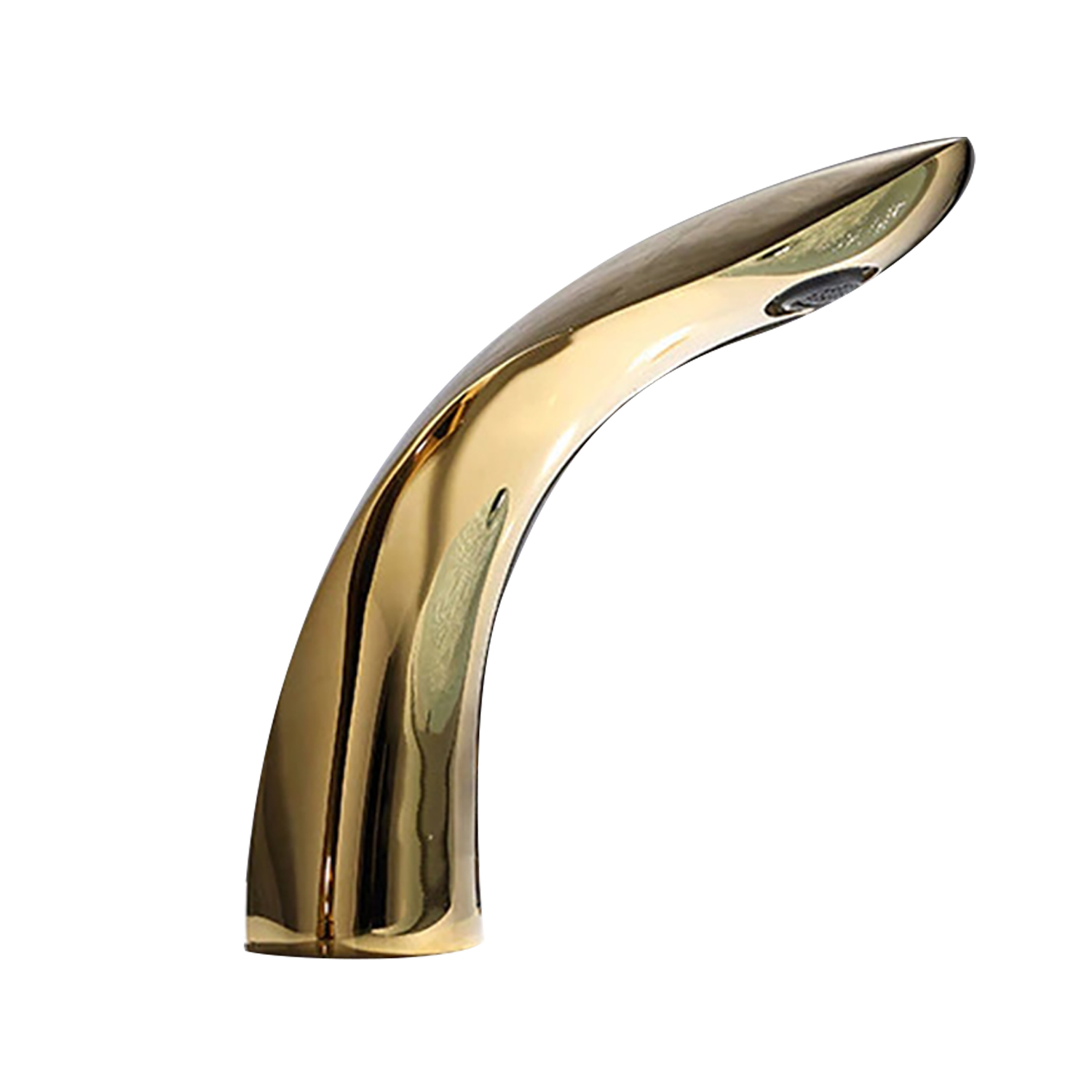

Infection-control performance begins at the point where users interact with the water system. The Hospital Gold Touchless Automatic Faucet applies infrared sensing and automatic valve actuation to remove routine manual contact from the handwashing sequence. Its commercial-grade brass construction provides a structurally robust platform for repetitive service in hospitals, laboratories, clinics, and institutional washrooms. From an engineering perspective, touch-free activation reduces dependence on mechanical user controls while automatic shutoff limits uncontrolled fixture runtime. Specification teams can evaluate installation requirements against ASME/CSA plumbing fitting standards and applicable ADA Standards for Accessible Design when integrating the faucet into accessible commercial lavatories.
Hydraulically and electronically, the fixture is suited to projects where repeatable activation, controlled discharge, and dependable shutoff are more important than conventional handle operation. Sensor-controlled cycling helps reduce unnecessary water delivery between handwashing events while limiting wear associated with manually operated components. For healthcare specifications, engineers should coordinate supply pressure, temperature-control strategy, sensor positioning, power accessibility, aerator selection, and service clearances with the complete lavatory assembly rather than evaluating the faucet independently. Water-efficiency objectives may be benchmarked against EPA WaterSense lavatory-faucet performance criteria, while accessibility planning should consider ADA requirements governing faucet controls, clear floor space, lavatory height, and protected piping beneath accessible sinks.
Gold Touchless Automatic Hospital Sink Faucet Features:
-
Brand Name:
FontanaShowers®
-
Product Code:
FS-1097GLDDP2
-
Fixture Type:
Commercial Automatic Touchless Sensor Faucet
-
Activation:
Infrared Hands-Free Sensor
-
Style:
Contemporary
-
Finish:
Gold
-
Material:
Commercial-Grade Brass
-
Faucet Mount:
Single Hole
-
Installation Type:
Deck Mounted
-
Power Supply:
AC / DC 6V
-
Sensor Detection Range:
16–32 cm, Adjustable
-
Sensor Opening Time:
< 1 Second
-
Sensor Closing Time:
< 2 Seconds
-
Flow Rate:
1.2 GPM / 4.5 LPM
-
Factory Default Timeout:
30 Seconds
-
Water Connection:
G1/2"
-
Temperature Mixing:
Below-Deck Manual Mixing Valve
-
Automatic Shutoff:
Yes
-
Sensor Technology:
Self-Adapting Sensor
-
Integrated Water Shutoff:
Yes
-
Hygienic Line Flush:
Yes
-
Accessibility:
ADA Compliant
-
BIM / Revit Support:
Available for Project Specification
-
Application:
Hospitals and Healthcare Facilities
-
Warranty:
5-Year Product Warranty
