Infrared reflectance sensing establishes the primary control input for the Lima Commercial Chrome Automatic Sink Faucet, translating user presence within the detection field into electronically governed hydraulic actuation without mechanical handle engagement. The sensing circuit coordinates with the solenoid-controlled waterway to initiate flow and execute automatic closure when detection terminates, supporting repeatable operating cycles under commercial restroom demand. Brass fixture construction provides structural stability for recurring pressure loading, while the chrome surface supports corrosion resistance in intensive service environments. Plumbing engineers may reference applicable
ASME, ANSI, and ASTM frameworks when evaluating materials, dimensional requirements, installation criteria, and plumbing-system performance.
Electronic sensing, solenoid response, supply pressure, discharge control, and automatic shutoff logic function as an integrated electromechanical system rather than independent fixture components. The Lima faucet is engineered for repetitive activation cycles where predictable valve sequencing and controlled water delivery are essential to minimizing unnecessary run time and maintaining consistent lavatory operation across multi-fixture installations. Handle-free activation also removes mechanical user input from each operating cycle, reducing contact with the fixture interface. Water-efficiency strategies can be evaluated against relevant
EPA WaterSense criteria, while ASPE resources support plumbing-system coordination, fixture specification, commissioning, and commercial design evaluation.

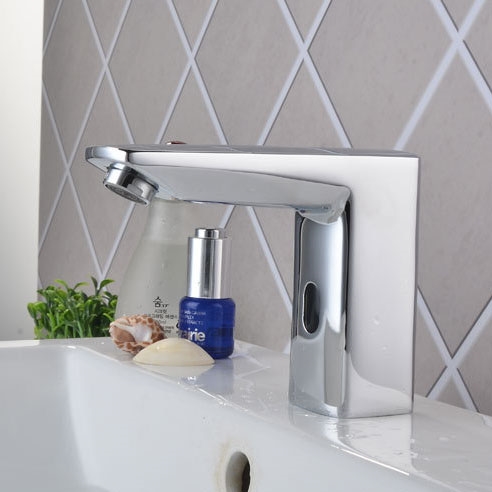

Fontana Lima Commercial Chrome Automatic Sensor Sink Faucet Features:
-
Brand:
FontanaTouchlessFaucets®
-
Collection:
Lima
-
Model:
FS9584
-
Fixture Type:
Commercial Automatic Sensor Lavatory Faucet
-
Activation:
Touchless Infrared Sensor
-
Installation Type:
Deck Mount
-
Mounting Configuration:
Single Hole
-
Mounting Diameter:
Ø32 mm
-
Material:
Brass
-
Finish:
Polished Chrome
-
Handle Configuration:
Handle-Free Automatic Operation
-
Working Water Pressure:
7.25–101.5 PSI (0.05–0.7 MPa)
-
Sensor Detection Range:
4–11.8 in (10–30 cm)
-
Sensor Detection Time:
<0.6 Second
-
Maximum Continuous Run Time:
60 Seconds (Default)
-
Average Static Power Consumption:
<50 µA
-
Instant Dynamic Power Consumption:
<2.5 W
-
Water Inlet Connection:
G1/2"
-
Water Outlet Connection:
G1/2"
-
Ambient Operating Temperature:
34–104°F (1–40°C)
-
Water Temperature Range:
32–149°F (0–65°C)
-
Operation:
Automatic Sensor Activation and Shutoff
-
BIM / Revit File:
Available for architectural and engineering specification
-
Recommended Applications:
Commercial Restrooms, Public Lavatories, Airports, Healthcare, Hospitality, Institutional and High-Traffic Facilities
